116 Keys Washable Industrial Keyboard With Touchpad Adjustable Backlight

China 116 Keys Washable Industrial Keyboard With Touchpad Adjustable Backlight supplier

Large Image :  116 Keys Washable Industrial Keyboard With Touchpad Adjustable Backlight

Product Details:

Place of Origin: Shenzhen,China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68
Model Number: K-TEK-M360TP-KP-FN-BL-DT-DWP

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Packaging Details: Each keyboard to one box,several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance. or 50% deposit in advance, the rest 50% to be paid before delivery.
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Language: German (any Other Customized) Material: Super Stainless Steel
PS2/USB: Yes Direct Washable: Yes
Color: Original Keys: 116

116 Keys Washable Vandal Proof industrial Touch Pad Keyboard Desk Top in IP68 Standard



DESCRIPTION:



116 keys compact format IP68 dynamic water proof & vandal proof stainless steel industrial keyboard with individual durable and robust polymer keys with full keyboard functionalities, totally sealed and ruggedized industrial PCB with carbon-on-gold key switch technology with long stroke 1.50mm with extremely good tactile feeling for fast and accurate data input without any noise, function keys F1, F2, ...F23, F20 are on the top line for easy operation, individual numeric keypad integrated, with integrated IP65 sealed and ruggedized tough touchpad for fast and accurate cursor position, one complete silicone rubber alone the rear stainless steel plate for easy mounting & sealing tightly with cabinet. High quality scratch-proof durable black titanium electroplated on the top stainless steel plate optional, movable desktop version, which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc. Adjustable backlight included (RED, BLUE, WHITE etc.)



DIMENSIONS: 383.0mm x 167.0mm x 20.0mm (L x W x H)



Special Features:

1. 116 Keys Compact Format IP65 dynamic Vandal Proof Stainless steel marine keyboard with full

    keyboard functionalities, with durable polymer keys

2. with sealed & ruggedized touchpad with scroll function (optional) for fast and accurate cursor position

3. function keys F1, F2..F10, F11, F12...F19,F20 are on the top line for easy operation

4. numeric keypad (optional PINPAD with Encryption Electronics Controller supporting DES/TDES)

5.  PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good

     tactile feeling for fast and accurate data input without any noise

6. movable stand alone desk top version, or mountable desktop with mounting holes on the

    bottoms for fixing

7. good for outdoor application with direct rain and very harsh environments with humidity, much

    dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

8. USB/PS2

9. CE, FCC, ROHS

10. any language layout avaialble

11. Marine application



MECHANICAL DATA:

Actuator/keys:
  • 116 keys, super quality SUS304 brushed stainless steel
Key top style:
  • Durable polymer keys
Key Size:
  • 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
Key travel:
  • 2.0mm long stroke.
Actuation Force:



0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point)

1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)





Switch life:



more than 10 million of operations.



Stainless Steel Housing:



1.20mm thickness super quality brushed stainless steel.



Dimensions:



383.0mm x 167.0mm x 20.0mm (L x W x H)



G.W.:



3.00KGs

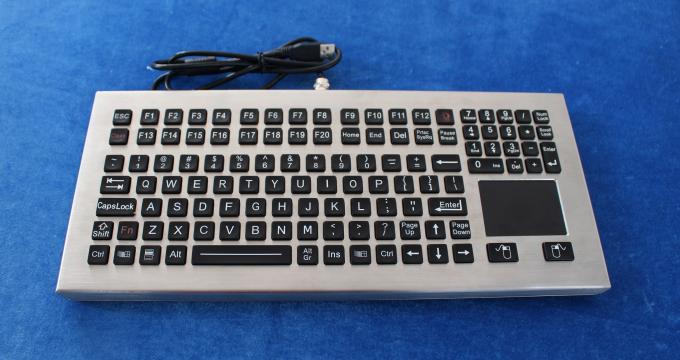

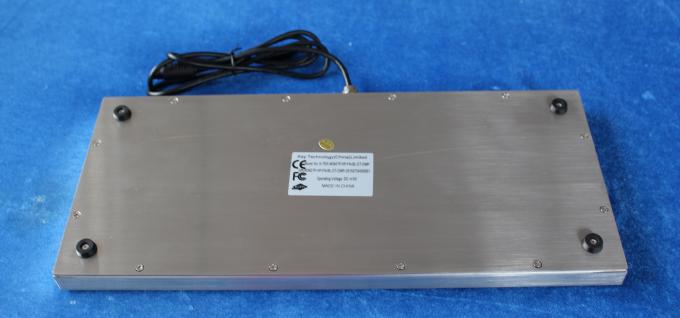

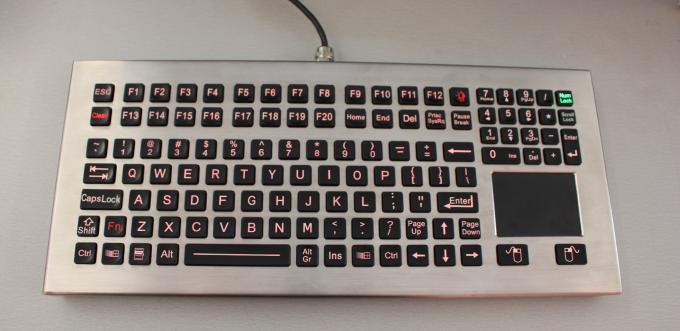

More View:



116 Keys Washable Industrial Keyboard With Touchpad Adjustable Backlight

116 Keys Washable Industrial Keyboard With Touchpad Adjustable Backlight

116 Keys Washable Industrial Keyboard With Touchpad Adjustable Backlight



APPLICATION
• This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

MAIN FEATURE
• The keyboard can be dynamic washable with water and other liquids, it can work well even under water with
2.0mm depth after 8 hours dynamic water proof testing.
• The full keyboard can be locked/disabled via FN + Clean combination keys for easy cleaning without needing
to take the keyboard away from PC.
• Durable and scratch-proof black titanium electroplated stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
• Waterproof execution according to IP68 protection from top panel and other sides without including the bottom side, rear stainless steel plate and sealing gasket with mounting holes or easy tightly mounting to enclosure or panel.
• An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation.
• Any keyboard layouts are available, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
• Polymer keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
• Ease of customizing with multiple languages, to accommodate foreign or custom variants.
• Complete electronic modules including controller in close consultation with our customers are available.
• PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver.

MECHANICAL DATA
• Actuator/keys: 116 keys, durable and robust polymer keys.
• Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
• Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
• Key travel: 1.50mm
• Actuation Force: 0.60 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.20 N+/-0.10N for key 14.0mm x 28.0mm (pressure point)
• Switch life: more than 10 million of operations.
• Front Plate: 1.5mm thickness super quality brushed stainless steel
• Back Plate:1.5mm thickness super quality brushed stainless steel
• Touchpad: sealed and ruggedized tough touchpad.
Touchpad cover: Composite
More than Lifetime 10 million strokes
Mutual Capacitance sensing
X/Y position sensing resolution: 40 counts/mm
X/Y position reporting: Relative
Output (self-detectable depending on cable): PS2 or USB
Tracking speed: Maximum 1,016 m/sec
Power supply voltage: 5VDC ± 0.25V
Current rating (active mode): 17 mA
• G.W.: 1.50KGs
• Dimensions: 383.0mm x 167.0mm x 20.0mm (front panel)

ELECTRICAL DATA
• Supply Voltage: +5V DC +/-5%
• Current Rating: appr. 30mA
• EMC Standard: It is compliance with the council IEC 61000-4-2:2008;
• IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004
• EMI: EN 55022: 2010
• EMS: EN 55024:2010
• Lifespan > 5 years
• Switch Contact Material: Carbon-on-Gold key switch technology PCB.
• Interface: PS2, USB available,
• OS: All windows, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY
• Operating temperature:-20oC to +60oC
• Storage temperature: -30oC to +70oC
• Operating RH: 30-90%
• Atmospheric pressure: 60-106Kpa.
• Saline mist: 96 hours, IEC 60512-6
• Damp heat test at + 40oC: 21 days, IEC 60512-6
• Dry heat test at + 85oC: 10 days, IEC 60512-6

RELIABILITY
• RoHS Compliant, CE and FCC, ESD
• Protection Level: IP68 without including the bottom side
• Vandal resistant IK09
• Key Lifespan >10 million actuation.
• MTBF >50000H
• MTTR <30min

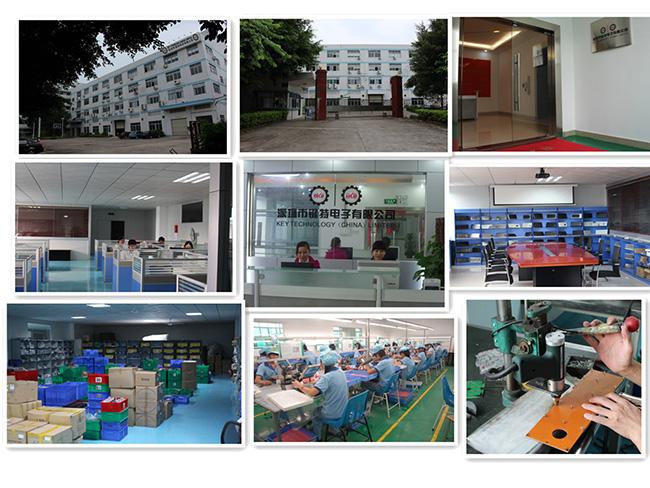

Our Factory:
