IP67 Industrial Custom Membrane Keyboard With Omron Switch Optical Trackball

China IP67 Industrial Custom Membrane Keyboard With Omron Switch Optical Trackball supplier
IP67 Industrial Custom Membrane Keyboard With Omron Switch Optical Trackball supplier IP67 Industrial Custom Membrane Keyboard With Omron Switch Optical Trackball supplier IP67 Industrial Custom Membrane Keyboard With Omron Switch Optical Trackball supplier

Large Image :  IP67 Industrial Custom Membrane Keyboard With Omron Switch Optical Trackball

Product Details:

Place of Origin: Shenzhen,China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68
Model Number: K-TEK-D410-OTB-KP-FN-SW

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: To be quoted
Packaging Details: Each keyboard to one box,several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance. or 50% deposit in advance, the rest 50% to be paid before delivery.
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Material: Membrane Keys: 108
G.W.: 1.5KG Resolution: 800 DPI
Layout: Any Customized Language Mounting: Front Panel Mounting

IP67 Industrial Membrane Keyboard With Omron Switch Optical Trackball

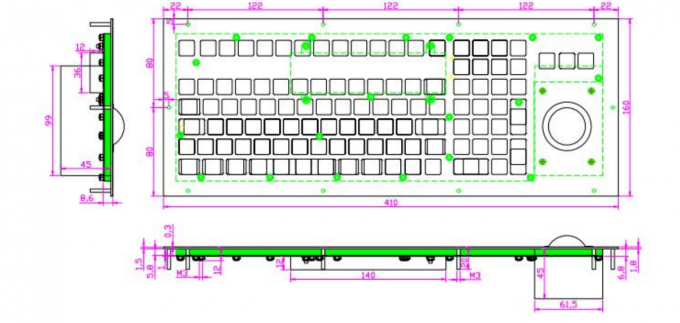

Dimensions: 410.0 mm x 160.0 mm (front panel)



Description:



108 keys IP67 dynamic rated membrane industrial keyboard with full keyboard functionalities with integrated numeric keypad
and function keys on the upper line, IP68 dynamic rated washable 38.0mm optical trackball module with 800 DPI resolutions
for fast and accurate cursor position,totally sealed and ruggedized industrial PCB with OMRON switch technology with short
stroke 0.45mm with extremely good tactile feeling for reliable data input, with FN+LOCK combination key for easy cleaning via
lock/disable the entire keyboard without needing to take the keyboard from PC, surface mounted extremely flush with
anti-microbial functionalities, the fonts printed on the film underneath will never fade, durable and scratch-proof polyester
withstand to most chemicals and liquids under the harshest environments,ruggedized and backed with 1.50 mm brushed
stainless steel plate, top panel mounted.



IP67 Industrial Custom Membrane Keyboard With Omron Switch Optical Trackball

MECHANICAL DATA:
Number of Keys: 108
Key switch Technology: OMRON switch technology with short stroke 0.45 mm for stable and accurate data input.
Actuation Force: 1.4 N+/-0.1 N for key 13.0 mm x 13.0 mm (press point)
Key Travel: 0.45 mm
Key switch Lifetime: 1 mil. operations
Protection Level: IP67
Mounting Type: Top panel mounting
Operating Temperature: -20 °C to +60 °C
Colors: 2 (white, black)
G.W.: 1.50 KG
Key Dimensions (print area): 13.0 mm x 13.0 mm




TRACKBALL:
38mm stainless steel ball or hardened resin ball.
Resolution: 800DPI
Lifetime: more than 10 million cycle
Power supply voltage: 5 V DC ±0.25V
Current rating (active mode): 800mA

ELECTRICAL DATA:
Supply Voltage: +5V DC +/- 5%
Current Rating: appr. 100mA
EMC Standard:EN 55032:2015; EN 55035:2017
Lifespan> 5 years
Interface: PS2, USB available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

RELIABILITY
RoHS, CE and FCC
Protection Level: IP67
Key Lifespan >1 million actuations
Trackball lifespan > 10 million of times
MTBF >20000H
MTTR <30min


IP67 Industrial Custom Membrane Keyboard With Omron Switch Optical Trackball

IP67 Industrial Custom Membrane Keyboard With Omron Switch Optical Trackball

IP67 Industrial Custom Membrane Keyboard With Omron Switch Optical TrackballIP67 Industrial Custom Membrane Keyboard With Omron Switch Optical Trackball
