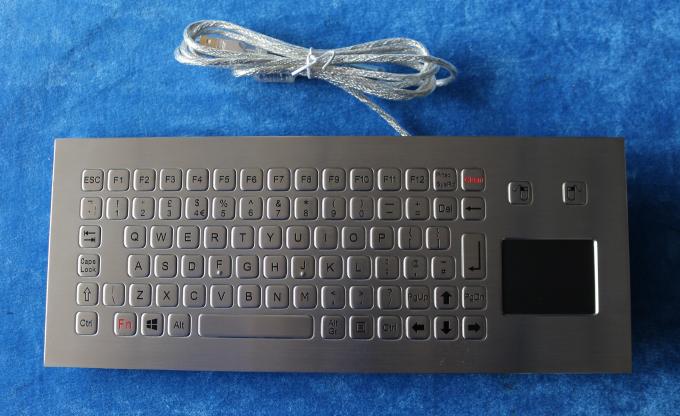

85 Keys IP67 Washable Kiosk Keyboard with Integrated Touchpad
1. 85 Keys Compact Format IP67 dynamic washable Vandal Proof Stainless Steel industrial Keyboard
2. IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position,
3. Industrial metal PCB with gold-on-gold key switch technology with short stroke 0.45mm for stable and
accurate input without any noise.
4. One complete silicone rubber along the underneath of stainless steel top plate for
easy mounting & sealing tightly with cabinet,
5. 2 mouse buttons designed for right & left clicking, function keys F1,F2..F10, F11, F12 are on the top panel for easy operation.
6. Stainless steel top plate with threaded bolts for top panel mounting solution.
7. Adjustable industrial backlight optional. (Blue, Red, White colors etc. optional).
8. The keyboard is good for outdoor application with direct rain and very harsh environments with humidity,much dynamic water,
oil, dirt, salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion.
Actuator/keys: 85 keys, super quality SUS304 brushed stainless steel
Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are
Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
Key travel: 0.45mm
Actuation Force: 3.2N+/-0.1N for key 14.0mm x 14.0mm (pressure point) , 4.0N+/-0.1N for key 14.0mm x 28.0mm
Switch life: more than 1 million of operations.
Front Plate: 1.5mm thickness super quality brushed stainless steel
Back Plate:3.0mm thickness brushed & oxidized aluminium
Touchpad: sealed and ruggedized tough touchpad.
Touchpad cover: Composite
More than Lifetime 10 million strokes
Mutual Capacitance sensing
X/Y position sensing resolution: 40 counts/mm
X/Y position reporting: Relative
Output (self-detectable depending on cable): PS2 or USB
Tracking speed: Maximum 1,016 m/sec
Power supply voltage: 5 VDC ± 0.25V
Current rating (active mode): 17 mA
ELECTRICAL DATA :
||5VDC ± 0.25V
||EN 55032:2015, EN 55035:2017
||> 5 years
|Switch Contact Material:
||Gold-on-Gold key switch technology PCB
||PS2, USB available.
||All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
||-20oC to +60oC
||-30oC to +70oC
||96 hours, IEC 60512-6
|Damp heat test at + 40oC:
21 days, IEC 60512-6
|Dry heat test at + 85oC:
||10 days, IEC 60512-6
- RoHS Compliant, CE and FCC, ESD
- Protection Level: IP67
- Vandal resistant IK09
- Key Lifespan >1million actuations
- MTBF >20000H
- MTTR <30min
