Washable desktop illuminated silicone rubber industrial keyboard with touchpad

Washable desktop illuminated silicone rubber industrial keyboard with touchpad
Washable desktop illuminated silicone rubber industrial keyboard with touchpad Washable desktop illuminated silicone rubber industrial keyboard with touchpad Washable desktop illuminated silicone rubber industrial keyboard with touchpad

Large Image :  Washable desktop illuminated silicone rubber industrial keyboard with touchpad

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number: K-TEK-M390TP-KP-FN-DT-BL
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month

Washable desktop illuminated silicone rubber industrial keyboard with touchpad

Description
Color: White / Black Mouse: Ruggedized Touchpad
Mounting: Movable Desk Top Version Illumintation: Yes (red)
Interface: USB, PS2 Material: Rubber
High Light:

waterproof keyboard with touchpad



Washable desktop illuminated silicone rubber industrial keyboard with touchpad





Speical Features:



108 keys IP68 dynamic rated & ruggedized industrial silicone rubber Hygienic keyboard with full keyboard
functionalities, integrated numeric keypad, sealed & ruggedized tough touchpad for fast and accurate cursor

position, function keys (F1, F2...F11, F12) are on upper line; with industrial PCB with carbon-on-gold key switch

technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without

any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under

harsh environment, Clean key for easy cleaning via lock/disable the keyboard without needing to take away the

keyboard from PC, movable stand alone desk top version sealed & ruggedized with 5.0mm thickness aluminum

back plate with sand blasting & oxygenation surface treatment, adjustable industrial backlight included.

Military optional.



MECHANICAL DATA:



Key 108 keys
Key top style Protuberant rectangular keys with tactile feeling
Touchpad cover Composite, More than Lifetime 10 million strokes Mutual Capacitance sensing
X/Y position sensing resolution 40 counts/mm
X/Y position reporting Relative
Interface PS2 or USB
Tracking speed Maximum 1,016 m/sec
Power supply voltage 5 VDC ±0.25V
Current rating (active mode) 17 mA
Key Size 12.0mm x 13.0mm for normal keys, 23.4mm x 13.0mm for enter key, 68.0mm x 13.0mm for space bar key
Switch life more than 10 million of operations
Cable Length 2.5m
G.W. 1.50KGs
Dimensions 390.0mm x 154.0mm x 19.0mm (L x W x H)

Supply Voltage

+5V DC +/-5%

OS

All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)





Mechanical Drawing:

Washable desktop illuminated silicone rubber industrial keyboard with touchpad 0

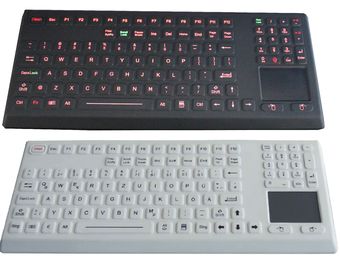

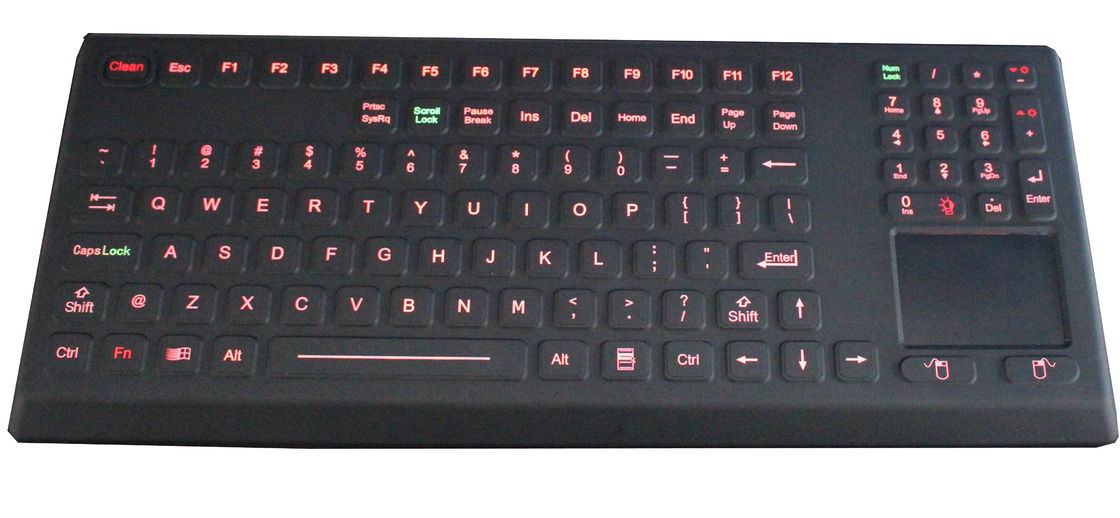

Actual Pictures:

Washable desktop illuminated silicone rubber industrial keyboard with touchpad 1Washable desktop illuminated silicone rubber industrial keyboard with touchpad 2

Washable desktop illuminated silicone rubber industrial keyboard with touchpad 3



ENVIRONMENTAL ADAPTABILITY:

  • Operating temperature:-20oC to +60oC(industrial level)
  • -40oC to +85oC(military level)
  • Storage temperature: : -30oC to +70oC (industrial level)
  • -55oC to +150oC(military level)
  • Humidity: 100%
  • Atmospheric pressure: 60-106Kpa
  • Shock: 3x11 ms pulses of 50g on each of 3 axes
  • Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
  • Flammability
  • PRINTED CIRCUIT BOARD: 94 VOSILICONE OVERLAY: 94 HBINTERFACE CABLE: 94 V


RELIABILITY:

  • RoHS , CE, FCC, ESD
  • Protection Level: IP68, NEMA 6P
  • Key Lifespan >10 million actuations
  • MTBF >50000H
  • MTTR <30min
