Stainless Steel Backlit USB Keyboard IP65 Industrial kiosk Keypad

China Stainless Steel Backlit USB Keyboard IP65 Industrial kiosk Keypad supplier
Stainless Steel Backlit USB Keyboard IP65 Industrial kiosk Keypad supplier Stainless Steel Backlit USB Keyboard IP65 Industrial kiosk Keypad supplier Stainless Steel Backlit USB Keyboard IP65 Industrial kiosk Keypad supplier Stainless Steel Backlit USB Keyboard IP65 Industrial kiosk Keypad supplier

Large Image :  Stainless Steel Backlit USB Keyboard IP65 Industrial kiosk Keypad

Product Details:

Place of Origin: Shenzhen,China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68
Model Number: K-TEK-A272-BL

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: To be quoted
Packaging Details: Each keyboard to one box,several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance. or 50% deposit in advance, the rest 50% to be paid before delivery.
Supply Ability: 3000pcs/month
Contact Now
Detailed Product Description
Keys: 64 Keys Switch Life: More Than 10 Million Of Operations
OS:: All Windows, Linux, Unix, Mac OSX Interface: PS2, USB Available
Key Travel: 2mm Dimensions: 272.0mm X 105.0mm (front Panel) , 296.0mm X 129.0mm (back Panel)



64 keys Illuminated USB industrial stainless steel PC keyboard





Special Features:





 1 .



 IP65 dynamic vandal proof stainless steel industrial kiosk keyboard



 2 .



Industrial metal PCB with carbon-on-gold key switch technology



 3 .



PS/2, USB connection plug and play with PC via PC existing OS driver, no needing of install



 4.



PS/2, USB connection plug and play with PC via PC existing OS driver, no needing of install



 5.



CE,RoHS,FCC,IP65, ESD



 6.



PS/2, USB connection plug and play with PC via PC existing OS driver, no needing of install



 7.



with long stroke (2.0mm) with extremely good tactile feeling



 8.



rear aluminium plate with mounting holes easily & tightly mounting to enclosure or panel.


Applications:


This Keyboard is mainly targeted for use for:
A: Unsupervised or semi -supervised positions of varied access applications,
B: Internet terminals and information kiosks at universities,
C: Shopping malls, hotels, airports, railway stations and other public areas,
D: Ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.




Specifications:



MECHANICAL DATA

Actuator/keys

64 keys,
2.0mm thickness super quality SUS304 brushed stainless steel bulge keys.

Key top style

protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

Key Size

14.0mm x 14.0mm for normal keys,
14.0mmx28.0mm for Enter Key
14.0mm x 100.0mm for space bar.

Key travel

2.0mm

Switch life

more than 10 million of operations

Actuation Force

0.6 0N+/-0.1N for key 14.0mm x 14.0mm (pressure point)
1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

Mounting Rack

Aluminum alloy

Front Plate

1.5mm thickness super quality brushed stainless steel

Back Plate

3.0mm thickness brushed & oxidized aluminium

G.W.

1.20KGs

Dimensions

272.0mm x 105.0mm (front panel) , 296.0mm x 129.0mm (back panel)





Actual Photos :

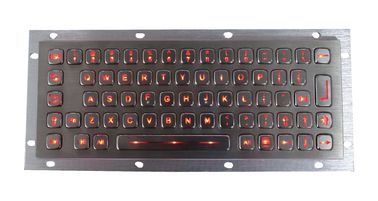

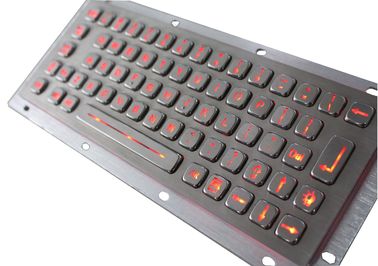

                                          Keyboard with Red Backlit  Stainless Steel Backlit USB Keyboard IP65 Industrial kiosk Keypad

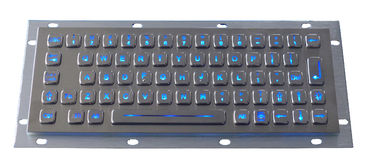

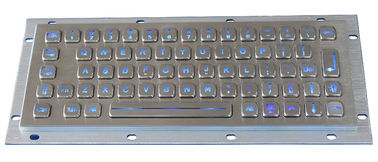

                                                   FRONT        VIEW

Stainless Steel Backlit USB Keyboard IP65 Industrial kiosk Keypad



                 Rear Panel with Mounting Holes and USB interface



Stainless Steel Backlit USB Keyboard IP65 Industrial kiosk Keypad
