Product Details:
|
| Product Name: | Hula Pointing Device | Key Travel: | 2.80mm |
|---|---|---|---|
| Interface: | USB Or PS/2 Interface | Material: | Metal |
| Key: | 2 Keys | Operating Temperature: | -20ºC~+ 65º C |
| High Light: | Force Sensing Resistor Trackball Pointing Device,Hula Trackball Pointing Device,IP65 Hula Pointing Device |
||

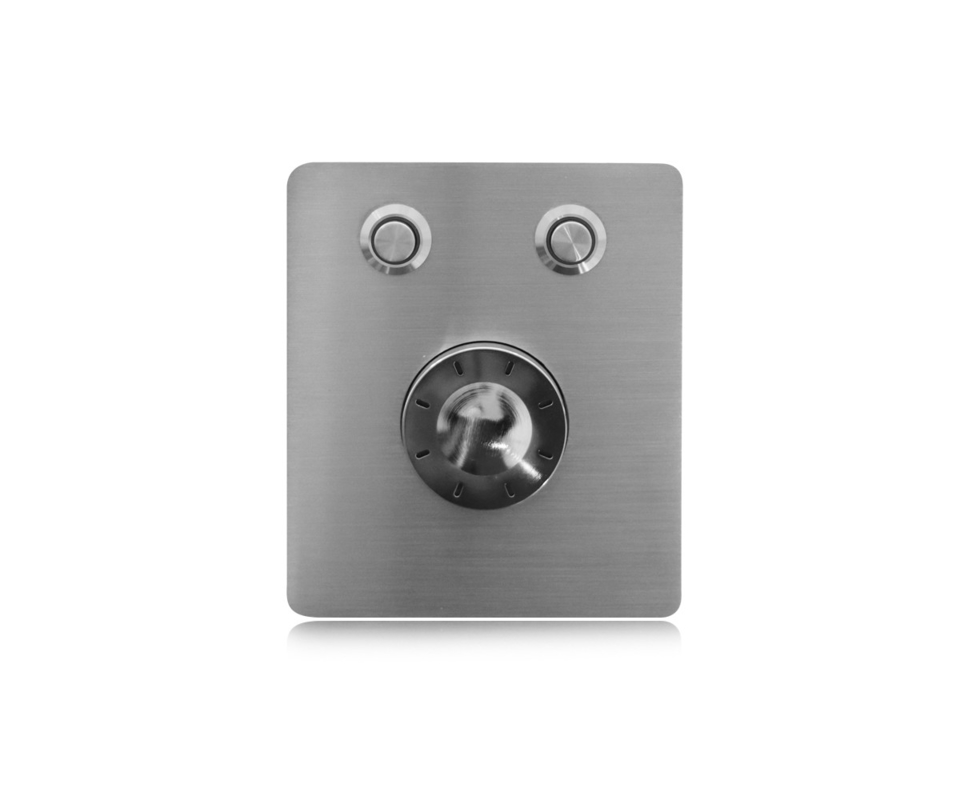

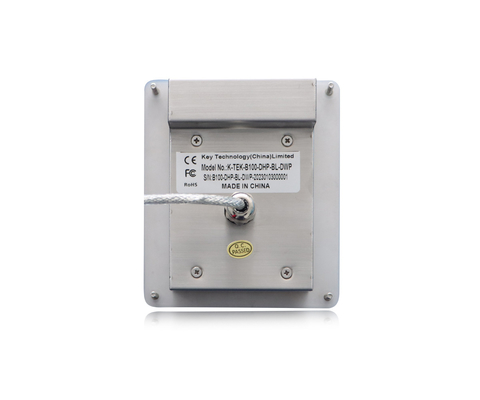

Force Sensing Resistor Trackball Pointing Device With IP65 Protection Rate
DESCRIPTION: IP65 dynamic fully sealed and ruggedized force sensing resistor hula pointing device for fast and accurate cursor position, 2 backlighting mouse buttons for right & left clicking, with rubber sealing gasket under top stainless steel plate for easy sealing and tightly mounting with cabinet, stainless steel top plate with threaded bolts for top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water,oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
DIMENSIONS: 100.0mm x 116.0mm (L x W)
|
MECHANICAL DATA |
|
|
Keys |
2 keys |
|
Key top style |
Sealed round keys |
|
Key travel |
2.80mm |
|
Actuation Force |
1.5N |
|
Switch life |
more than 5 million of operations |
|
G.W. |
0.50KGs |
|
ELECTRICAL DATA |
|
|
Supply Voltage |
DC +5V±5% |
|
Current Rating |
≤30mA when backlight off, ≤50mA when backlight on |
|
EMC Standard |
EN 55032:2015 EN 55035:2017 |
|
Lifespan |
> 5 years |
|
Interface |
PS2, USB available |
|
Cable length |
Standard 2.0m, customized length available |
|
OS |
All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
|
ENVIRONMENTAL ADAPTABILITY |
|
|
Operating temperature |
-20℃ to +65℃ |
|
Storage temperature |
-30℃ to +75℃ |
|
Operating RH |
100% |
|
Atmospheric pressure |
60-106Kpa |
|
Saline mist |
96 hours, IEC 60512-6 |
|
Damp heat test at +40℃ |
21 days, IEC 60512-6 |
|
Dry heat test at +85℃ |
10 days, IEC 60512-6 |
|
RELIABILITY |
|
|
RoHS, CE, FCC, ESD |
|
|
Protection Level |
IP65 |
|
Key Lifespan |
>5 million actuations |
|
MTBF |
>20000H |
|
MTTR |
<30min |
|
APPLICATION |
Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
