Product Details:
|
| Application: | Vehicle, Aerospace, Naval, Defense, Maritime, Radar, Console, Portable Rugged Laptop, UAV Ground Station Etc. | Connection: | PS2, USB Available |
|---|---|---|---|
| Material: | Rubber | Key: | 87 Keys + 2 Mouse Buttons |
| G.W.: | 1.20KGs | Operating Temperature: | -20℃ To +60℃ |
| Name: | Silicone Keyboard With Touchpad | ||
| High Light: | Integrated Silicone Rubber Keyboard,Backlight Silicone Rubber Keyboard,Integrated Portable Rubber Keyboard |
||

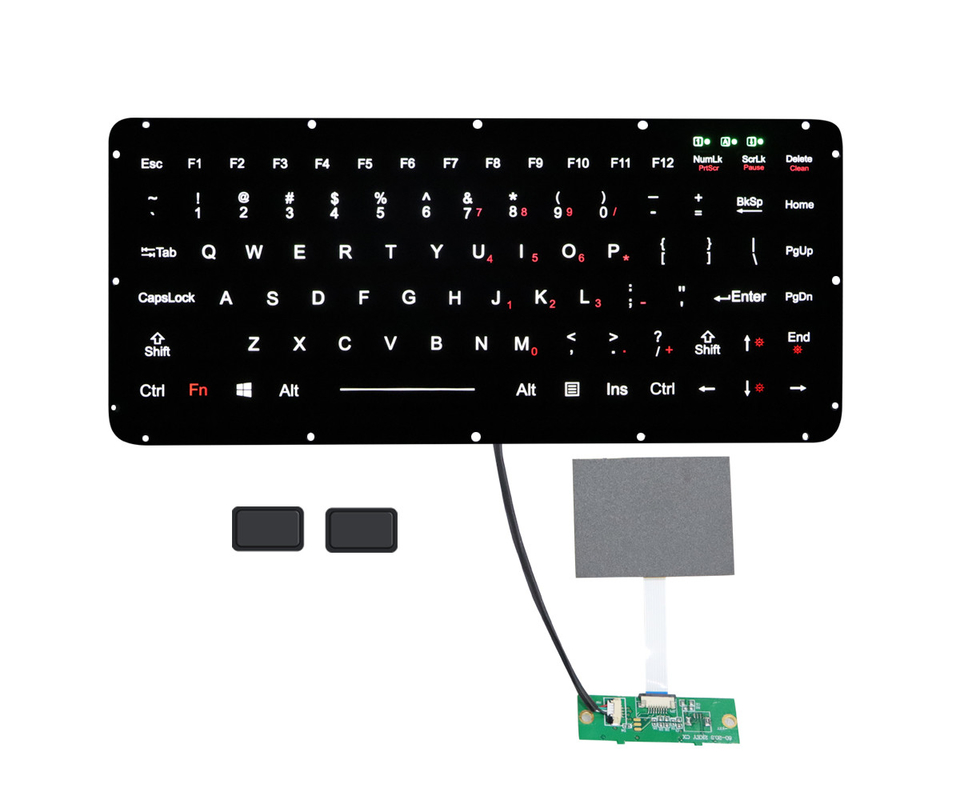

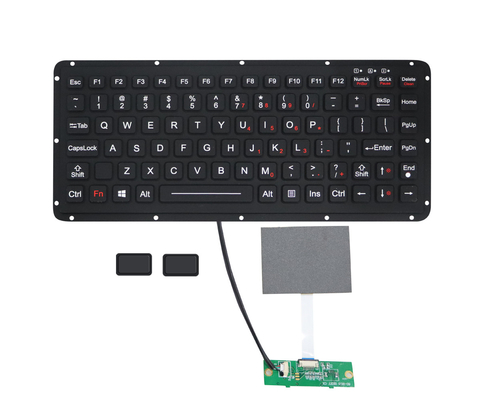

Integrated Silicone Rubber Keyboard With Backlight 2 External Mouse Keys
DESCRIPTION: 87 keys IP65 dynamic sealed & ruggedized silicone rubber special professional keyboard with rugged touchpad module and 2 external mouse keys integrated, ideal for notebooks, rugged laptops/PC and UAV drone etc. applications. 12 function keys on top line for easy operation, using reinforced special membrane switch key technology with key stroke (1.20mm) with extremely good tactile feeling for fast and accurate data input without any noise and error output, accurate and fast input, there will be no key value missing, no stuck key, no repeated key value output during the keyboard operation, The keyboard built-in ultra-thin metal frame and ultra-thin metal reinforcement bottom plate combine the keyboard seal reinforcement into a professional whole, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard from PC, panel mount with super thin ruggedized aluminum back plate with mounting holes, adjustable industrial white backlight included. FN + End button to control keyboard backlight and FN + ↑ or ↓ button to adjust backlight brightness. Embedded installation mode. Built to meet critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity, as well as MIL-STD-810F with high and low temperature, wet and hot, vibration, mildew Level 2, salt spray, direct rain, direct sun, dust etc. MIL-STD-461G-EMC-EMI-EMS optional.
Dimension: Keyboard: 270.0mm x 113.0mm(L x W) Touchpad: 65.0mm x 49.0mm (L x W )
| MECHANICAL DATA | |
| Keys | 87 keys + 2 mouse buttons |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Key Size | 12.0mm X 13.0mm for normal keys |
| Key travel | 1.20mm±0.1mm |
| Actuation Force | 1.2N±0.2N (pressure point ) |
| Switch life | more than 5 million of operations |
| Touch pad | sealed and ruggedized tough touchpad |
| Touchpad cover | Composite |
| More than Lifetime 10 million strokes | |
| Mutual capacitance sensing | |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Output (self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5VDC ± 0.25V |
| Current rating (active mode) | < 10 mA |
| G.W. | 1.20KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mA when backlight is off, 300mA with backlight on |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | industrial PCB with membrane key switch technology |
| Interface | PS2, USB available |
| Cable lengh | Standard 0.8m, other customized length available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +60℃ |
| Storage temperature | -30℃ to +65℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS compliant, CE and FCC certified, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity) | |
| Protection Level | IP65 dynamic (front panel) |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
