Product Details:
|
| Interface: | J14A-9ZJB Aviation Plug | Key Technology: | Mechanical Axis Key Switch Technology |
|---|---|---|---|
| Keys: | 107 Keys | Key Travel: | 4.0mm±0.4mm |
| G.W.: | 2.0KGs | Name: | Mechanical Keyboard |
| High Light: | 461G Panel Mount Keyboard,107 Keys Panel Mount Keyboard,Military MIL STD Mechanical Keyboard |
||

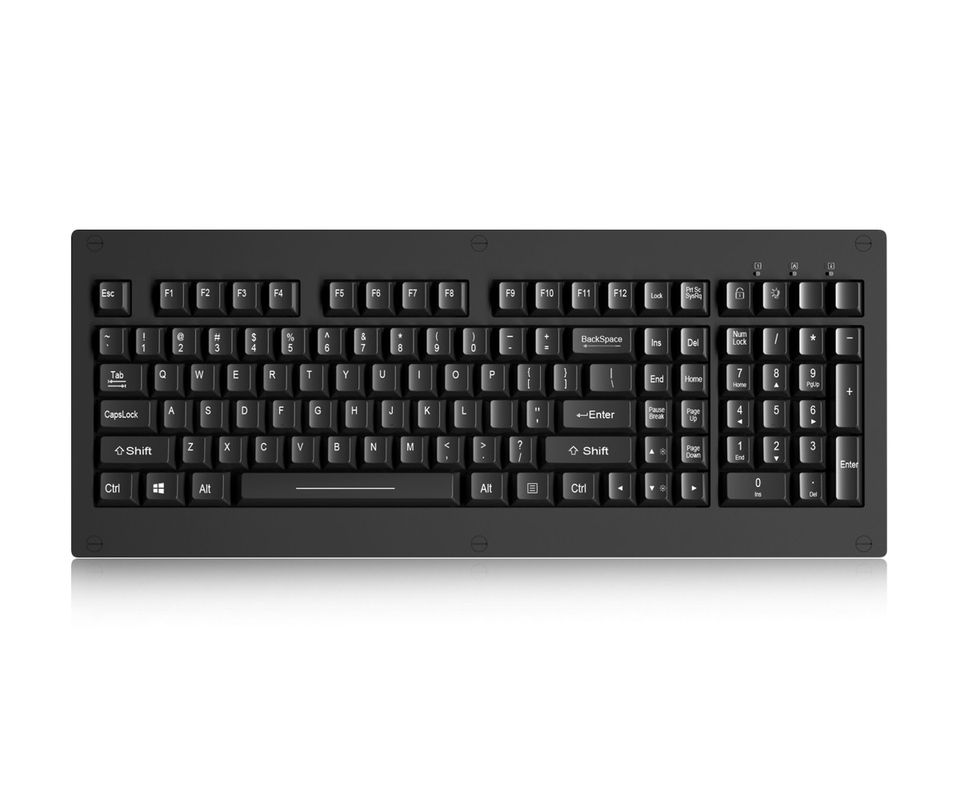

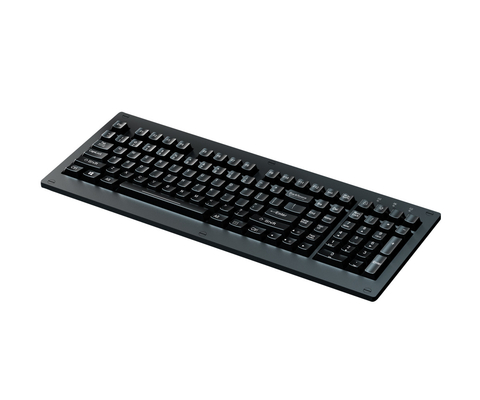

107 Keys Mechanical Keyboard Military MIL STD 461G Panel Mount Keyboard
RUGGED MECHANICAL KEYBOARD

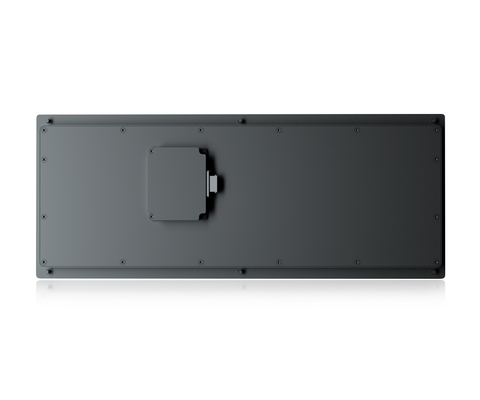

DESCRIPTION: 107 keys IP54 static rated waterproof rugged durable embedded military mechanical keyboard, with built-in wide temperature military grade PCB, with numeric keypad, 12 FN keys (F1, F2...F11, F12) are on top line for easy operation. The high quality ruggedized aluminum alloy panel is processed by CNC, PC material button, with mechanical axis key switch and 4.00mm long stroke with extremely good tactile feeling for fast and accurate data input, with durable coating & antimicrobial surface to withstand bacteria and work well under harsh environment, top panel mounted solution with sinking holes, with green backlight included, J14A-9ZJB aviation plug. Designed to meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.), which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
DIMENSION: 418.0mm x 172.0mm (L x W)
| MECHANICAL DATA | |
| Key | 107 keys |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Key travel | 4.0mm±0.4mm |
| Key technology | mechanical axis key switch technology |
| Actuation Force | 0.55N±0.15N (pressure point ) |
| Key Gram Force | 50±10gf |
| G.W. | 2.0KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | ≈80mA |
| Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc.: | |
| 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads |
| 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads |
| 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads |
| 4 | CS106 Conducted Susceptibility, Transients, Power Leads |
| 5 | CS112 Electrostatic Discharge Susceptibility |
| 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection |
| 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation |
| 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads |
| 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field |
| 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field |
| 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field |
| 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field |
| MIL-STD-810F (wide temperature, shock, vibration, humidity). | |
| Lifespan | > 5 years |
| Interface | J14A-9ZJB aviation plug, other interfaces can be customized |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +60℃ |
| Storage temperature | -45℃ to +70℃ |
| Saline mist | 96h, IEC60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| Humidity | 100% |
| Atmospheric pressure | 60-106Kpa |
| RELIABILITY | |
| RoHS compliant, CE and FCC certified, MIL-STD-461G-EMC-EMI-EMS-ESD, and MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, dust, fungus, solar radiation etc.) | |
| Protection Level | IP54 |
| Key Lifespan | >50 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
