Product Details:
|
| Touchpad Thickness: | 1.3 Mm PCB Thickness Inclusive Of Mylar Layer | Touchpad Lifespan: | > 10 Mio Times |
|---|---|---|---|
| Interface: | PS2, USB Available | Tracking Speed: | Maximum 1,016 M/sec |
| Protection Level: | IP65 | Name: | Touchpad Mouse |
| High Light: | Dynamic Sealed Industrial Touchpad,EMC Industrial Touchpad |
||
Dynamic Sealed Industrial Touchpad with EMC EMI EMS and ESD Certification
DESCRIPTION: IP65 dynamic sealed and stainless steel ruggedized tough touchpad with two high quality resin mouse buttons, stainless steel front panel with threaded bolts for top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water,oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion. Working temperature(-40℃ to +75℃), meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) Which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
DIMENSIONS: 98.0mm x 88.0mm (L x W)
INDUSTRIAL TOUCHPAD TECHNICAL SPECIFICATION:
| MECHANICAL DATA | |
| Keys | 2 keys |
| Key technology | Carbon-on-Gold key switch technology |
| Key travel | 1.20mm±0.10mm |
| Actuation Force | 2.0N±0.2N |
| Switch life | more than 5 million of operations |
| Touch pad | sealed and ruggedized tough touchpad |
| Touchpad cover | Composite |
| More than Lifetime 10 million strokes | |
| Mutual capacitance sensing | |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Output (self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| G.W. | ≈0.50KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA |
| Lifespan | > 5 years |
| Interface | PS2, USB available |
| Cable lengh | Standard 2.0m, customized length available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc: | |
| CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads | |
| CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads | |
| CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads | |
| CS106 Conducted Susceptibility, Transients, Power Leads | |
| CS112 Electrostatic Discharge Susceptibility | |
| CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection | |
| CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation | |
| CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads | |
| RE101 25Hz -100kHz Radiated Emissions, Magnetic Field | |
| RE102 10kHz - 18GHz Radiated Emissions, Electric Field | |
| RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field | |
| RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field | |
| MIL-STD-810F (wide temperature, shock, vibration, humidity). | |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +80℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS, CE, FCC, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) | |
| Protection Level | IP65 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |

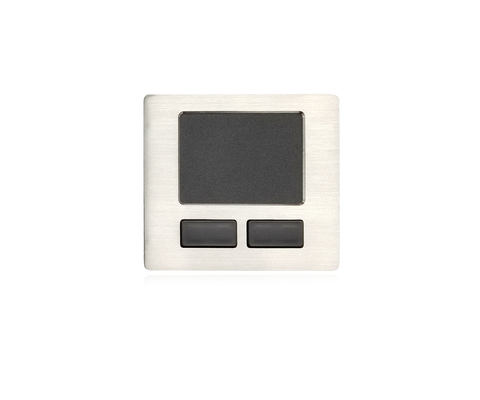

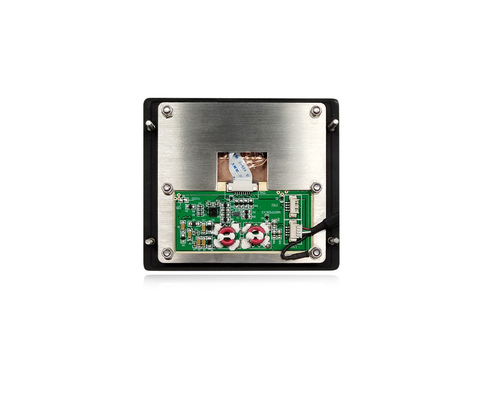

ACTUAL PHOTOS:
