Product Details:
|
| Housing: | Robust Polycarbonate | Application: | Indutrial, Medical |
|---|---|---|---|
| Color: | Black, White | USB: | Yes, PS2 Optional |
| Material: | Membrane | Mouse: | No |
| Name: | Industrial Membrane Keyboard | ||
| High Light: | ip68 waterproof membrane keyboard,russia layout waterproof membrane keyboard,washable industrial membrane keyboard |
||
Robust polycarbonate cased washable membrane keyboard
DESCRIPTION:107 keys IP68 dynamic rated washable industrial membrane keyboard with integrated numeric keypad and function keys on the upper line, 2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with FN + CLEAN combination key for easy cleaning via lock/disable the entire keyboard without needing to take keyboard from PC, surface mounted extremely flush with anti-microbial, the fonts printed on the film underneath will never fade, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, stand alone movable desk top version with super flat movable desk top version with sealed and ruggedized robust ABS polycarbonate case, with optional silicone gasket around the edges of the whole keyboard to protect the membrane from being torn or peeled off.
| MECHANICAL DATA | |
| Number of Keys | 107 keys |
| Key switch Technology | metal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys |
| Actuation Force | 3.5N±0.2N (press point) |
| Key Travel | 0.45mm |
| Key switch Lifetime | 1 mil. operations |
| Mounting Type | Flat desktop version |
| Colors | 2 (white, black) |
| G.W. | 1.50KGs |
| Key Dimensions (print area) | 13.0mm x 13.0mm |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS, CE, FCC | |
| Protection Level | IP68 |
| Key Lifespan | >1 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc. |

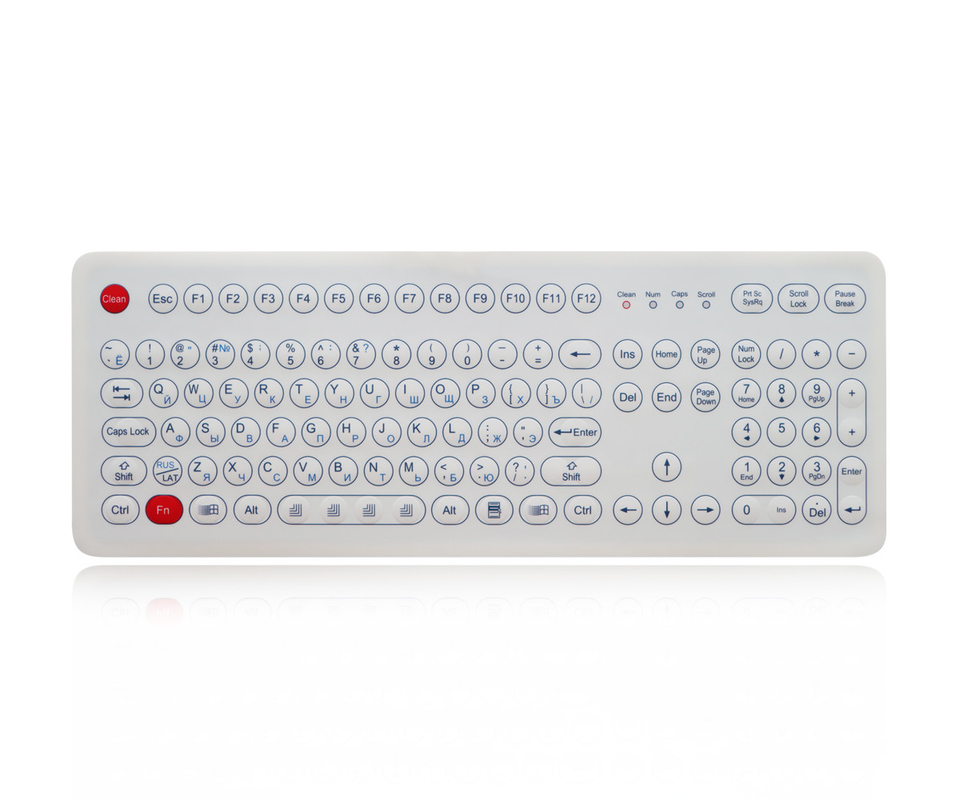

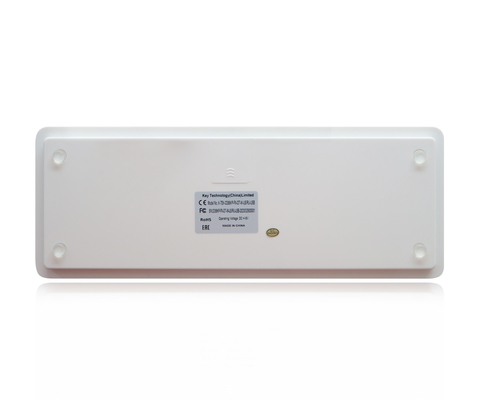

Actual pictures:
