Product Details:
|
| Material: | Silicone Rubber | Connection: | USB / PS2 |
|---|---|---|---|
| Application: | Military | FN Keys: | Yes |
| Backlight Color: | Red | G.W.: | 1.20KGs |
| Name: | EMC Military Keyboard | ||
| High Light: | IP65 Military Keyboard,90 Keys Military Keyboard,Silicone rubber EMC Keyboard |
||

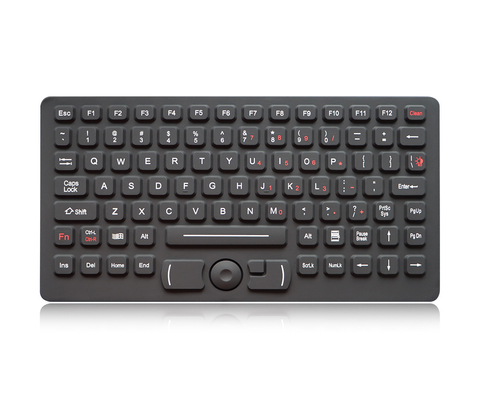

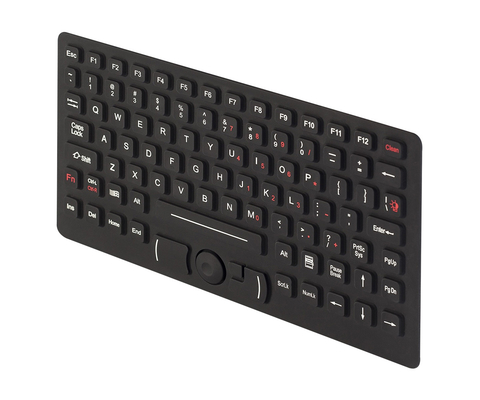

DESCRIPTION: 90 keys IP65 dynamic sealed and ruggedized silicone rubber military keyboard with full keyboard functionalities with a Force Sensing Resistor pointing device for fast and accurate cursor position, 12 FN keys (F1, F2...F11, F12) are on top line for easy operation, with military PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + CLEAN combination key to lock/disable the keyboard for easy cleaning without needing to take away the keyboard from PC, top panel mounting solution,with backlight included(red/white optional). EMC approval ensures that this model can coexist with other sensitive equipment without causing interference. Military level,designed to Meet MIL-STD-461G and MIL-STD-810F.
Dimensions: 281.0mm x 152.5mm (L x W )
| MECHANICAL DATA | |
| Keys | 90 keys (including 3 mouse buttons) |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Key Size | 15.88mm x 15.68mm for normal keys |
| Key travel | 1.50mm±0.1mm |
| Actuation Force | 1.5N±0.2N (pressure point ) |
| Switch life | more than 5 million of operations |
| G.W. | 1.20KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |

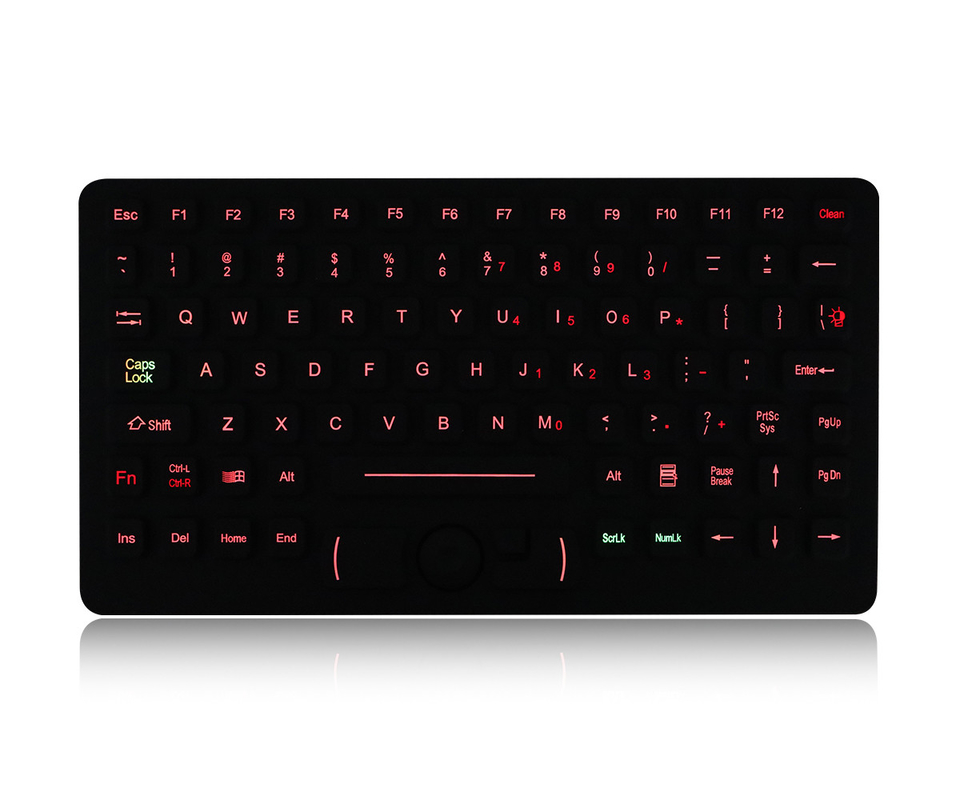

| Current Rating | 50mA when backlight is off, 300mA with backlight on |
| Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc.: | |
| 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads |
| 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads |
| 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads |
| 4 | CS106 Conducted Susceptibility, Transients, Power Leads |
| 5 | CS112 Electrostatic Discharge Susceptibility |
| 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection |
| 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation |
| 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads |
| 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field |
| 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field |
| 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field |
| 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field |
| MIL-STD-810F (wide temperature, shock, vibration, humidity). | |
| Lifespan | > 5 years |

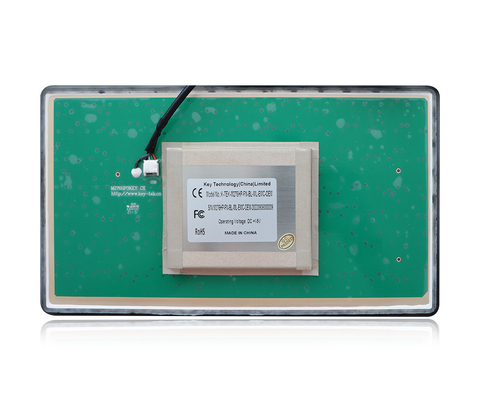

| Switch Contact Material | Carbon-on-Gold key switch technology with military PCB |
| Interface | PS2, USB available |
| Cable lengh | Standard 2.0m, customized length available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -25℃ to +60℃ |
| Storage temperature | -40℃ to +70℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
|
RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity) |
|
| Protection Level | IP65 dynamic (front panel) |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
