Product Details:
|
| Warranty: | 1 Year | Name: | Industrial Touchpad |
|---|---|---|---|
| Material: | Polymer | Resolution: | 400 DPI |
| Color: | Black | Type: | Touchpad |
| Supply Voltage: | DC +5V±5% | DIMENSIONS: | 65.0mm X 49.0mm (L X W) |
| Protection: | IP65 | Keyword: | Touchpad, Touchpad Module |
| High Light: | 400 DPI Industrial Touchpad,Polymer Industrial Touchpad,Waterproof Touchpad Module |
||
Industrial Touchpad K-TEK-TP6549-USB+2KEY is a high performance humanize designed touchpad module especially for Laptops, Notebooks and EPC products. Utilizing capacitive sensing technology to provide accurate cursor motion at X, Y directions through fingers. Function as complete computer mouse via USB interface. Plug-and-play. With multi-touch functionality optional in difference with conventional mouse. USB interface, with 2 external fully waterproof mouse buttons with micro key switch technology for comfortable tactile feeling.
DIMENSIONS: 65.0mm x 49.0mm (L x W)
| MECHANICAL DATA | |
| Keys | 2 keys |
| Key Technology | Micro key switch technology |
| Mutual capacitance sensing | |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Output (self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Current rating (active mode) | < 10 mA |
| G.W. | 0.20KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | USB |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +55℃ |
| Storage temperature | -30℃ to +70℃ |
| Operating RH | 3%~95% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS compliant, CE and FCC certified | |
| Protection Level | IP65 (front panel) |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS |
Vehicle, aerospace, naval, maritime, Radar, console, portable rugged laptop, notebook, PC, UAV ground station etc. |
Industrial Touchpad is an USB touchpad with a 2-button design and a 400 DPI resolution, enabling quick and smooth cursor control for industrial applications. Certified with CE/RoHS/FCC/REACH compliance. It is powered by DC 5V and has a LED indicator. It is available in black color.
The Brand Name of the Industrial Touchpad is IKB-MKB with Model Number K-TEK-TP6549-USB+2KEY. It is manufactured in Shenzhen, China and requires a minimum order quantity of 1pc. The price will be quoted upon request. It is usually packaged in individual boxes and several boxes per carton. Delivery can be arranged as soon as possible within 1-2 weeks after payment is confirmed. Payment can be made by Full Payment in Advance, Western Union, T/T, or Paypal. The maximum supply ability is 3000psc/month.
Industrial Touchpad provides technical support and services for our customers. We provide customer service through email, telephone, and online chat. Our customer service team is available 24 hours a day, seven days a week to assist with any questions or issues you may have. We also provide product documentation, tutorials, and other resources to help you get the most out of your Industrial Touchpad product.
We also offer software and firmware updates for our Industrial Touchpad products. We provide these updates to ensure that your device has the latest features and fixes. We also offer a variety of online tools and resources that can help you troubleshoot any issues you may have with your product.
We also provide a comprehensive warranty for our Industrial Touchpad products. Our warranty covers any defects in materials or workmanship and covers any repairs or replacements for as long as you own the product.
The Industrial Touchpad is packaged in a corrugated box with internal padding for protection during shipping. All packages are secured with additional tape and labeled for easy identification. The weight and dimensions of each package are also labeled to ensure accurate shipping.
The Industrial Touchpad is shipped via courier or freight depending on the size of the order. All orders are tracked and insured to ensure that they arrive safely and on time.

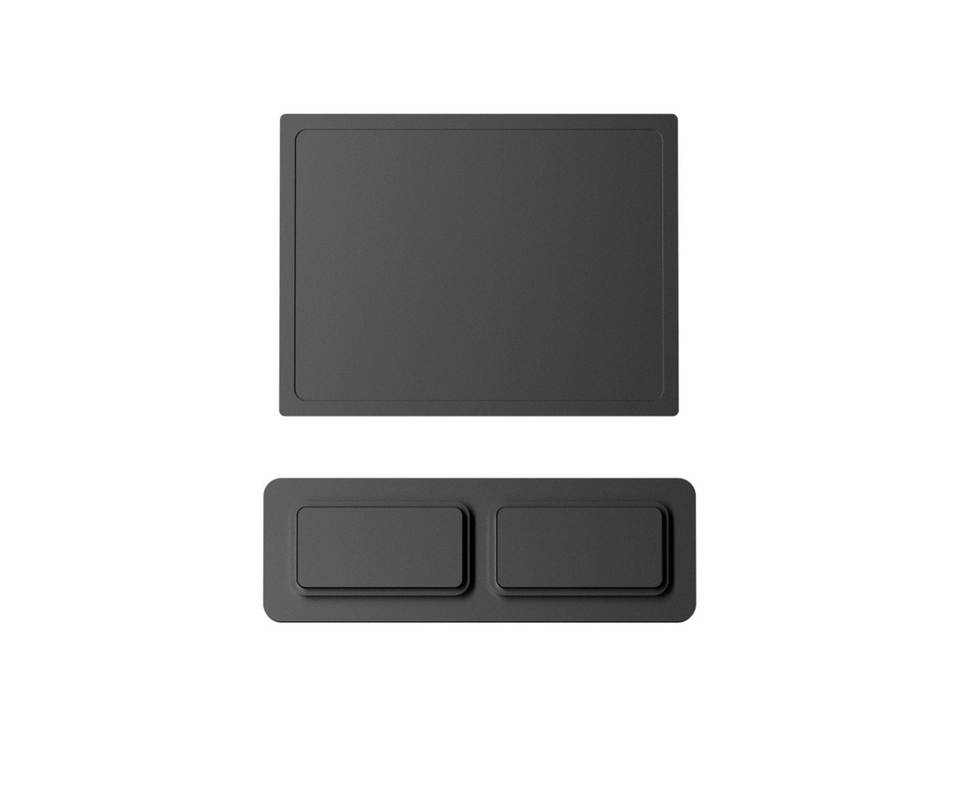

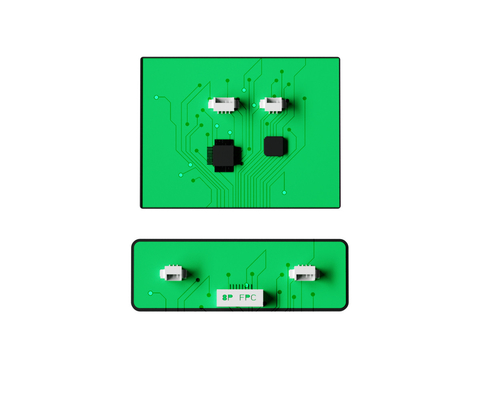

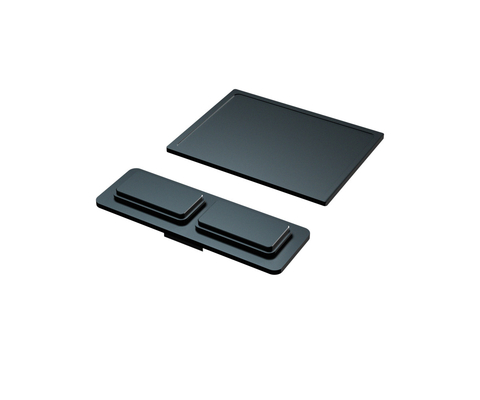

Industrial Touchpad Actual Photos
