Product Details:
|
| Material: | Membrane + Stainless Steel | Keys: | 106 Keys (including 3 Mouse Buttons) |
|---|---|---|---|
| G.W.: | 3.80KG | Resolution: | 800 DPI |
| Mounting: | Desktop Version | Trackball: | 38.0mm Optical Trackball |
| Color: | White Or Black | Name: | Industrial Membrane Keyboard |
| Keyword: | Industrial Keyboard Trackball, Membrane Keyboard, Industrial Keyboard | ||
| High Light: | Desktop Industrial Membrane Keyboard,Industrial Membrane Keyboard With Trackball,800 DPI Custom Membrane Keyboard |
||

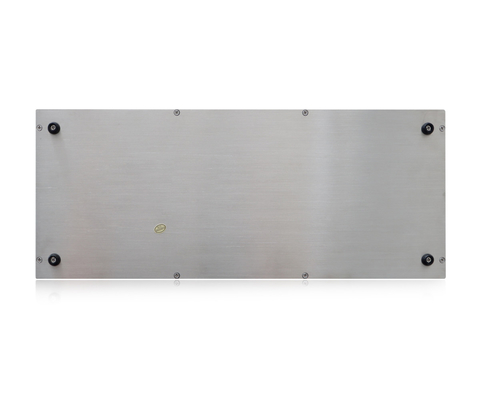

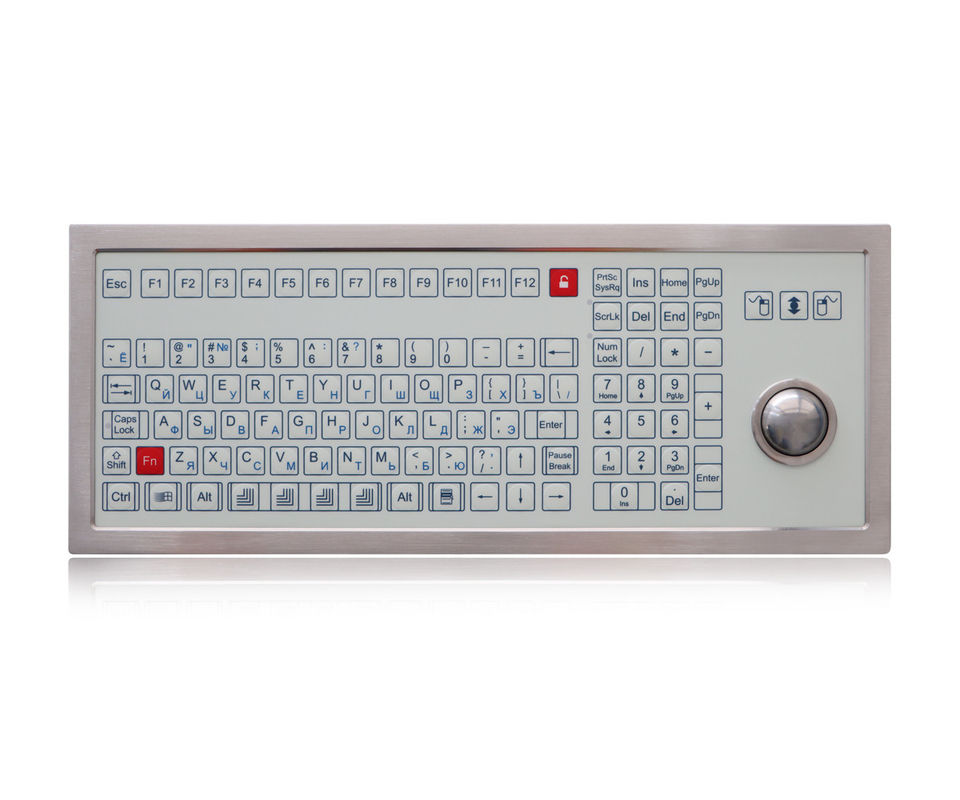

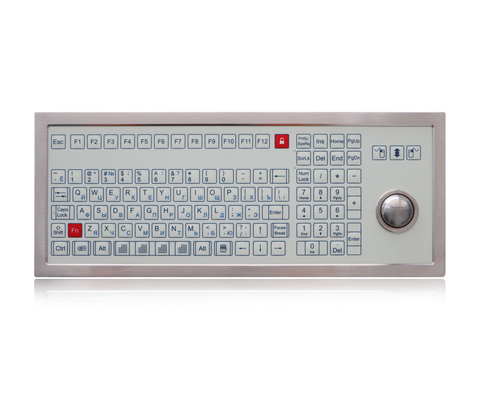

Description For Industrial Membrane Keyboard : 106 keys IP68 dynamic rated membrane industrial keyboard with full keyboard functionalities with integrated numeric keypad and function keys on the upper line, IP68 dynamic rated washable 38.0mm optical trackball module with 800 DPI resolutions for fast and accurate cursor position, fully sealed and ruggedized industrial PCB with OMRON switch technology with short stroke 0.45mm with extremely comfortable and light tactile feeling for reliable data input, with FN+LOCK combination key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, surface mounted extremely flush with anti-microbial functionalities, the fonts printed on the film underneath will never fade, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, movable desktop version with rugged stainless steel housing.
Industrial Membrane Keyboard Dimensions: 420.0mm x 170.0mm x 50.5mm (L x W x H)
| Industrial Membrane Keyboard MECHANICAL DATA | |
| Number of Keys | 106 keys (including 3 mouse buttons) |
| Key switch Technology | OMRON switch technology with short stroke 0.45mm for stable and accurate data input |
| Actuation Force | 2.0N±0.2N (press point) |
| Key Travel | 0.45±0.05mm |
| Colors | white, black |
| G.W. | ≈3.8KGs |
| Trackball | IP68 washable 38mm stainless steel optical ball, or silver hardened resin optical ball |
| Trackball resolutions | 800DPI |
| Industrial Membrane Keyboard ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 100mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| Industrial Membrane Keyboard ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 3%~95% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| Industrial Membrane Keyboard RELIABILITY | |
| RoHS, CE, FCC | |
| Protection Level | IP68 |
| Key Lifespan | >1 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc. |
