Product Details:
|
| Dimensions: | 400.0mm X 124.0mm (front Panel) | Key Travel: | 1.5mm±0.1mm |
|---|---|---|---|
| Supply Voltage: | +5V DC ± 5% | Interface: | PS2, USB Available |
| Keys: | 75 Keys (including 3 Mouse Buttons) | Name: | Trackball Keyboard |
| High Light: | IP65 Rated Stainless Steel Keyboard,3 Mouse Buttons Stainless Steel Keyboard,75 keys Industrial Keyboard |
||

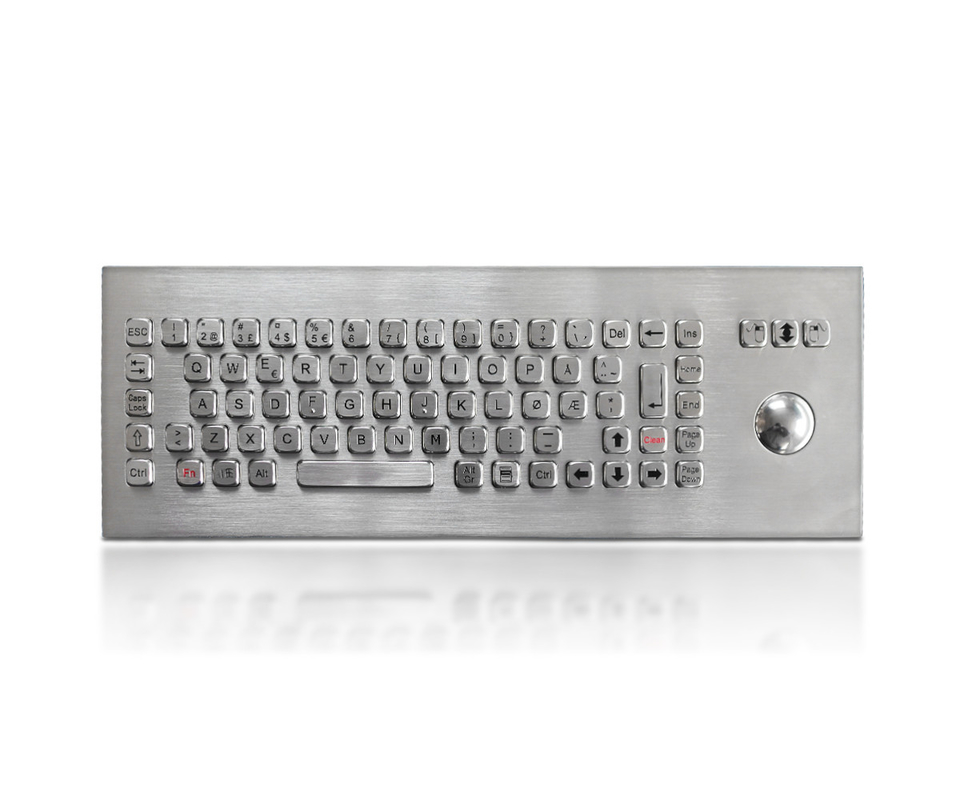

IP65 Rated Stainless Steel Keyboard With 3 Mouse Buttons For Industrial Applications
Descriptions:
75 keys (including 3 mouse buttons) IP65 vandal proof stainless steel industrial keyboard with fully sealed and ruggedized industrial PCB electronics controller, and IP65 38.0mm stainless steel mechanical trackball module with 400 DPI high resolutions for fast and accurate cursor position with extremely smooth operation without any noise, industrial PCB with carbon-on-gold key switch technology with long stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, 3.0mm aluminum back plate with water-tight gasket for easy and tightened sealing with cabinet or panel, top panel mounting solution. FN + CLEAN combination key to lock/disable the entire keyboard for easy cleaning and washing without needing to take away the keyboard from PC,Industrial Backlight (red/blue/white/green) optional. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
DIMENSIONS: 400.0mm x 124.0mm (front panel)
K-TEK-A400-TB can be subdivided to below two versions:
K-TEK-A400-MTB with IP65 static 38mm stainless steel mechanical trackball module with +400 DPI resolutions.
K-TEK-A400-OTB with IP68 dynamic washable 38mm stainless steel optical trackball module with +800 DPI resolutions.
| MECHANICAL DATA | |
| Actuator/keys | 75 keys (including 3 mouse buttons) |
| Key top style | Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
| Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar |
| Key travel | 1.50±0.10mm |
| Actuation Force | 1.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 2.5N±0.2N for key 14.0mm x 28.0mm (pressure point) |
| Front Plate | 1.5mm thickness super quality brushed stainless steel |

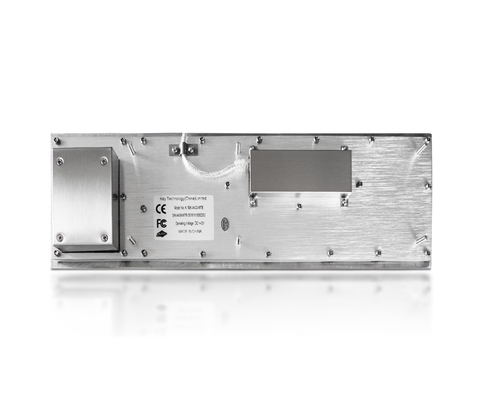

| Back Plate | 3.0mm thickness brushed & oxidized aluminium |
| Switch life | more than 5 million of operations |
| Tracker ball | 38.0mm mechanical trackball module |
| G.W. | 2.00KGs |
| ELECTRICAL DATA | |
| Supply Voltage | +5V DC ± 5% |
| Current Rating | 50mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology PCB |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 30-90% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS Compliant, CE and FCC, ESD | |
| Protection Level | IP65 dynamic (front panel) |
| Vandal resistant | IK08 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
