Product Details:
|
| Switch Life: | More Than 5 Million Of Operations | Type: | Military EMC Keyboard |
|---|---|---|---|
| Operating Temperature: | -40℃ To +75℃ | Warranty: | 1 Year |
| Interface: | USB/PS2 Available | Weight: | 1.50kg |
| Name: | EMC Keyboard | Switch Type: | Carbon-on-gold |
| High Light: | Military Keyboard With Trackball Mouse,69 Keys Military Keyboard,USB military style keyboard |
||
Military Keyboard Compact Format with 69 Keys and Ergonomic Trackball Mouse
MILITARY KEYBOARD DESCRIPTION: 69 keys compact format IP65 dynamic sealed & ruggedized silicone rubber military keyboard integrated with a handheld ergonomic trackball mouse, with middle wheel, left/right buttons as well as one IPX6 rating 34mm optical trackball mouse at 800 DPI resolution for fast cursor moving, with 12 function keys on top line for easy operation, with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise or mistyping, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, CNC aluminum housing with oxidized spraying painting for full black color treatment to be scratch proof, with 6 sinking holes for panel mount to user's device. Designed to Meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) Which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
MILITARY KEYBOARD DIMENSIONS: 316.0mm x 160.0mm (L x W)
| MECHANICAL DATA | |
| Keys | 69 keys |
| Switch Contact Material | Carbon-on-gold key switch technology |
| Key Top Style | Protuberant rectangular keys with tactile feeling |
| Key Travel | 1.50mm±0.10mm |
| Actuation Force | 1.5N±0.2N (pressure point ) |
| G.W. | 1.50KGs |
| MILITARY KEYBOARD ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA when backlight is off, 300mA with backlight on |
| Meet MIL-STD-461G (EMC, EMI, EMS, ESD): | |
| 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads |
| 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads |
| 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads |
| 4 | CS106 Conducted Susceptibility, Transients, Power Leads |
| 5 | CS112 Electrostatic Discharge Susceptibility |
| 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection |
| 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation |
| 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads |
| 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field |
| 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field |
| 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field |
| 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field |
| MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) | |
| Lifespan | > 5 years |
| Interface | USB, PS2 available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Operating RH | 3%~95% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| MILITARY KEYBOARD RELIABILITY | |
| RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) | |
| Protection Level | IP65 (front panel) |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
Our Military Keyboard is carefully packaged and shipped to ensure safe delivery to our customers.
The Military Keyboard is packaged in a sturdy box made from recycled materials. The box is designed to protect the keyboard from any damage during transportation.
Inside the box, the keyboard is wrapped in a layer of bubble wrap and securely placed in a foam insert. This ensures that the keyboard stays in place and is not damaged by any external forces.
We also include a user manual and warranty card in the packaging for our customers' convenience.
We offer fast and reliable shipping options for our customers to choose from. Our standard shipping method is through reputable couriers such as DHL or FedEx. This allows for timely delivery and package tracking.
For customers located in remote areas, we also offer alternative shipping methods such as air or sea freight. However, please note that these options may take longer for delivery.
Before shipping, each package is carefully inspected to ensure that the keyboard is in perfect condition.
We take great care in packaging and shipping our products to ensure that they reach our customers in pristine condition. We strive to provide the best customer experience and are committed to delivering our products in a safe and timely manner.

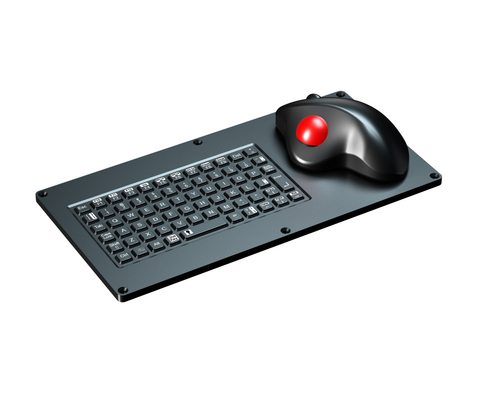

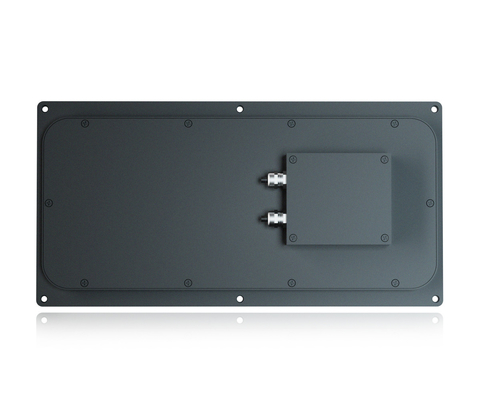

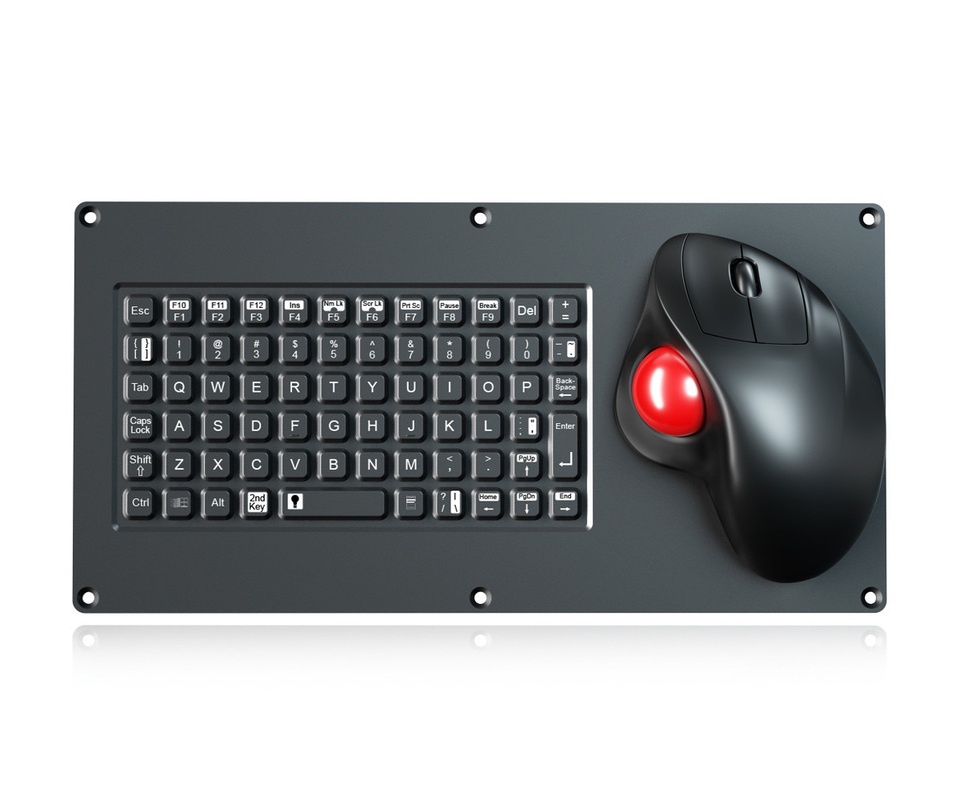

MILITARY KEYBOARD ACTUAL PHOTOS
