Product Details:
|
| Certification: | ROHS,CE,FECC | Material: | Polymer |
|---|---|---|---|
| Backlight: | White | Keys: | 116 Keys |
| Key Travel: | 1.20mm±0.10mm | Protection Level: | IP65 Dynamic (front Panel) |
| Interface: | USB/PS2 Available | Size: | 383.0mm X 167.0mm X 21.5mm (L X W X H) |
| Key Word: | Rugged Keyboard, Industrial Keyboard With Touchpad |
Industrial Keyboard With Touchpad And IP68 Dynamic Waterproof Technology
Industrial Keyboard With touchpad Model NO: K-TEK-M383TP-KP-FN-BL-DT-DWP
DESCRIPTION FOR INDUSTRIAL KEYBOARD WITH TOUCHPAD : 116 keys compact format IP68 dynamic water proof & vandal proof stainless steel industrial keyboard with individual durable and robust polymer keys with full keyboard functionalities. Sealed and ruggedized industrial PCB with carbon-on-gold key switch technology with key stroke(1.20mm±0.10mm)with extremely good tactile feeling for fast and accurate data input without any noise, function keys F1, F2, ...F19, F20 are on the top line for easy operation, individual numeric keypad integrated, with integrated IP65 sealed and ruggedized tough touchpad for fast and accurate cursor position. Movable desktop version. The full keyboard can be locked/disabled via FN + Clean combination keys for easy cleaning without taking the keyboard away from PC. Adjustable white backlight included. It is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.
DIMENSIONS: 383.0mm x 167.0mm x 21.5mm (L x W x H)
| MECHANICAL DATA | |
| Keys | 116 keys(Including 2 mouse buttons), durable polymer keys |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 68.0mm for space bar |
| Key travel | 1.20mm±0.10mm |
| Actuation Force | 2.0 N±0.2N for key 14.0mm x 14.0mm (pressure point ), 3.5 N±0.20N for key 14.0mm x 28.0mm (pressure point) |
| Switch life | more than 5 million of operations |
| Touch pad | sealed and ruggedized tough touchpad |
| Touchpad cover | Composite |
| Mutual capacitance sensing | |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Output (self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| G.W. | 2.50KG |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mA (with backlight off) ,300mA (with backlight on) |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology with gold PCB |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 3%~95% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS Compliant, CE and FCC, ESD | |
| Protection Level | IP68 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |

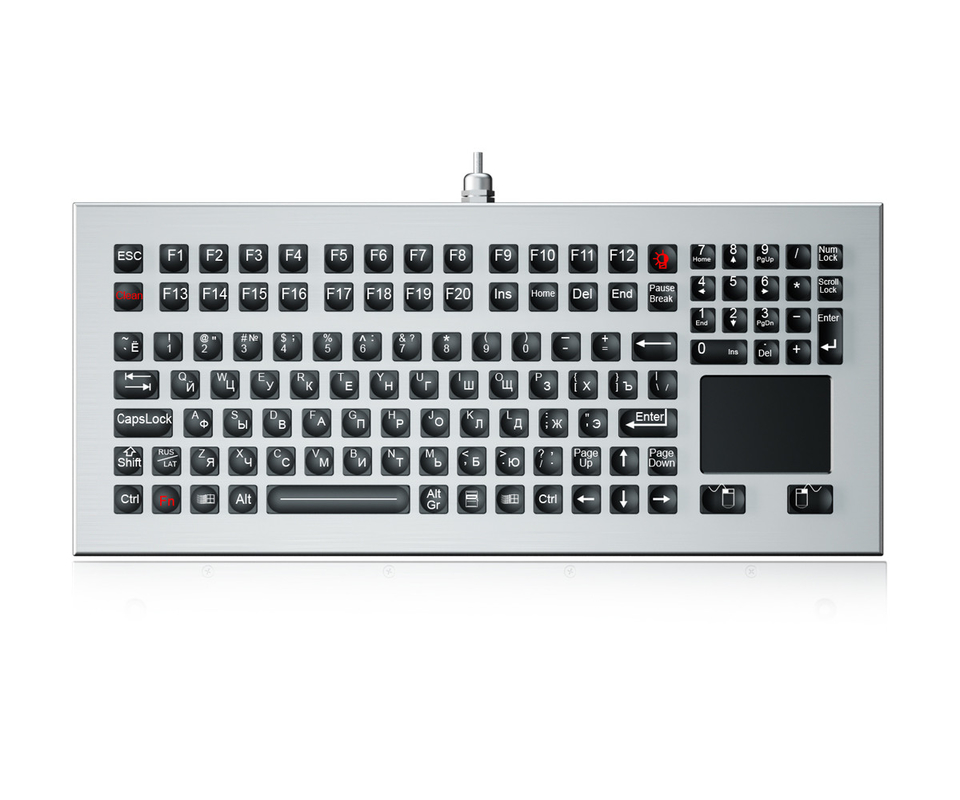

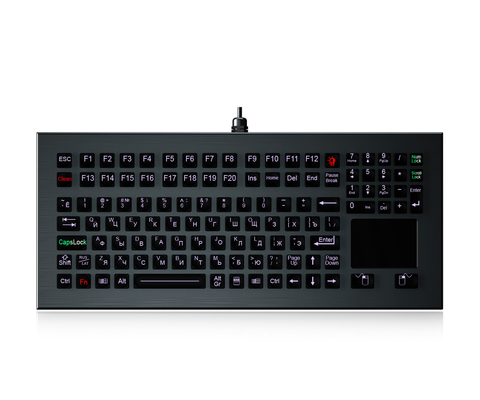

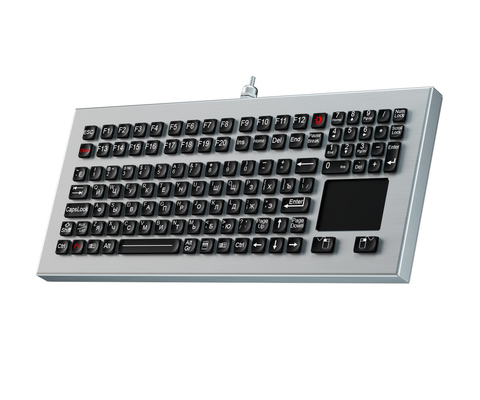

Front View For Industrial Keyboard With Touchpad

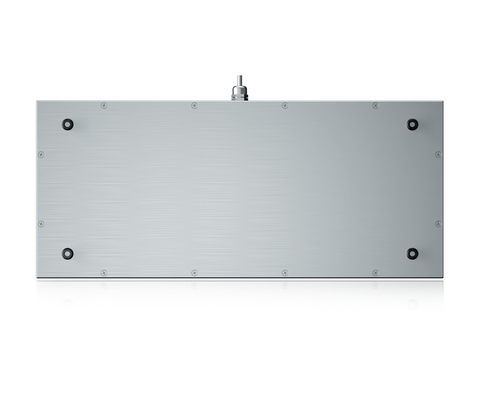

Back View For Industrial Keyboard With Touchpad
