108 Keys Scratch Proof IP67 Membrane Switches Keyboard

China Key Technology ( China ) Limited certification
China Key Technology ( China ) Limited certification
Your professionalism and loyalty is unparalleled.We are proud to maintain a partnership with Key technology and we want to express our satisfaction.

—— Pascal LESAGE

Die Geschäftsbeziehung zwischen uns und Key Technologie ist lange gewachsen und wir freuen uns auf weitere gute und erfolgreiche Jahre.

—— Jens Radenbach

I'm Online Chat Now

108 Keys Scratch Proof IP67 Membrane Switches Keyboard

108 Keys Scratch Proof IP67 Membrane Switches Keyboard
108 Keys Scratch Proof IP67 Membrane Switches Keyboard
video play

Large Image :  108 Keys Scratch Proof IP67 Membrane Switches Keyboard

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number: K-TEK-D410TP-KP-FN-SW
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: To be quoted
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month
Detailed Product Description
Material: Industrial Membrane Keys: 108 Keys
Interface: USB Or PS/2 Numeric Keypad: Yes
Mounting: Top Panel Mounting GW: 1.3 KGS
Dimensions: 410.0mm X 160.0mm Colour: Black Or White
High Light:

IP67 Membrane Switches Keyboard

,

Scratch Proof Membrane Switches Keyboard

,

108 Keys Industrial Mini Keyboard


IP67 Industrial Membrane Keyboard with OMRON Switch 108 Keys Scratch-Proof




DIMENSIONS: 410.0mm x 160.0mm (top panel)

DESCRIPTION:

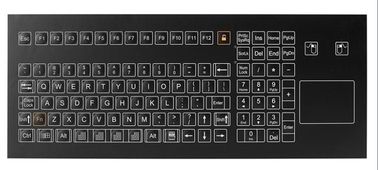

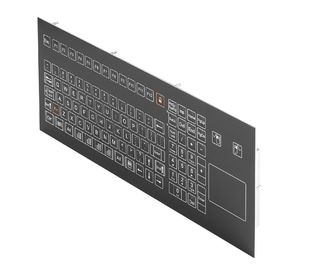

  • 108 keys IP67 dynamic rated industrial membrane keyboard with integrated numeric keypad and function keys on the upper line.
  • IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position,
  • 2.0mm thickness industrial PCB with OMRON switch technology with short stroke 0.45mm,which has extremely good tactile feeling for reliable data input.
  • “FN+Lock” key combination for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC.
  • Surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments.

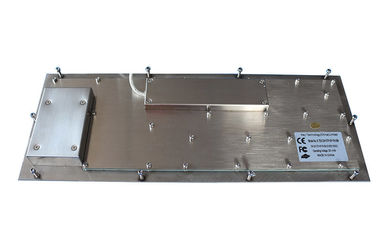

  • Ruggedized and backed with 1.5mm stainless steel plate with brushed treatment, with top panel mounted solution.

108 Keys Scratch Proof IP67 Membrane Switches Keyboard 0



108 Keys Scratch Proof IP67 Membrane Switches Keyboard 1
APPLICATIONS:
  1. This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its numeric pad allows for easy data entry.
  2. Lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
  3. Material Handling: Mobile keyboard, data entry, assembly line etc
  4. Military: Army, Navy, Air force
  5. Industrial: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses etc
  6. Other Industries


SPECIFICATION KEYBOARD:

Number of Keys: 108

Key switch Technology: OMRON switch technology with short stroke 0.45mm for stable and accurate data input
Actuation Force: 1.4N+/-0.1N for key 13.0mm x 13.0mm (press point)
Key Travel: 0.45mm
Key switch Lifetime: 1 mil. operations
Protection Level: IP67(front panel)
Mounting Type: Top panel mounting.
Operating Temperature: -20 °C to +60 °C;

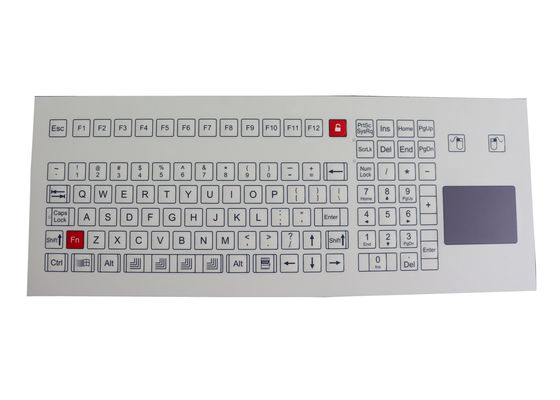

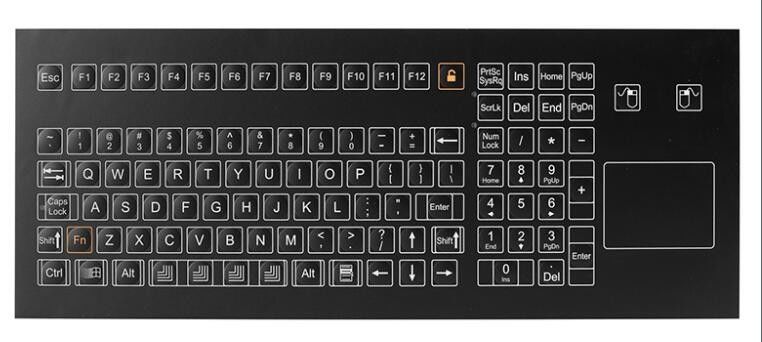

Colors: 2 (white, black)
G.W.: 1.30KGs
Key Dimensions (print area): 13.0mm x 13.0mm
Dimensions: 410.0mm x 160.0mm (Front Panel)


TOUCHPAD:
Touchpad cover: Composite
Motion Detection Method: capacitive
Resolution: 40 counts / mm
More than Lifetime 10 million strokes
Mutual Capacitance sensing
X/Y position sensing resolution: 40 counts/mm
X/Y position reporting: Relative
Output (self-detectable depending on cable): PS2 or USB
Tracking speed: Maximum 1,016 m/sec
Power supply voltage: 5 V DC ±0.25V
Current rating (active mode): 17 mA

ELECTRICAL DATA:
Supply Voltage: +5V DC +/- 5%
Current Rating: Appr. 50mA
EMC Standard: EN 55032:2015; EN 55035:2017
Lifespan > 5 years
Interface: PS2, USB available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)




RELIABILITY:
RoHS , CE, FCC, ESD
Protection Level: IP67 (front panel)
Key Lifespan >1 million actuations
MTBF >20000H
MTTR <30min
108 Keys Scratch Proof IP67 Membrane Switches Keyboard 2

108 Keys Scratch Proof IP67 Membrane Switches Keyboard 3


108 Keys Scratch Proof IP67 Membrane Switches Keyboard 4


108 Keys Scratch Proof IP67 Membrane Switches Keyboard 5108 Keys Scratch Proof IP67 Membrane Switches Keyboard 6
