IP67 Waterproof Silicone EMC Hula Force Sensing Resistor

IP67 Waterproof Silicone EMC Hula Force Sensing Resistor
IP67 Waterproof Silicone EMC Hula Force Sensing Resistor IP67 Waterproof Silicone EMC Hula Force Sensing Resistor

Large Image :  IP67 Waterproof Silicone EMC Hula Force Sensing Resistor

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number: K-TEK-M76-HP-2-ML-EMC-OEM
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: To be quoted
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month
Detailed Product Description
Material: Silicone Color: Black
Point: Hula G.W: 0.035KG
Size: 78.50mm X 35.16mm X 8.60mm (L X W X H) Warranty: 1 Year
High Light:

EMC Hula Force Sensing Resistor

,

IP67 Force Sensing Resistor

,

Waterproof Rugged Silicone Trackball

IP67 Waterproof Industrial Silicone Hula Mouse with Point Button



MODEL NO: K-TEK-M76-HP-2-ML-EMC-OEM

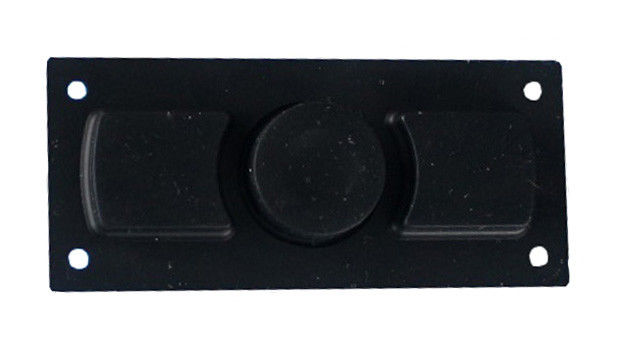

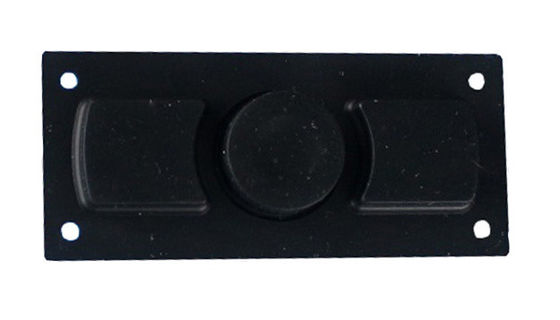

DESCRIPTION: IP67 dynamic rated waterproof & rugged Force Sensing Resistor pointing device integrated in
one-piece compact seamless silicone cover for fast and accurate cursor position, with 2 mouse buttons for left and
right clicking, and with mounting holes along for easy mounting & sealing, which is good for much oil, water, sand
etc application or gloves are needed when operation. USB interface/PS2 interface optional. Meet MIL-STD-461E
with EMC (Electro Magnetic Compatibility) & MIL-STD-810F (wide temperature, shock, vibration, humidity etc.)

Dimensions: 78.50mm x 35.16mm x 8.60mm (L x W x H)



MECHANICAL DATA :
Keys: 2 keys + 1 Hula Point button
Key top style: One silicone coat with rubber keys with very good tactile feeling.
Switch life: more than 5 million of operations.
Cable Length: 2.0m or customized cable
G.W.: 0.035KGs
Dimensions: 78.50mm x 35.16mm x 8.60mm (L x W x H)



MAIN FEATURES:
-Wearable and anti-tearance silicone coat designed for extreme climatic conditions like chemical corrosion, dust,
dirt, oil etc. It contains antibiotic constituents which is anti-bacterial for clean environment such as hospital,
laboratory.
-Waterproof execution according to IP67 protection from top silicone cover for waterproof/dirtproof/weatherproof
and easy cleaning.
-With mounting holes on the edge for easy tightly mounting to enclosure or panel.
-USB/PS2 connection cables that plug directly into computer like normal mouse operations.

ELECTRICAL DATA :
Supply Voltage: +5V DC +/-5%
Current Rating: 15mA
Power: 1.0W
Lifespan> 5 years
Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB
Interface: USB/PS2
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)

ENVIRONMENTAL ADAPTABILITY
Operating temperature:-40°C to +50°C
Storage temperature: -45°C to +55°C
Humidity: 100%
Atmospheric pressure: 60-106Kpa

RELIABILITY
RoHS, CE and FCC
Protection Level: IP67
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min



IP67 Waterproof Silicone EMC Hula Force Sensing Resistor 0





IP67 Waterproof Silicone EMC Hula Force Sensing Resistor 1





   Our Factory photo:

IP67 Waterproof Silicone EMC Hula Force Sensing Resistor 2

IP67 Waterproof Silicone EMC Hula Force Sensing Resistor 3





Our product Certificate:

IP67 Waterproof Silicone EMC Hula Force Sensing Resistor 4



IP67 Waterproof Silicone EMC Hula Force Sensing Resistor 5
