Product Details:
|
| Colour: | Black | Size: | 73.0 X 73.0 Mm |
|---|---|---|---|
| Mounting: | Rear Panel Mounting | Interface: | PS2, USB Are Available |
| MOQ: | 1pcs | MTTR: | < 30min |
| Actuation Force: | 1.2N+/-0.1N | ||
| High Light: | 30min MTTR Keyboard Mouse Touchpad,PS2 Keyboard Mouse Touchpad,2 Backlights Waterproof Keyboard Touchpad |
||

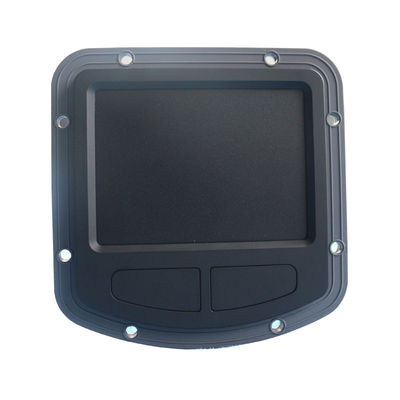

Ultra Thin IP65 Touchpad Panel Mount Compact with Mouse Buttons Black
Model NO: K-TEK-M73TP-IL
DESCRIPTION: IP65 Sealed Touchpad with 2 backlight mouse buttons under touchpad for left and right clicking with short stroke of 0.4mm, the electronics controller module shielded and protected with one ultra thin aluminum backplate, with mounting holes along with the rear plate for rear panel mounting.
Dimensions: 73.0 x 73.0 mm (front panel)
TECHNICAL SPECIFICATION:
| ITEM | SPECIFICATION | |
| Mechanical | Key | 2 keys, aluminum |
| Key top style | Non-protuberant Keys | |
| Front Plate | Aluminum | |
| Key Travel | 0.4mm | |
| Touchpad thickness | 1.3 mm PCB thickness inclusive of mylar layer | |
| Key switch lifespan | more than 5 Mio actuations | |
| Touchpad lifespan | 5 Mio times | |

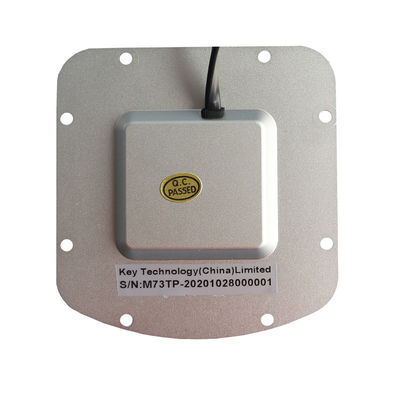

| Back Metal Cover | Rear side integrated electronics protected by a ultra thin aluminum backplate | |
| Actuation Force | 1.2N+/-0.1N | |
| Mounting Rack | Aluminum alloy | |
| Dimension |
Touchpad: 61.0mm x 45.0mm; Front Mounting Panel: 73.0 x 73.0 mm Rear Mounting Panel: 87.0mm x 90.0mm |
|
| Interface | PS2, USB are available, Y type cable with ports of PS2 and USB | |
| Electrical | Power supply | 5 VDC ± 0.25V |
| Protection level | IP65 (front panel) | |
| EMC Standard | EN 55032:2015 EN 55035:2017 | |
| Power consuming | ≤1.00W(dynamic) | |
| ≤0.2W(static) | ||
| Contact Material | Gold/Carbon | |
| Environmental | Operating temperature | -20ºC~+ 60º C |
| Storage temperature | - 30ºC~+ 70ºC | |
| Operating RH | 30～90% | |
| Atmospheric pressure | 60～106Kpa. | |
| Reliable | Certificates | RoHS compliant, CE and FCC certified. |
| MTBF | >20000h | |
| MTTR | < 30min | |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) | |
| Packing Details | Each unit to a suitable brown box, suitable brown boxes to a standard export carton. | |
