Rugged Touchpad Silicone Industrial Desktop Keyboard For Hygienic

Certification
China Key Technology ( China ) Limited certification
China Key Technology ( China ) Limited certification
Customer Reviews
Your professionalism and loyalty is unparalleled.We are proud to maintain a partnership with Key technology and we want to express our satisfaction.

—— Pascal LESAGE

Die Geschäftsbeziehung zwischen uns und Key Technologie ist lange gewachsen und wir freuen uns auf weitere gute und erfolgreiche Jahre.

—— Jens Radenbach

I'm Online Chat Now

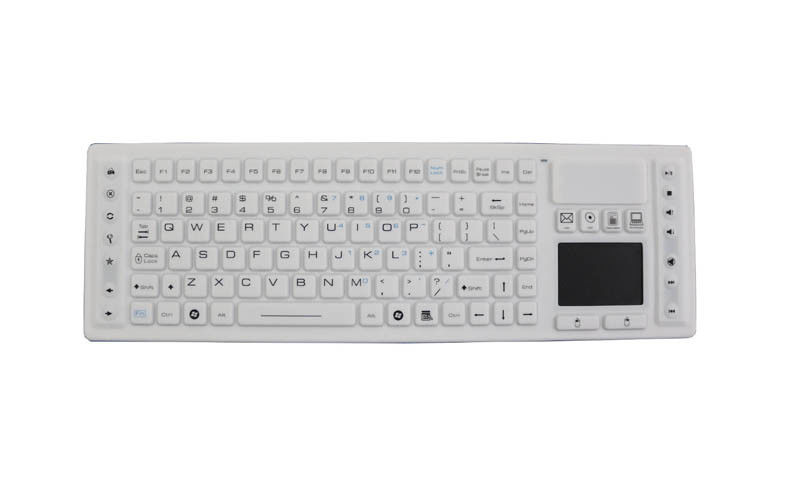

Rugged Touchpad Silicone Industrial Desktop Keyboard For Hygienic

Rugged Touchpad Silicone Industrial Desktop Keyboard For Hygienic
Rugged Touchpad Silicone Industrial Desktop Keyboard For Hygienic Rugged Touchpad Silicone Industrial Desktop Keyboard For Hygienic Rugged Touchpad Silicone Industrial Desktop Keyboard For Hygienic Rugged Touchpad Silicone Industrial Desktop Keyboard For Hygienic

Large Image :  Rugged Touchpad Silicone Industrial Desktop Keyboard For Hygienic

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number: K-TEK-M415TP-FN-DT-WF
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: To be quoted
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month

Rugged Touchpad Silicone Industrial Desktop Keyboard For Hygienic

Description
Application: Medical / Industrial Material: Silicone Rubber
Mouse: No Backlight: No
Color: White/black Washable: No
Key: 109 Keys Antibacterial: Yes
G.W.: 0.80KGs Qty: 1 Pieces
High Light:

Rugged Touchpad Industrial Desktop Keyboard

,

Silicone Industrial Desktop Keyboard

,

Hygienic Silicone Rubber Keyboard



Rugged Touchpad Silicone Industrial medical Keyboard Desktop For Hygienic 2.4G wireless





Sepcial Features:



1.109 keys IP68 dynamic sealed & ruggedized industrial silicone rubber contamination-proof 2.4G wireless keyboard with full keyboard functionalities with FN (F1, F2...F11, F12) on upper line



2. sealed & ruggedized tough touchpad for fast and accurate cursor position, gold-finnish PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise



3.with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment


4. this washable keyboard is an ideal solution to withstand to most chemicals and liquids under harsh environment, standard alone desk top version. Standard US office layout.



5.DIMENSIONS: 415.0mm x 132.0mm x 20.0mm (L x W x H)



MECHANICAL DATA:



Key 109keys
Key top style Protuberant rectangular keys with tactile feeling.

Touchpad cover

Composite

Switch life more than 10 million of operations.
Cable Length

Standard 2.0m, customized length available.

G.W. 0.8Kg
Packing standard

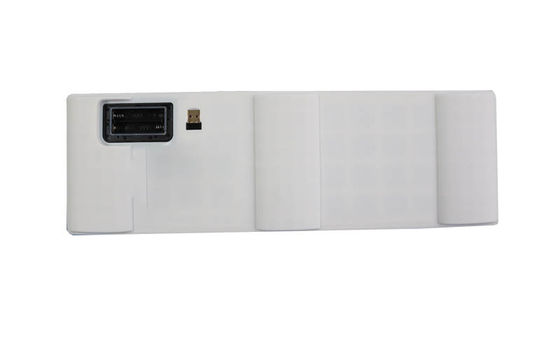

Rugged Touchpad Silicone Industrial Desktop Keyboard For Hygienic 0

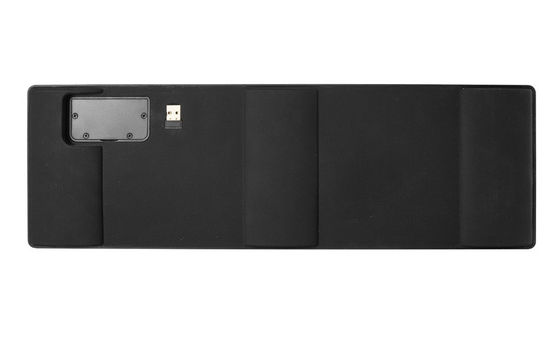

Rugged Touchpad Silicone Industrial Desktop Keyboard For Hygienic 1


MAIN FEATURE:
Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust,
dirt, grease and corrosive liquids, which means it can withstand directed hose water, disinfectants, environmental
contaminants and heavy industrial use.
With firm tactile key feel, key travel 1.50mm key travel.

Actuation Force: Square key: 1.2N+/-0.1N Rectangular key: 2N+/-0.1N
Integrated touchpad.
Integrated numeric keypad.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
Enclosure: industrial silicone.
Low-profile keys for easy cleaning
Key life: 5 millions


MECHANICAL DATA
Key: 109 keys
Key top style: Protuberant rectangular keys with tactile feeling.
Touchpad cover: Composite
More than Lifetime 5 million strokes
Mutual Capacitance sensing
X/Y position sensing resolution: 40 counts/mm
X/Y position reporting: Relative
Tracking speed: Maximum 1,016 m/sec
Power supply voltage: 5V DC ±0.25V
Current rating (active mode): 17.0 mA
G.W.: 0.80KGs
Wireless type.



ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: 50mA

EMC Standard: EN 55032:2015 EN 55035:2017
Lifespan> 5 years
Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).



ENVIRONMENTAL ADAPTABILITY

Operating temperature:-20℃ to +60℃
Storage temperature: :-30℃ to +70℃

Saline mist:96h, IEC60512-6

Damp heat test at +40℃: 21 days, IEC 60512-6

Dry heat test at +85℃: 10 days, IEC 60512-6

Operating RH: 100%


RELIABILITY
RoHS , CE, FCC
Protection Level: IP68
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min


Rugged Touchpad Silicone Industrial Desktop Keyboard For Hygienic 2
