Product Details:
|
| Trackball Material: | Black Harden Resin | Resolution: | 400DPI |
|---|---|---|---|
| Ball Diameter: | 38mm/1.50" | Interface: | Aviation Plug |
| Protection Level: | IPX6 | Certificates: | RoHS Compliant, CE And FCC Certified |
| Name: | Trackball Pointing Device | ||
| High Light: | Military Trackball Industrial Wired Mouse,600DPI Industrial Wired Mouse,Aviation Plug Panel Mount Trackball Mouse |
||

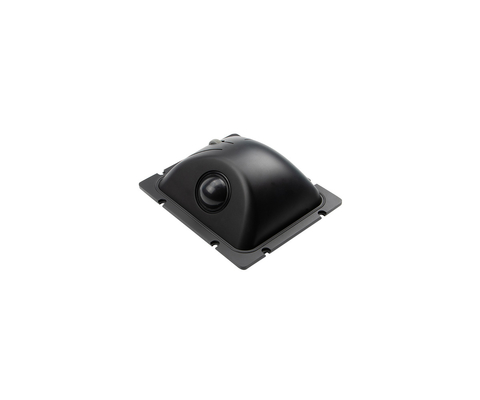

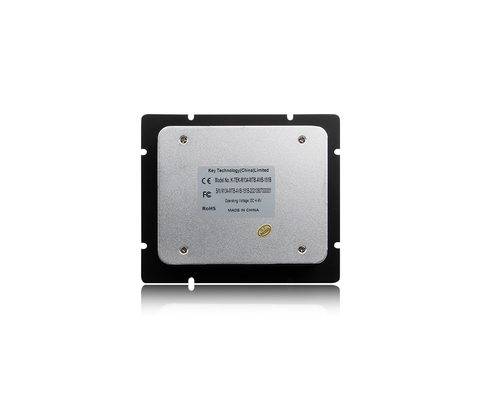

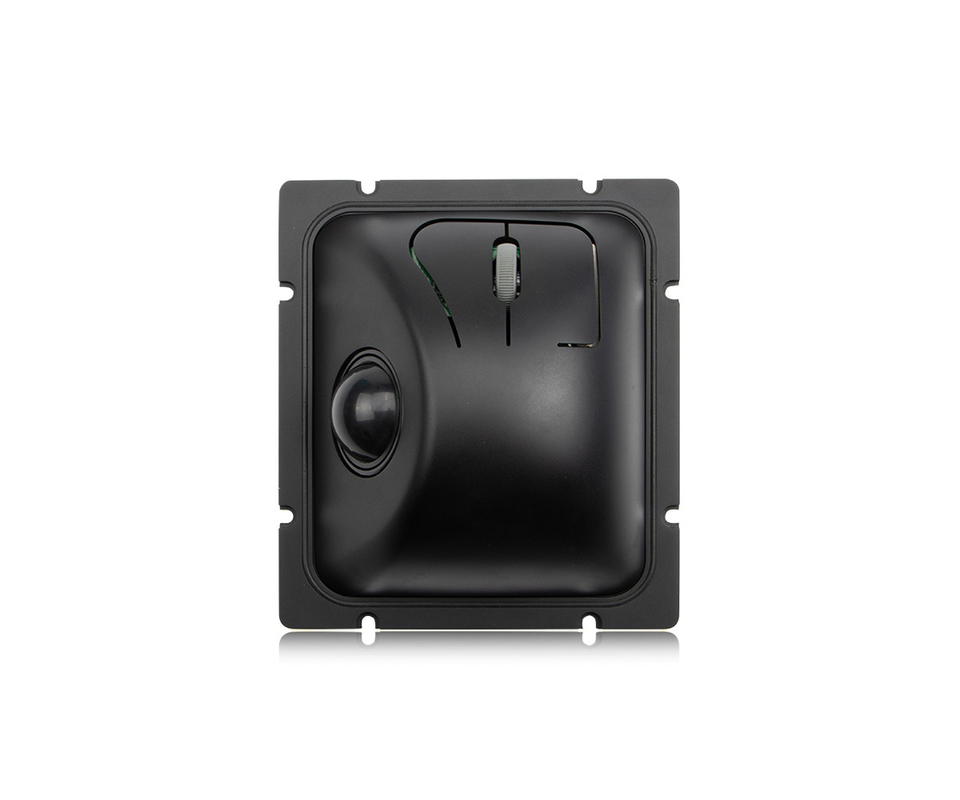

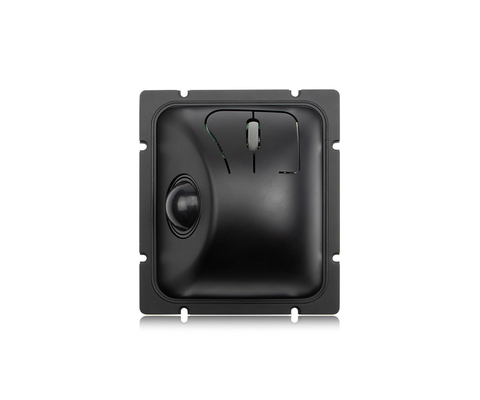

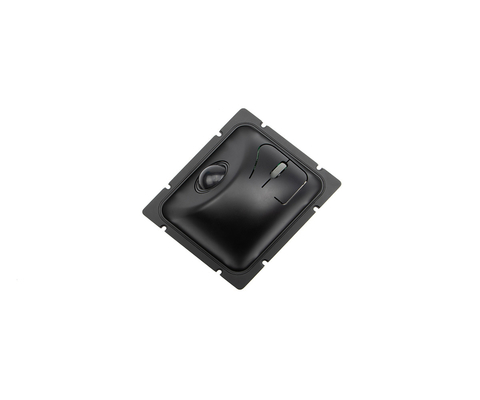

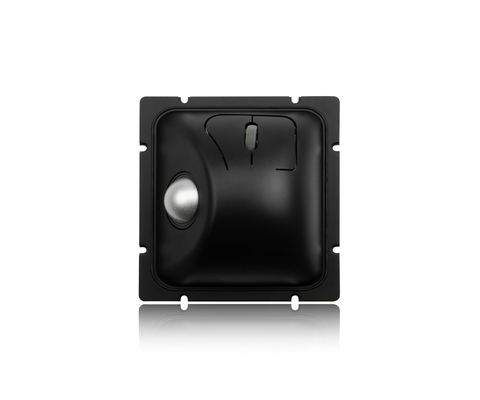

Military EMC IPX6 38mm Black Harden Resin Trackball
TRACKBALL POINTING DEVICE TECHNICAL SPECIFICATION:
| MECHANICAL DATA | |
| Keys | 2 keys |
| Key switch | Omron micro key switch technology |
| Key travel | 1.20mm±0.10mm |
| Actuation Force | 1.2N±0.2N |
| Trackball | 38mm ergonomic handheld thumb ball mouse |
| Trackball lifespan | > 2 millions scrolling |
| G.W. | 0.6KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 17mA |
| EMC Standard | MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity) |
| Lifespan | > 5 years |
| Interface | Aviation plug, USB available |
| Cable length | Standard 2.0m, customized length available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc: | |
| CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads | |
| CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads | |
| CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads | |
| CS106 Conducted Susceptibility, Transients, Power Leads | |
| CS112 Electrostatic Discharge Susceptibility | |
| CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection | |
| CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation | |
| CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads | |
| RE101 25Hz -100kHz Radiated Emissions, Magnetic Field | |
| RE102 10kHz - 18GHz Radiated Emissions, Electric Field | |
| RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field | |
| RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field | |
| MIL-STD-810F (wide temperature, shock, salt mist, vibration, salt mist, fungus, humidity). | |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
|
RoHS, CE, FCC, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity) |
|
| Protection Level | IPX6 |
| Key Lifespan | >1 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
