Product Details:
|
| Keys: | 16 Keys | Interface: | Dot Matrix |
|---|---|---|---|
| Material: | Metal Stainless Steel | Key Travel: | 0.45mm±0.05mm |
| Key Size: | 10.0mm X 10.0mm For Normal Keys | Dimensions: | 60.0mm X 60.0mm (L X W ) |
| High Light: | Vandal Proof 16 Key Keypad,Compact Format 16 Key Keypad,Dot Matrix Panel Mount Keypad |
||
Vandal Proof Industrial Keypad 16 Keys Compact Format IP65 With Dot Matrix Circuit
DESCRIPTION: 16 keys compact format IP65 washable vandal proof stainless steel industrial Compact Format Numeric keypad with dot matrix circuit with socket on the back panel of PCB for connecting electronics controller, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, high quality durable rear stainless steel plate with mounting holes and water-tight gasket for easy mounting and tightening to enclosure or panel. With Industrial Backlight (red/blue/white/green) optional. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.
DIMENSIONS: 60.0mm × 60.0mm (front panel)
| METAL KEYPAD ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Gold-on-Gold key switch technology PCB |
| Interface | Dot matrix |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos-To be confirmed). |
| MECHANICAL DATA | |
| Front Plate | 1.5mm thickness super quality brushed stainless steel |
| Back Plate | 1.0mm thickness super quality stainless steel |
| Actuator/keys | 16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key. |
| Key top style | Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
| Key Size | 10.0mm x 10.0mm for normal keys |
| Key Travel | 0.45mm±0.05mm |
| Actuation Force | 2.5N±0.2N for key 10.0mm x 10.0mm (pressure point) |
| Switch Life | more than 1 million of operations |
| G.W. | 0.40KGs |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating Temperature | -20℃ to +65℃ |
| Storage Temperature | -30℃ to +75℃ |
| Operating RH | 30-90% |
| Atmospheric Pressure | 60-106Kpa |
| Saline Mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| MINI KEYPAD RELIABILITY | |
| RoHS Compliant, CE and FCC, ESD | |
| Protection Level | IP65 dynamic (front panel) |
| Vandal Resistant | IK09 |
| Key Lifespan | >1 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS |
Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |

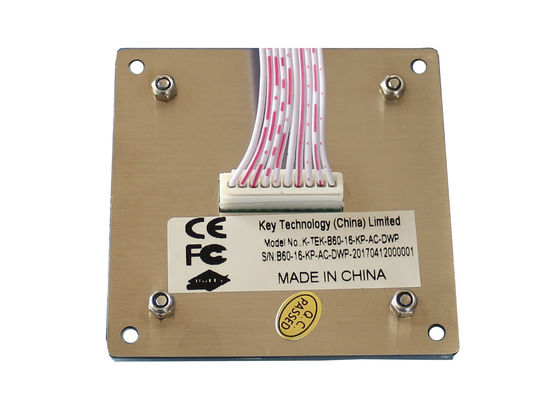

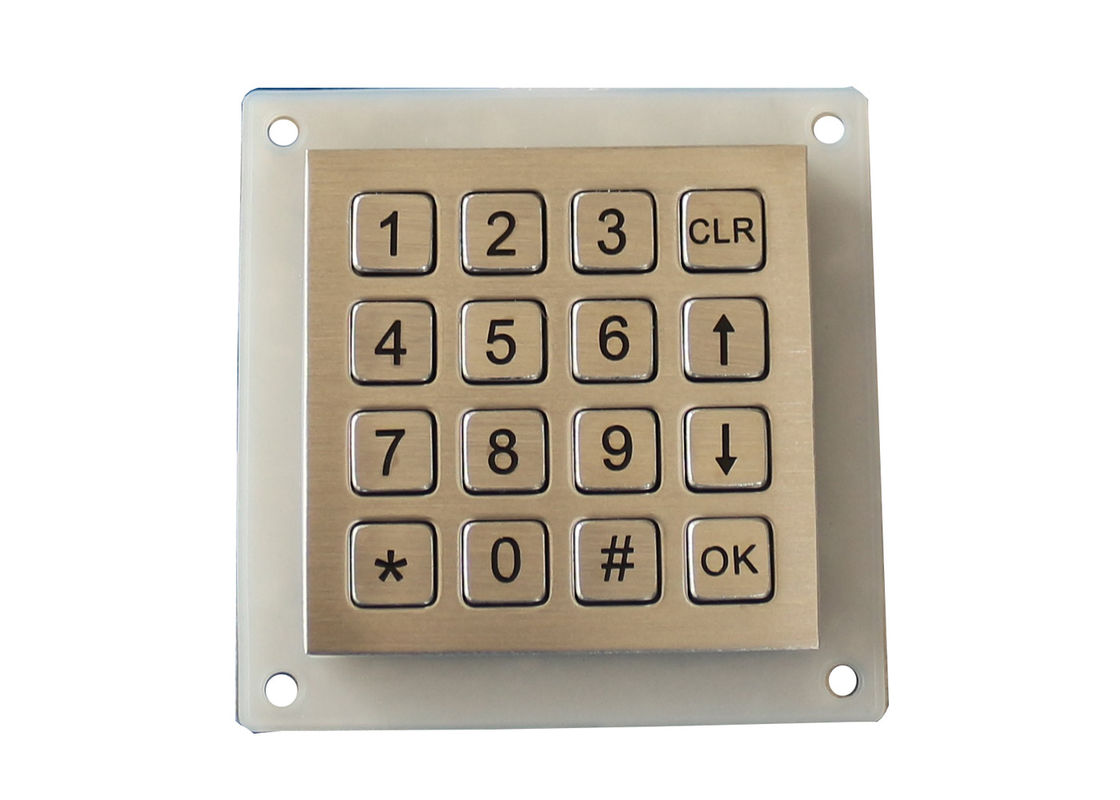

INDUSTRIAL KEYPAD Actual photos:
