IP67 Industrial Metal Keyboard Long Stroke Backlit USB 800DPI

IP67 Industrial Metal Keyboard Long Stroke Backlit USB 800DPI
IP67 Industrial Metal Keyboard Long Stroke Backlit USB 800DPI IP67 Industrial Metal Keyboard Long Stroke Backlit USB 800DPI

Large Image :  IP67 Industrial Metal Keyboard Long Stroke Backlit USB 800DPI

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number: K-TEK-A343-OTB-FN-BL-DWP
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: To be quoted
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month

IP67 Industrial Metal Keyboard Long Stroke Backlit USB 800DPI

Description
Keys: 84 Switch Life: More Than 5 Million Of Operations
OS:: All Windows, Linux, Unix, Mac OSX Interface: PS2, USB Available
Key Travel: 2mm Dimensions: 343.0mm X 125.0mm (front Panel)
High Light:

IP67 Industrial Metal Keyboard

,

Long Stroke Backlit Metal Keyboard

,

800DPI Backlit Mechanical Keyboard

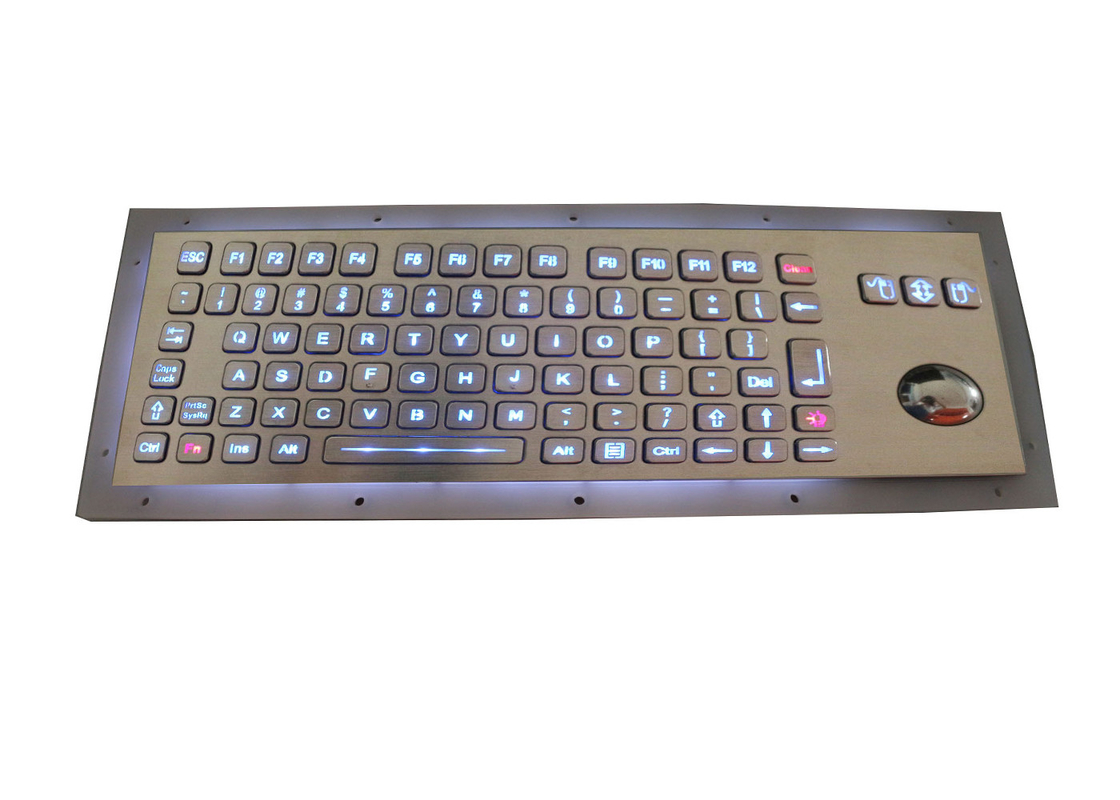

DESCRIPTION: 84 keys compact format IP67 static vandal proof stainless steel industrial keyboard with IP68 dynamic rated washable 38.0mm stainless steel optical trackball module with 800DPI resolutions for fast and accurate cursor position with extremely smooth operation without any noise, function keys F1, F2..F10, F11, F12 are on the top panel for easy operation, industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, IP68 dynamic trackball module with direct drain pipe is optional, no rust risk and anti-salt spray Corrosion. Stainless steel key caps etched out via special professional way and filled with transparent epoxy for backlight out, with adjustable industrial blue or red backlight included. Rear panel mount with mounting holes. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.



DIMENSIONS: 343.0mm x 125.0mm (front panel)

IP67 Industrial Metal Keyboard Long Stroke Backlit USB 800DPI 0



Main Features:

Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.

Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.

Waterproof execution according to IP67 protection from top panel, top stainless steel plate with threaded bolts for easy tightly mounting to enclosure or panel.

An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation.

Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.

Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.

Ease of customizing with multiple languages, to accommodate foreign or custom variants.

Complete electronic modules including controller in close consultation with our customers are available.

PS/2, USB connection plug and play with PC via PC existing OS driver, no needing of install separate driver.



Applications:


This Keyboard is mainly targeted for use for:
A: unsupervised or semi -supervised positions of varied access applications,
B: internet terminals and information kiosks at universities,
C: shopping malls, hotels, airports, railway stations and other public areas,
D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.





MECHANICAL DATA:



Actuator/keys 84 keys, super quality SUS304 brushed stainless steel
Key top style Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
Key travel 2.0mm
Actuation Force 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
Switch life more than 5 million of operations.

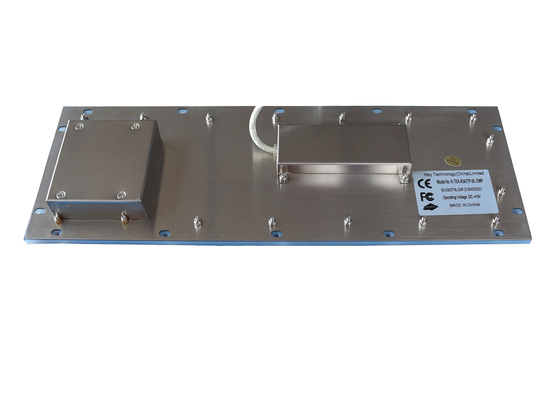

Front Plate 1.5mm thickness super quality brushed stainless steel
Back Plate 3.0mm thickness brushed & oxidized aluminium
Tracker ball
IP68 dynamic 800DPI optical trackball
G.W. 1.80KGs
Dimensions 343.0mm x 125.0mm (front panel)



ELECTRICAL DATA:

  • Supply Voltage: +5V DC +/-5%
  • Current Rating: appr. 30mA
  • EMC Standard: EN 55032:2015, EN 55035:2017
  • Lifespan > 5 years
  • Switch Contact Material: Carbon-on-Gold key switch technology PCB.
  • Interface: PS2, USB available
  • OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).



ENVIRONMENTAL ADAPTABILITY:

  • Operating temperature:-20oC to +60oC
  • Storage temperature: -30oC to +70oC
  • Operating RH: 30-90%
  • Atmospheric pressure: 60-106Kpa.
  • Saline mist: 96 hours, IEC 60512-6
  • Damp heat test at + 40oC: 21 days, IEC 60512-6
  • Dry heat test at + 85oC: 10 days, IEC 60512-6



RELIABILITY:

  • RoHS Compliant, CE and FCC, ESD
  • Protection Level: IP67(front panel)
  • Vandal resistant IK08
  • Key Lifespan >5 million actuations
  • MTBF >20000H
  • MTTR <30min
