IK09 Panel Mounted Keyboard IP67 SUS304 With Optical Trackball

IK09 Panel Mounted Keyboard IP67 SUS304 With Optical Trackball
IK09 Panel Mounted Keyboard IP67 SUS304 With Optical Trackball IK09 Panel Mounted Keyboard IP67 SUS304 With Optical Trackball

Large Image :  IK09 Panel Mounted Keyboard IP67 SUS304 With Optical Trackball

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number: K-TEK-B312-OTB-KP-FN-DWP
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: To be quoted
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month
Detailed Product Description
Keys: 107 Keys Switch Life: More Than 1 Million Of Operations
Operating Temperature: -20oC To +60oC Vandal Resistant: IK09
Protection Level: IP67 G.W.: 1.60KGs
High Light:

IK09 Panel Mounted Keyboard

,

Optical Trackball Panel Mounted Keyboard

,

SUS304 Vandal Resistant Keyboard




DIMENSIONS: 312.0mm x 105.0mm (top panel)



MECHANICAL DATA
ELECTRICAL DATA
Actuator/keys: 107 keys, super quality SUS304 brushed stainless steel
Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 10.0mm x 10.0mm for normal keys, 10.0mm x 28.0mm for enter key, 10.0mm x 70.0mm for space bar.
Key travel: 0.45mm
Actuation Force: 3.2N+/-0.1N for key 10.0mm x 10.0mm (pressure point) 4.0N+/-0.1N for key 1..0mm x 28.0mm (pressure point)
Switch life: more than 1 million of operations.
Front Plate: 1.5mm thickness super quality brushed stainless steel
Back Plate: 1.5mm thickness brushed & oxidized aluminium
G.W.: 1.60KGs
Dimensions: 312.0mm x 105.0mm (front panel) , 330.0mm x 123.0mm (back panel)
Supply Voltage: +5V DC +/-5%
Current Rating: 300mA
EMC Standard: EN 55032:2015, EN 55035:2017

Lifespan > 5 years
Switch Contact Material: Gold-on-Gold key switch technology PCB.
Interface: PS2, USB available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20℃ to +60℃
Storage temperature: -30℃ to +70℃
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40℃: 21 days, IEC 60512-6
Dry heat test at + 85℃: 10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level: IP67 (front panel)
Vandal resistant IK09
Key Lifespan >1 million actuations
MTBF >20000H
MTTR <30min



APPLICATION
This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

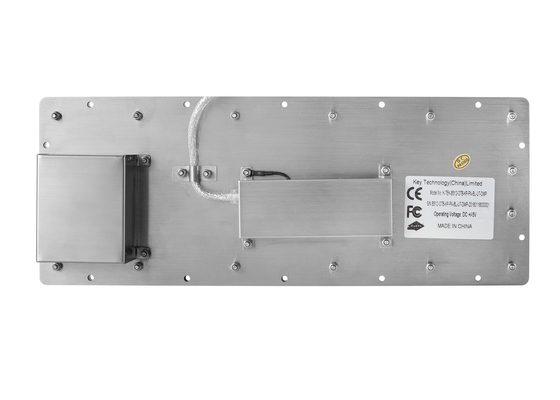

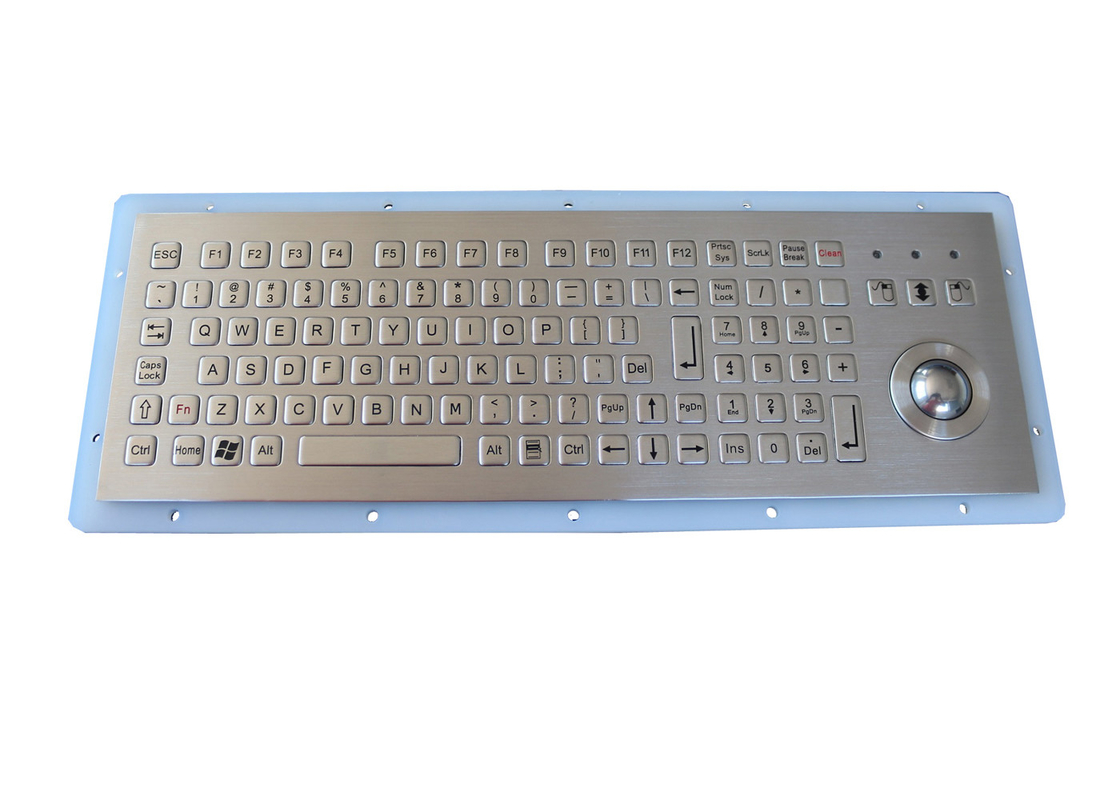

IK09 Panel Mounted Keyboard IP67 SUS304 With Optical Trackball 0IK09 Panel Mounted Keyboard IP67 SUS304 With Optical Trackball 1
