Dynamic Sealed Ruggedized Backlit Keyboard Panel Mounted Keyboard With Matrix FPC Cable

Dynamic Sealed Ruggedized Backlit Keyboard Panel Mounted Keyboard With Matrix FPC Cable
Dynamic Sealed Ruggedized Backlit Keyboard Panel Mounted Keyboard With Matrix FPC Cable Dynamic Sealed Ruggedized Backlit Keyboard Panel Mounted Keyboard With Matrix FPC Cable Dynamic Sealed Ruggedized Backlit Keyboard Panel Mounted Keyboard With Matrix FPC Cable

Large Image :  Dynamic Sealed Ruggedized Backlit Keyboard Panel Mounted Keyboard With Matrix FPC Cable

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS
Model Number: K-TEK-M284-AC-FN-BL-OEM
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: To be quoted
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2-3 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month
Detailed Product Description
Application: Military/industrial Connection: Matrix FPC, PS2 & USB Optiona
Material: Silicone Rubber Key Life: 5 Million
Key: 89 Keys G.W.: 0.5KGs
High Light:

Dynamic Sealed Ruggedized Backlit Keyboard

,

Panel Mounted Ruggedized Backlit Keyboard

,

FPC Cable Panel Mounted Keyboard

Sealed Ruggedized Backlit Keyboard With Matrix FPC Cable Panel Mounted Keyboard

DESCRIPTION:

1:89 keys IP67 dynamic sealed and ruggedized silicone rubber keyboard with matrix FPC flex cable

2:Carbon-on-gold key switch technology with long stroke (1.50mm)

3:With extremely good tactile feeling for fast and accurate data input without any noise

4:With durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment

5:Top panel mounted with top ruggedized industrial silicone cover & military matrix PCB for ruggedized structure and easy mounting and sealing, adjustable industrial backlight included

6:Military level:

7:Dimensions: 284.00mm x 109.00mm (L x W )


MECHANICAL DATA:

Key

 89keys

Switch Contact Material
Carbon-on-Gold key switch technology with gold PCB.
Current Rating
30mA (non-backlight), 300mA (with backlight on)
Key top style
Protuberant rectangular keys with tactile feeling.

EMC Standard

EN 55032:2015 EN 55035:2017



MIL-STD-810F (wide temperature, shock, vibration, humidity)

Lifespan

5 years

Cable length:

Standard 2.0m, customized length available.

Interface

matrix FPC, PS2 & USB optional.

G.W.

0.5KGs

Dimensions:

284.00mm x 109.00mm (L x W )

Key life

5 millions

ENVIRONMENTAL ADAPTABILITY
Operating temperature:-40℃ to +85℃
Storage temperature: :-50℃ to +90℃
Saline mist:96h, IEC60512-6
Damp heat test at +40℃: 21 days, IEC 60512-6
Dry heat test at +85℃: 10 days, IEC 60512-6
Operating RH: 100%
Atmospheric pressure: 60-160Kpa Shock: 3 x 11 ms pulses of 50g on each of 3 axes

RELIABILITY
RoHS , CE, FCC
Protection Level: IP67
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min

MAIN FEATURES:
keyboard with adjustable white color backlighting, while backlighting makes this keyboard ideal for aviation or vehicle applications where night
vision goggles are necessary.
Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality.
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquidsX, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
Special durable-coating for excellent mechanical and chemical resistance.
With firm tactile key feel, key travel 1.50mm key travel.
Actuation Force: Square key: 1.2N+/-0.1N Rectangular key: 2N+/-0.1N
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
FPC for connecting separate electronics controller.
Enclosure: industrial silicone
Key life: 5 millions

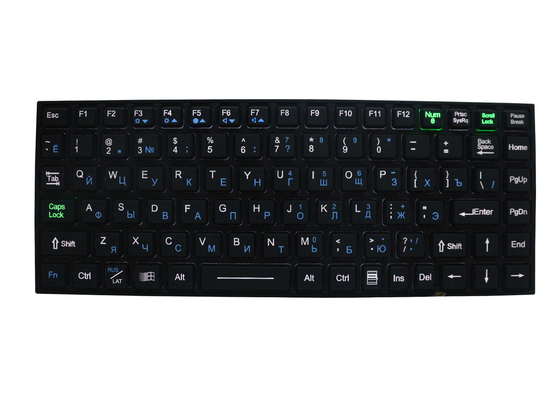

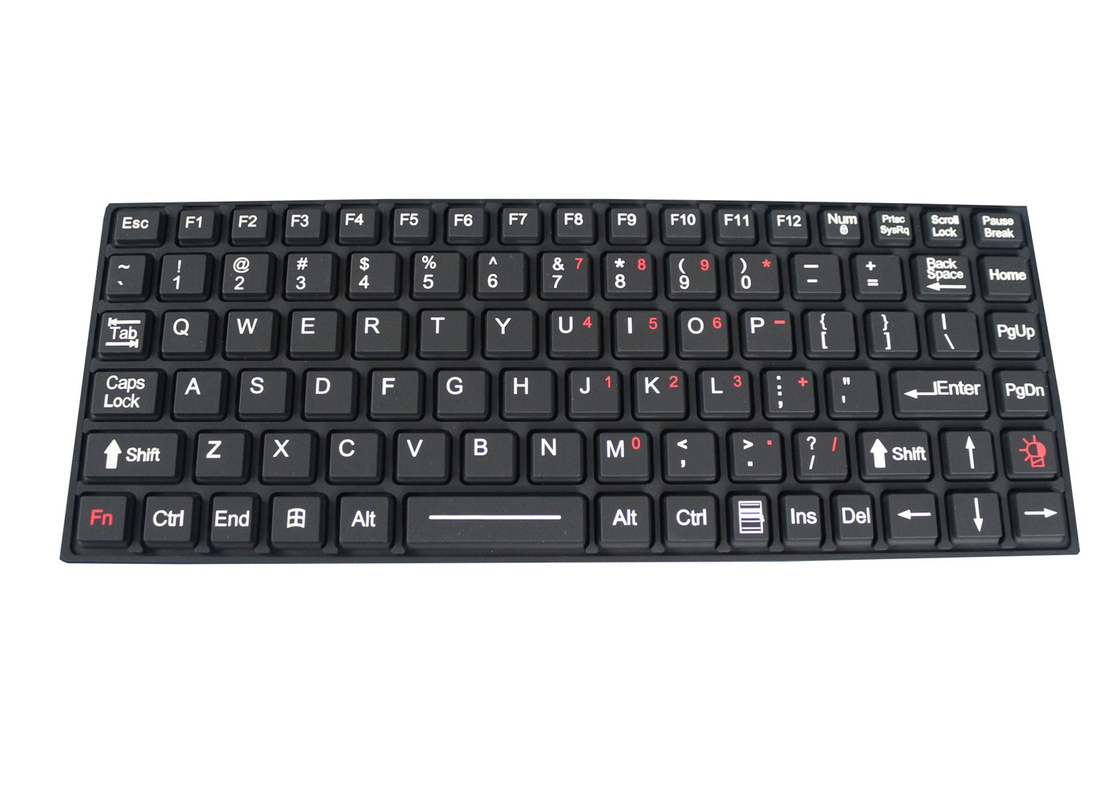

Actual photos

Dynamic Sealed Ruggedized Backlit Keyboard Panel Mounted Keyboard With Matrix FPC Cable 0
Dynamic Sealed Ruggedized Backlit Keyboard Panel Mounted Keyboard With Matrix FPC Cable 1
