38mm Militaryl Level Mechanical Trackball Module Vandal Proof Black Harden Resin Ball

38mm Militaryl Level Mechanical Trackball Module Vandal Proof Black Harden Resin Ball
38mm Militaryl Level Mechanical Trackball Module Vandal Proof Black Harden Resin Ball 38mm Militaryl Level Mechanical Trackball Module Vandal Proof Black Harden Resin Ball

Large Image :  38mm Militaryl Level Mechanical Trackball Module Vandal Proof Black Harden Resin Ball

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, ISO 9001-2015
Model Number: K-TEK-38-MTB-AVB-ML
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: To be quoted
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month

38mm Militaryl Level Mechanical Trackball Module Vandal Proof Black Harden Resin Ball

Description
Resolution: 400 DPI Ball Diameter: 38mm/1.50"
Interface: PS2, USB, Protection Level: IP65 (static)
Power Supply: +5V DC +/-5% Material: Black Harden Resin Ball
Name: Trackball Pointing Device Operating Temperature: -40ºC~+ 60º C
Operating RH: 30~90%
High Light:

38mm trackball module

,

Vandal Proof trackball module

,

IP65 mechanical trackball module



38mm Militaryl Level Mechanical Trackball Module Vandal Proof Black Harden Resin Ball





TRACKBALL DESCRIPTION: 38.0mm (1.5’') vandal proof IP65 militaryl level mechanical trackball module, black harden resin ball with 400DPI resolutions, military grade with wide temperature of -40°C to +60°C, anti-vibration, USB/PS2 interface, rear panel mounted solution.
DIMENSIONS: 60.30mm x 60.30mm x 25.43mm(front panel)



APPLICATIONS

MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;

MILITARY: Army, Navy, Air force

MARINE: Ship, Fleet, Navigation controls



MAIN FEATURE

Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.

Rate sensitive dynamic resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.



TRACKBALL POINTING DEVOCE TECHNICAL SPECIFICATION:

ITEM SPECIFICATION
Mechanical Data Ball diameter 38mm/1.50’'
  Track ball lifespan > 5 years
  Dimension 38 .1 mm diameter for ball
Interface PS2, USB are available
Trackball Electrical Power supply +5V DC +/-5%
  Protection level IP65 (static)
  EMC Standard EN 55032:2015, EN 55035:2017
  Power consuming ≤1.00W(dynamic)
    ≤0.2W(static)
Environmental Operating temperature -40ºC~+ 75º C
  Storage temperature -45ºC~+ 85ºC
  Operating RH 30~90%
  Atmospheric pressure 60~106Kpa.
Reliable Certificates RoHS compliant, CE and FCC certified
  MTBF >20000h
  MTTR < 30min
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android
Trackball Packing Details Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.

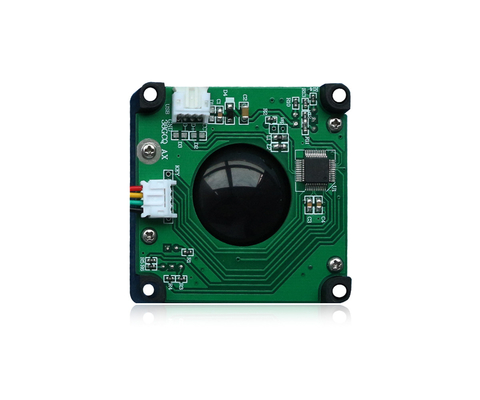

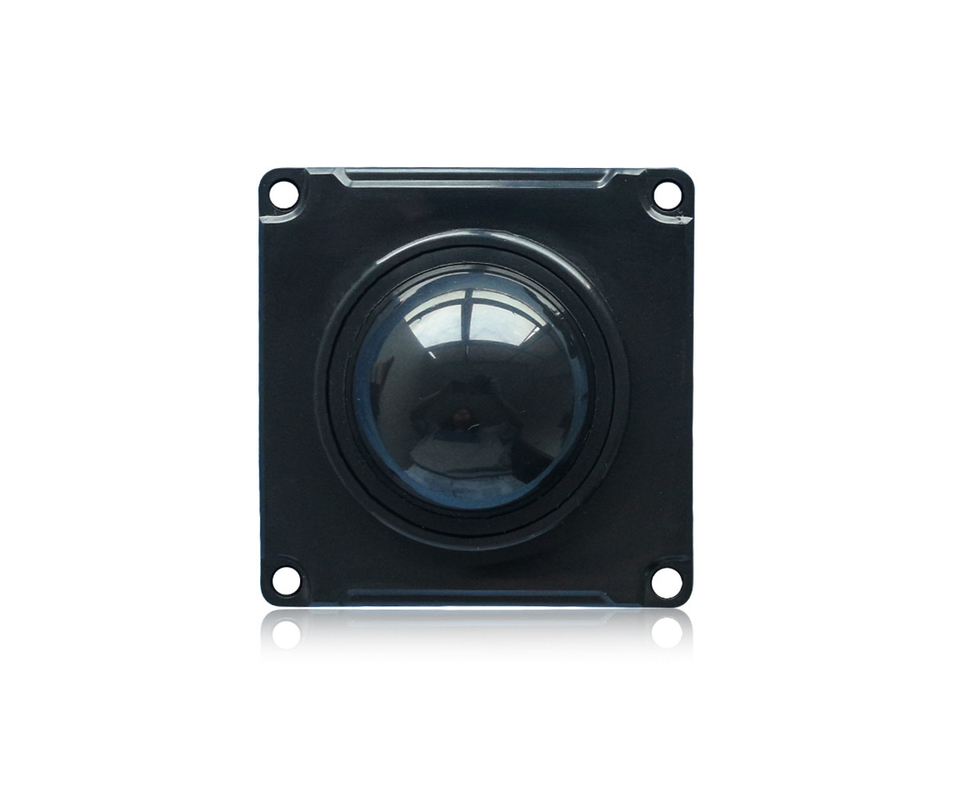

TRACKBALL PICTURE:
 38mm Militaryl Level Mechanical Trackball Module Vandal Proof Black Harden Resin Ball 0
38mm Militaryl Level Mechanical Trackball Module Vandal Proof Black Harden Resin Ball 1

38mm Militaryl Level Mechanical Trackball Module Vandal Proof Black Harden Resin Ball 2



KEY TECHNOLOGY CHINA LIMITED

38mm Militaryl Level Mechanical Trackball Module Vandal Proof Black Harden Resin Ball 3

38mm Militaryl Level Mechanical Trackball Module Vandal Proof Black Harden Resin Ball 4
