Product Details:
|
| Colour: | White | Trackball Diameter: | 50 Mm |
|---|---|---|---|
| Interface: | USB Or PS/2 Interface | Trackball Material: | Resin |
| High Light: | White Trackball Pointing Device,50mm Small Trackball Mouse,Resin Trackball Pointing Device |
||

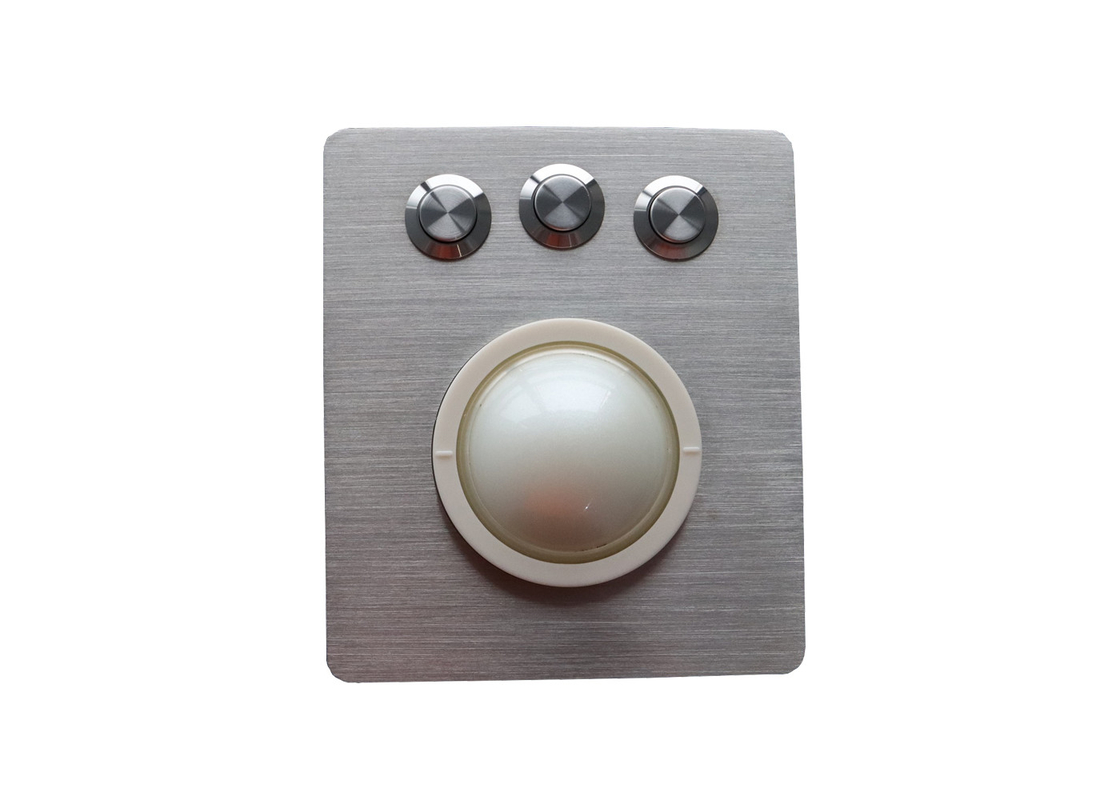

Description: IP65 vandal proof Trackball with IP68 rated washable 50.0mm Laser trackball module with white hardened resin ball, with sealed 3 metal mouse buttons for left and right clicking, middle scrolling button with ball rolling. 1.5 mm top stainless plate and threaded bolts for top panel mounting solution. Industrial USB interface. Industrial level.
Dimensions: 100.0mm x 116mm (top panel)
TECHNICAL SPECIFICATION
| ITEM | SPECIFICATION | |
| Mechanical | Key | 3 keys, quality brushed stainless steel |
| Key top style | Non-protuberant round Keys, | |
| Front Plate | Quality brushed stainless steel | |
| Key Travel | 0.45mm | |
| Ball diameter | 50.0mm(19mm, 25mm, 38mm also available) | |
| Key switch lifespan | more than 1 Mio actuations | |
| Track ball lifespan | > 10 Mio revolutions | |

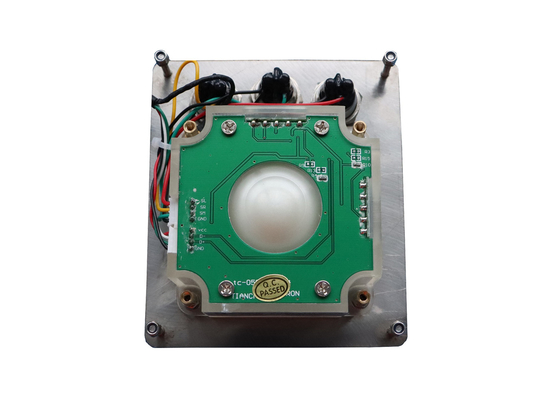

| Back | Rear side integrated electronics part | |
| Actuation Force | 3.2N+/-0.1N | |
| Mounting Rack | Aluminum alloy | |
| Dimension |
Dimensions with 50mm track ball, Front plate (L x Wx H): 100 x 116 x 50.80mm |
|
| Interface | USB are available | |
| Electrical | Power supply | +5V DC +/-5% |
| Protection level | IP65 (front panel), IK09 | |
| EMC Standard | EN 55032:2015, EN 55035:2017 | |
| Power consuming | ≤1.00W(dynamic) | |
| ≤0.2W(static) | ||
| Contact Material | Gold/Carbon | |
| Environmental | Operating temperature | -20ºC~+ 60º C |
| Storage temperature | - 30ºC~+ 70ºC | |
| Operating RH | 30～90% | |
| Atmospheric pressure | 60～106Kpa. | |
| Reliable | Certificates | RoHS compliant, CE and FCC certified,ESD |
| MTBF | >20000h | |
| MTTR | < 30min | |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) | |
| Packing Details | Each unit to a suitable brown box, suitable brown boxes to a standard export carton. | |
Main Features:
1. Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
2. All Metal Mechanicals provide for rugged, smooth, long lasting and no noisy operation.
3. Available 50mm diameter Stainless steel for smooth, quick and durable operation and precise cursor positioning.
4. Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast
5. Retaining one-pixel positioning accuracy when the ball is moved slowly.
6. Can be mounted horizontally, and vertically or any directions.
7. No metal bearings inside, operation is very smooth, and easy without any noise.
Applications:
This industrial trackball is mainly targeted for use for:
A: unsupervised or semi -supervised positions of varied access applications,
B: internet terminals and information kiosks at universities,
C: shopping malls, hotels, airports, railway stations and other public areas,
D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
