Product Details:
|
| Panel: | Top Panel Mount | Interface: | USB, PS/2 Or Dot Matrix |
|---|---|---|---|
| Key Travel: | 0.45mm Short Stroke | Colour: | Brrushed Stainless Steel |
| Dimensions: | 116.0mm X 27.0mm | GW: | 0.25 Kgs |
| Key Number: | 4 Keys | ||
| High Light: | 4 Keys Industrial Metal Keypad,IP65 dynamic Industrial Metal Keypad,matrix interface Stainless Steel Keypad |
||
IP65 4 Keys Industrial Metal Keypad Without Electronic Controller
DESCRIPTION: 4 Keys IP65 dynamic Vandal proof Stainless Steel industrial matrix function keypad with industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, without electronics controller, with top panel mounting.
|
MECHANICAL DATA
Switching material: Gold-on-Gold
Actuation Force: 2N+/-0.1N (pressure point)
Key Travel: 0.45mm
Lettering: laser engraving, or raised letters.
Front panel: brushed stainless steel
Actuator/keys materials: stainless steel
Dimensions: 116.0mm x 27.0mm
G.W. 0.25KGs
Connect interface:matrix or with external controller for USB/PS2 interface optional
|
|
ELECTRICAL DATA
Power supply voltage: 5V DC.
Power Consumption: Under 150mW for operation, under 50mW for non-operation
Electrical lifetime> 5 years
EMC Standard:: EN 55032:2015, EN 55035:2017
OS: All windows, Linux, Unix, Mac OSX
|
|
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20°C to +60°C
Storage temperature:-30°C to +70°C
Operating RH: 30 ～ 90%
Atmospheric pressure: 60 ～ 106Kpa.
|
|
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level: IP65(front panel)
Vandal resistant IK09
Key Lifespan >1 million actuations
MTBF >20000h
MTTR <30min
|

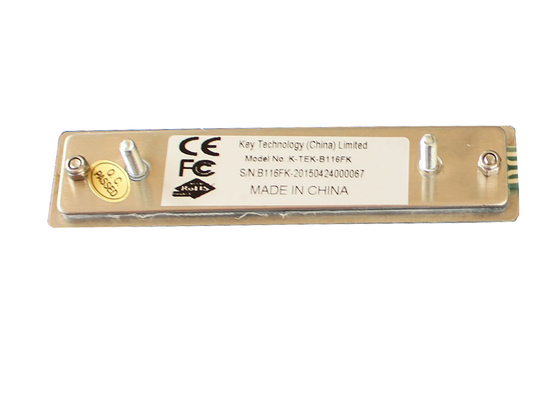

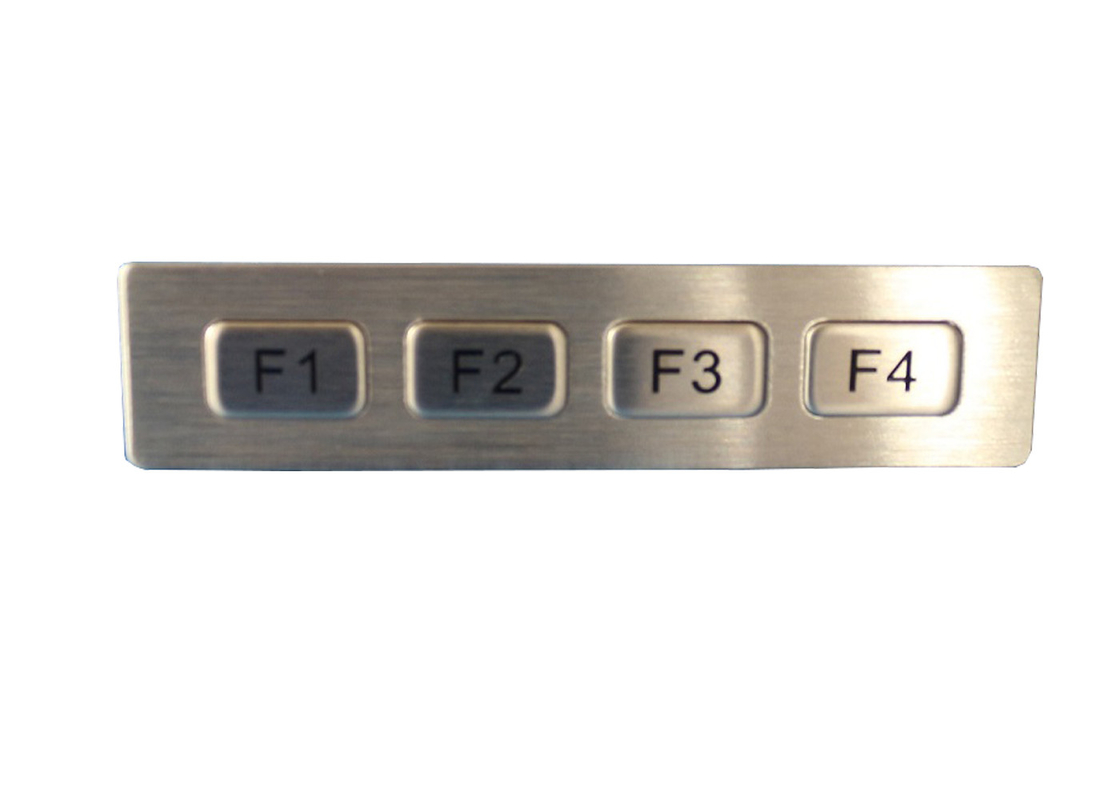

Actual Photo:
