Product Details:
|
| Dimension: | 107.0mm X 120.0mm X 52.1mm ( L X W X H) | Trackball Resolution: | 800DPI |
|---|---|---|---|
| Trackball Diameter: | 19mm, 25mm, 38mm 50mm Also Available | Material: | Stainless Steel |
| Key Travel: | 1.00 Mm Long Stroke | Interface: | PS2, USB |
| High Light: | PS2 USB Metal Trackball Mouse,800DPI Metal Trackball Mouse,Metal Optical Trackball Mouse |
||
TECHNICAL SPECIFICATION
| ITEM | SPECIFICATION | |
| Mechanical | Key | 3 keys, quality brushed stainless steel |
| Key top style | sealed round stainless steel buttons with tactile feeling | |
| Front Plate | Quality brushed stainless steel | |
| Key Travel | 1.00 mm | |
| Ball diameter | 38.1mm/1.50" (19mm, 25mm, 38mm 50mm also available) | |
| Key switch lifespan | more than 1 Mio actuations | |
| Track ball lifespan | > 5 years | |
| Back Metal Cover | Rear side integrated electronics protected by a metal cover | |
| Actuation Force | 3.2N+/-0.1N | |
| Mounting Rack | Desktop version | |
| Dimension |
Dimensions with 38mm track ball, 107.0mm x 120.0mm x 52.1mm ( L x W x H) |
|
| Interface | PS2, USB are available, Y type cable with ports of PS2 and USB | |
| Electrical | Power supply | +5V DC +/-5% |
| Protection level | IP67 dynamic (front panel), IK09 | |
| EMC Standard | EN 55032:2015, EN 55035:2017 | |
| Power consuming | ≤1.00W(dynamic) | |
| ≤0.2W(static) | ||
| Contact Material | sealed stainless steel buttons | |
| Environmental | Operating temperature | -20ºC~+ 60º C |
| Storage temperature | - 30ºC~+ 70ºC | |
| Operating RH | 30～90% | |
| Atmospheric pressure | 60～106Kpa. | |
| Reliable | Certificates | RoHS compliant, CE and FCC certified, ESD |
| MTBF | >20000H | |
| MTTR | < 30min | |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) | |
| Packing Details | Each unit to a suitable brown box, suitable brown boxes to a standard export carton. | |

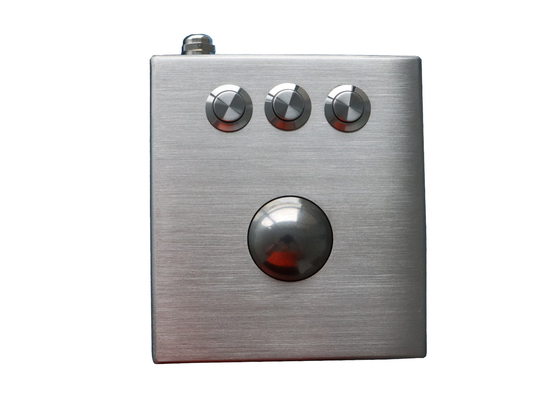

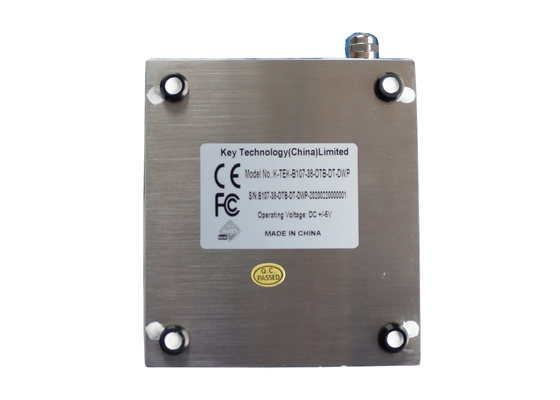

Product Pictures:
