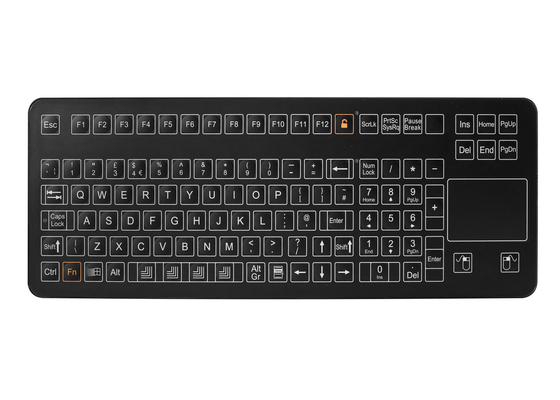

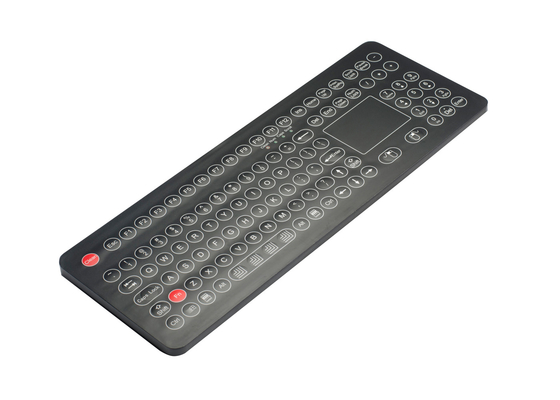

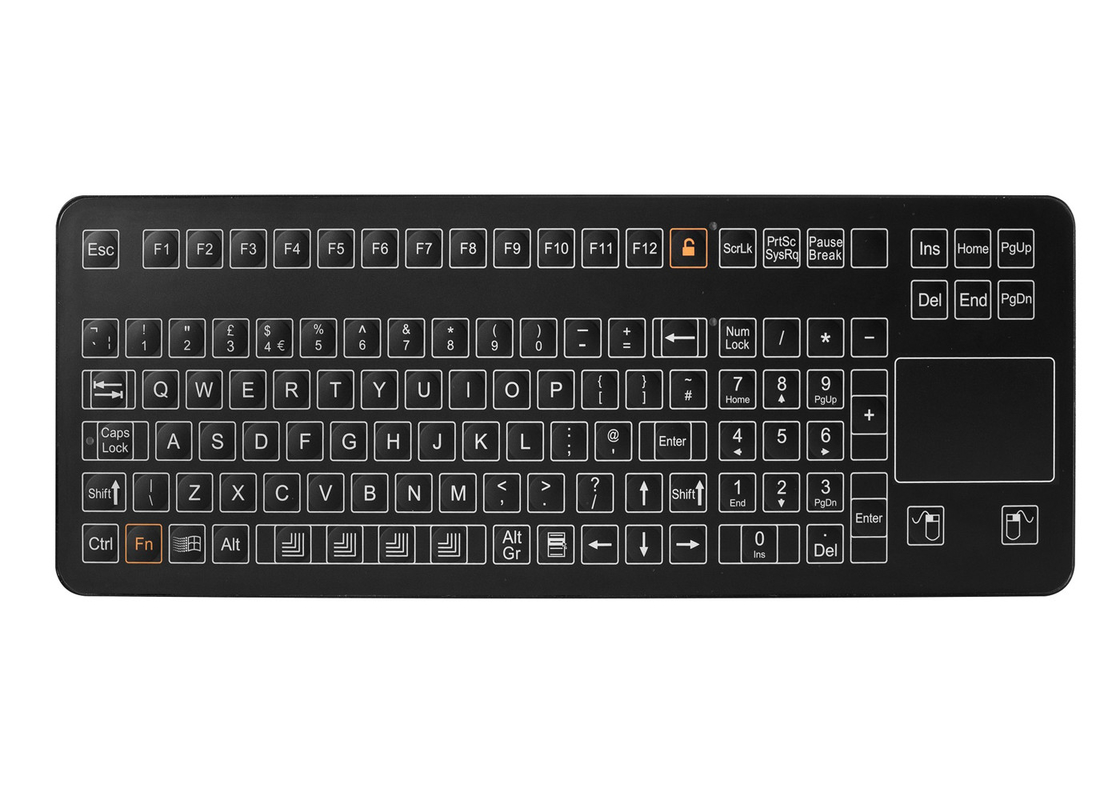

108 Keys Easy Clean Medical Polyester Membrane Desktop Keyboard
DESCRIPTION: 108 keys compact format IP68 rated membrane industrial keyboard with full keyboard functionalities with integrated numeric keypad and function keys on the upper line, IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position, totally sealed and ruggedized industrial PCB with super quality OMRON switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with red FN + Lock combination key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, surface mounted extremely flush with anti-microbial functionalities, the fonts printed on the film underneath will never fade, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, VESA mountable desk top version with robust ABS polycarbonate case.
DIMENSIONS: 399.0mm x 148.8mm x (20.0mm - 37.9mm) (L x W x H)
APPLICATIONS:
This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its numeric pad allows for easy data entry.
lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses etc
OTHER INDUSTRIES
MAIN FEATURES:
Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality Surface mounted extremely flush on 2.0mm industrial metal dome PCB with anti-microbial, durable and scratch-proof polyester for easy cleaning.
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
PS/2, USB connection cables that plug directly into computer like keyboard operations.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
This stylish, rugged medical keyboard is ideal for any application requiring a rugged enclosure and low profile.
”FN+Lock” keys combination prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtime.

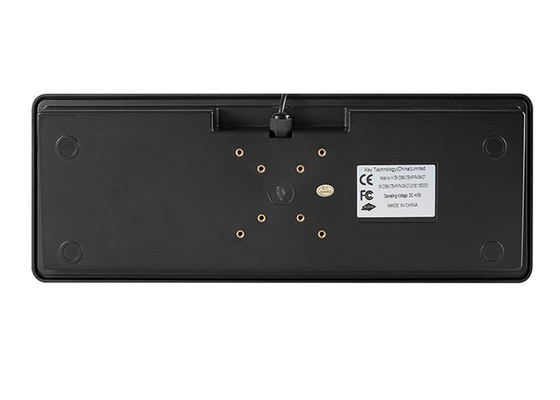

Enclosure: Robust ABS Polycarbonate Case including VESA 75 and AMPS mounting provisions through threaded inserts
MECHANICAL DATA:
Number of Keys: 108
Key switch Technology: OMRON switch technology with short stroke 0.45mm
Actuation Force: 1.4N+/-0.1N for key 13.0mm x 13.0mm (press point)
Key Travel: 0.45mm
Key switch Lifetime: 1 mil. operations
Protection Level: IP68 (front panel)
Mounting Type: stand alone mounting desk top .
Operating Temperature: -20 °C to +60 °C;
Colors: 2 (white, black)
G.W.: 1.40KGs
Key Dimensions (print area): 13.0mm x 13.0mm
Dimensions: 399.0mm x 148.8.0mm x (12.0mm + 27.0mm) (L x W x H)
TOUCHPAD:
Touchpad cover: Composite
Motion Detection
Method: capacitive
Resolution: 40 counts / mm
More than Lifetime 10 million strokes
Mutual Capacitance sensing
X/Y position sensing resolution: 40 counts/mm
X/Y position reporting: Relative
Output (self-detectable depending on cable): PS2 or USB
Tracking speed: Maximum 1,016 m/sec
Power supply voltage: 5 V DC ±0.25V
Current rating (active mode): 17 mA
ELECTRICAL DATA:
Supply Voltage: +5V DC +/- 5%
Current Rating: appr. 50mA
EMC Standard: EN 55032:2015; EN 55035:2017
Lifespan> 5 years
Interface: PS2, USB available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
RELIABILITY
RoHS , CE, FCC
Protection Level: IP68
Key Lifespan >1 million actuations
Touchpad lifespan > 10 million of times
MTBF >20000H
MTTR <30min
