38mm Industrial Trackball Pointing Device 400DPI Resolutions USB Trackball In Computer

38mm Industrial Trackball Pointing Device 400DPI Resolutions USB Trackball In Computer
38mm Industrial Trackball Pointing Device 400DPI Resolutions USB Trackball In Computer 38mm Industrial Trackball Pointing Device 400DPI Resolutions USB Trackball In Computer 38mm Industrial Trackball Pointing Device 400DPI Resolutions USB Trackball In Computer

Large Image :  38mm Industrial Trackball Pointing Device 400DPI Resolutions USB Trackball In Computer

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, ISO 9001-2015
Model Number: K-TEK-38-MTB-60
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: To be quoted
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2-3 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month

38mm Industrial Trackball Pointing Device 400DPI Resolutions USB Trackball In Computer

Description
Resolution: 400 DPI Ball Diameter: 38mm/1.50"
Interface: USB Protection Level: IP65
Power Supply: +5V DC +/-5% Material: Black Harden Resin Ball
Certificates: RoHS Compliant, CE And FCC Certified
High Light:

38mm Trackball Pointing Device

,

Industrial Trackball Pointing Device

,

400DPI Resolutions USB Trackball

38mm Industrial Trackball Pointing Device 400DPI Resolutions USB Trackball In Computer

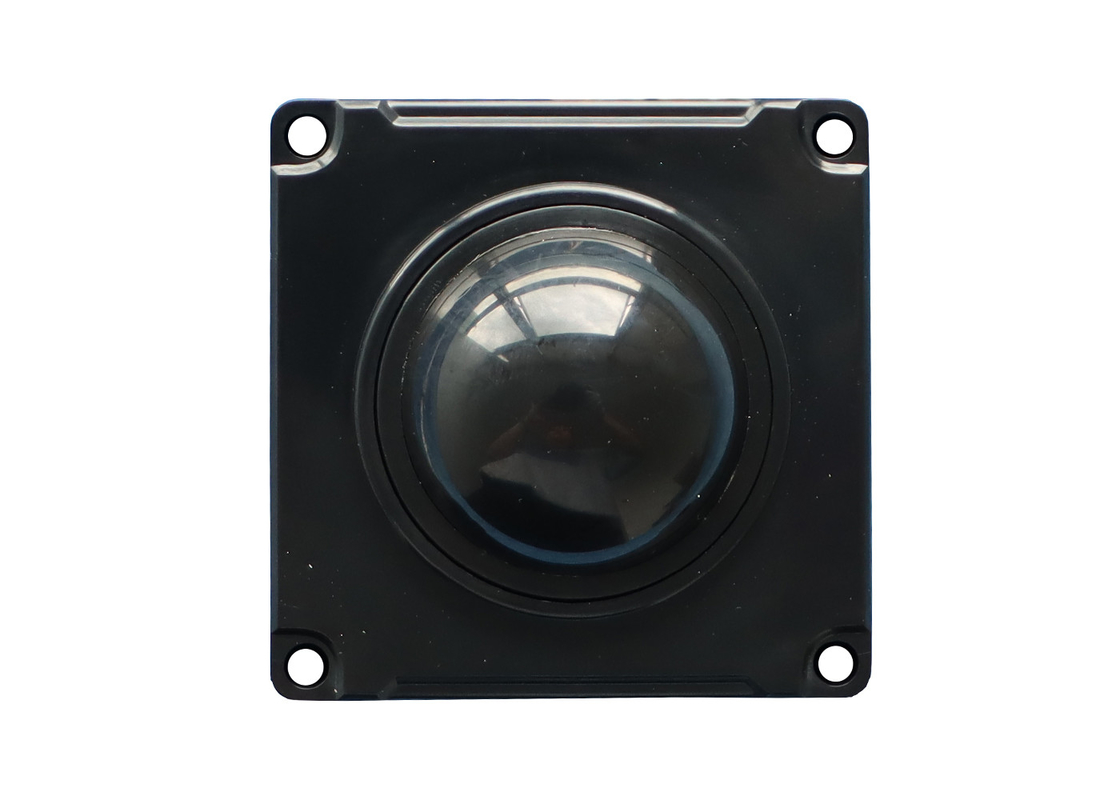

DESCRIPTION: 38mm (1.5’') vandal proof IP65 mechanical trackball module, black harden resin ball with 400DPI resolutions, anti-vibration, USB interface, rear panel mounted solution.

DIMENSIONS: 60.30mm x 60.30mm x 25.43mm(front panel)



APPLICATIONS

MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;

MILITARY: Army, Navy, Air force

MARINE: Ship, Fleet, Navigation controls



Trackball Pointing Device TECHNICAL SPECIFICATION:

ITEM SPECIFICATION
Mechanical Data Ball diameter 38mm/1.50’'
Track ball lifespan > 5 years
Dimension 38mm diameter for ball, 60.30mm x 60.30mm x 25.43mm
Interface USB
Electrical Power supply +5V DC +/-5%
Protection level IP65 (static)
EMC Standard EN 55032:2015, EN 55035:2017
Power consuming ≤1.00W(dynamic)
≤0.2W(static)
Environmental Operating temperature -20ºC~+ 60º C
Storage temperature - 30ºC~+ 70ºC
Operating RH 30~90%
Atmospheric pressure 60~106Kpa.
Reliable Certificates RoHS compliant, CE and FCC certified
MTBF >20000h
MTTR < 30min
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
Packing Details Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.

 38mm Industrial Trackball Pointing Device 400DPI Resolutions USB Trackball In Computer 0
38mm Industrial Trackball Pointing Device 400DPI Resolutions USB Trackball In Computer 1

38mm Industrial Trackball Pointing Device 400DPI Resolutions USB Trackball In Computer 2



38mm Industrial Trackball Pointing Device 400DPI Resolutions USB Trackball In Computer 3

38mm Industrial Trackball Pointing Device 400DPI Resolutions USB Trackball In Computer 4



                               FAQ

Q: Are you trading company or manufacturer ?

A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.



Q: How long is your delivery time?

A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.



Q: Do you provide samples ?

A: Yes, we could offer the sample of one quantity first before large quantity orders.



Q: What is your terms of payment ?

A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
If you have another question, pls feel free to contact us
.
