Product Details:
|
| Material: | Membrane | Backlight: | White |
|---|---|---|---|
| Mounting: | Top Panel With Thread Bolts | Interface: | USB Or PS/2 |
| Protection Level: | IP67 | Name: | Membrane Industrial Keyboard |
| High Light: | Ruggedized Industrial Membrane Keyboard,Backlight Industrial Membrane Keyboard,108 Keys membrane industrial keyboard |
||
108 Keys Ruggedized Industrial Membrane Keyboard OMRON Switch Technology With Backlight
DESCRIPTION: 108 keys IP67 dynamic rated industrial membrane keyboard with integrated numeric keypad and function keys on the upper line, IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position, 2.0mm thickness industrial PCB with OMRON switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with “FN+Lock” key combination for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, ruggedized and backed with 1.5mm stainless steel plate with brushed treatment, with top panel mounted solution. With adjustable white backlight included to fit for dim conditions.
DIMENSIONS: 410.0mm x 160.0mm (top panel)
Application:
| MECHANICAL DATA: | |
| Keys: | 108 keys |
| Key top style: |
OMRON switch technology with short stroke 0.45mm for stable and accurate data input
|
| Actuation Force: |
1.4N+/-0.1N for key 13.0mm x 13.0mm (press point)
|
| Switch life: | more than 1 million of operations. |
| G.W.: | 1.30KGs |
| Dimensions: |
410.0mm x 160.0mm (Front Panel)
|
| ELECTRICAL DATA : | |
| Supply Voltage: | +5V DC +/-5% |
| Current Rating: | appr. 250mA |
| EMC Standard: | EN 55032:2015, EN 55035:2017 |
| Lifespan | > 5 years |
| Interface: | PS2, USB available |
| OS: | All Windows, Linux, Unix, Mac OSX, Android |
| RELIABILITY: | |
| RoHS Compliant, CE and FCC, ESD | |
| Protection Level: | IP67(front panel) |
| Key Lifespan | >1 million actuations |
| MTBF |
>20000H |
| MTTR | <30min |
| ENVIRONMENTAL ADAPTABILITY : | |
| Operating Temperature: | -20oC to +60oC |
| Storage Temperature: | -30oC to +70oC |
| Operating RH: | 30-90% |
| Atmospheric Pressure: | 60-106Kpa |
| Saline mist: | 96 hours, IEC 60512-6 |
| Damp heat test at +40oC: | 21 days, IEC 60512-6 |
| Dry heat test at + 85oC: | 10 days, IEC 60512-6 |

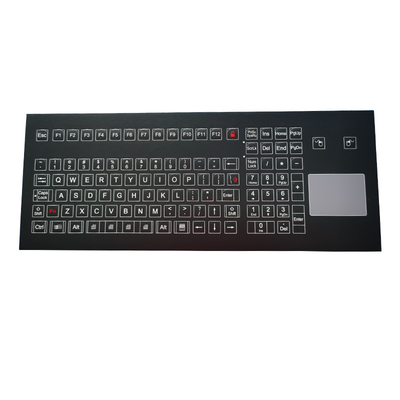

Industrial Membrane Keyboard Actual Photos:

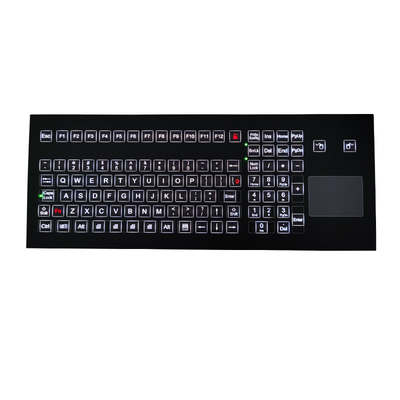

Keyboard with backlight

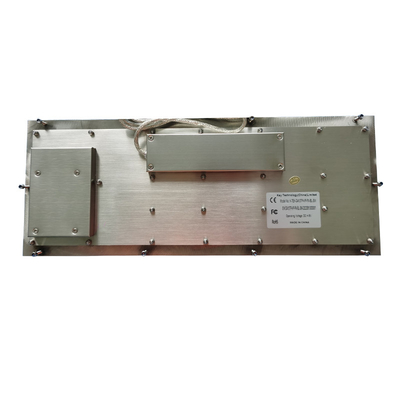

Back View
