Product Details:
|
| Material: | Membrane | Mounting: | Top Panel With Thread Bolts |
|---|---|---|---|
| Interface: | USB Or PS/2 | Protection Level: | IP67 |
| Name: | Membrane Industrial Keyboard | ||
| High Light: | custom industrial membrane keyboard,omron switch technology industrial membrane keyboard,food industry industrial membrane keyboard |
||
Custom Industrial Membrane Keyboard OMRON Switch Technology For Food Industry
DESCRIPTION: 81 keys compact format IP67 dynamic rated industrial membrane keyboard with function keys on the upperline, 2.0mm thickness industrial PCB OMRON switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with LOCK key for easy cleaning via lock/disable the entire keyboard without needing to take away the keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, the durable fonts printed on the film underneath never fade, with top panel mounted solution.
| MECHANICAL DATA: | |
| Keys: | 81 keys |
| Key top style: |
OMRON switch technology with short stroke 0.45mm for stable and accurate data input
|
| Actuation Force: |
1.4N+/-0.1N for key 14.0mm x 14.0mm (press point)
|
| Switch life: | more than 1 million of operations. |
| G.W.: | 1.0KGs |
| Dimensions: |
256.0mm x 150.0mm (Front Panel)
|
| ELECTRICAL DATA : | |
| Supply Voltage: | +5V DC +/-5% |
| Current Rating: | appr. 30mA |
| EMC Standard: | EN 55032:2015, EN 55035:2017 |
| Lifespan | > 5 years |
| Interface: | PS2, USB available |
| OS: | All Windows, Linux, Unix, Mac OSX, Android |
| RELIABILITY: | |
| RoHS Compliant, CE and FCC, ESD | |
| Protection Level: | IP67(front panel) |
| Key Lifespan | >1 million actuations |
| MTBF |
>20000H |
| MTTR | <30min |
| ENVIRONMENTAL ADAPTABILITY : | |
| Operating Temperature: | -20oC to +60oC |
| Storage Temperature: | -30oC to +70oC |
| Operating RH: | 30-90% |
| Atmospheric Pressure: | 60-106Kpa |
| Saline mist: | 96 hours, IEC 60512-6 |
| Damp heat test at +40oC: | 21 days, IEC 60512-6 |
| Dry heat test at + 85oC: | 10 days, IEC 60512-6 |
Industrial Membrane Keyboard Actual Photos:

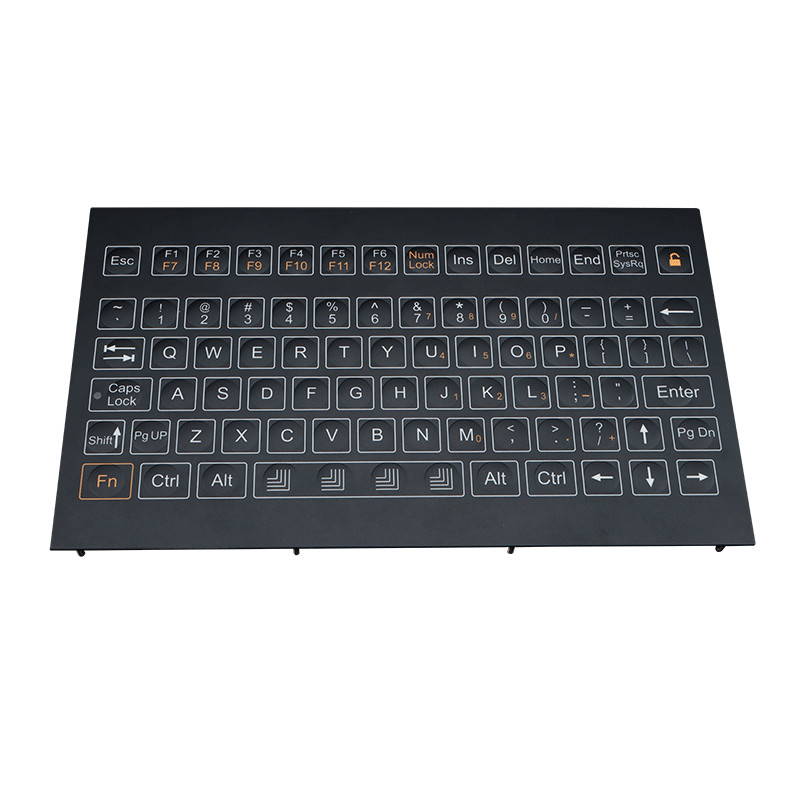

Keyboard without backlight

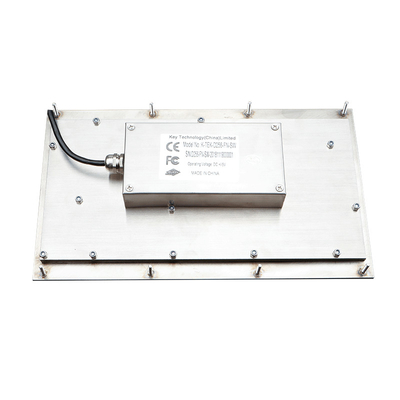

Back View
Q: Are you trading company or manufacturer ?
A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.
Q: How long is your delivery time?
A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.
Q: Do you provide samples ?
A: Yes, we could offer the sample of one quantity first before large quantity orders.
Q: What is your terms of payment ?
A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
If you have another question, pls feel free to contact us.
