Product Details:
|
| Material: | Silicone Rubber | Backlight: | White Or Red |
|---|---|---|---|
| Mounting: | Desktop Version | Interface: | USB |
| Protection Level: | IP68 | Name: | Vehicle Keyboard |
| High Light: | backlight usb rubber keyboard,ip68 usb rubber keyboard,desktop version usb rubber keyboard |
||
Backlight Vehicle Keyboard Desktop Version Industrial Rubber Keyboard
DESCRIPTION:
Application:
This keyboard provides full-size versatility in a rugged, compact design with the added convenience of an integrated touchpad. For working in low-light areas. This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. The tactile keys allows for easy data entry, while its robust polycarbonate case protects it against any hazardous environment.
MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc.;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc.
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
| VEHICLE KEYBOARD MECHANICAL DATA: | |
| Actuator/keys: |
89 keys and 2 mouse buttons |
|
Key top style:
|
Protuberant rectangular keys with tactile feeling.
|
| Key Size: |
15.8mm x 15.8mm for normal keys |
|
Touch pad |
Composite, Integrated capacitive multi-touch touchpad for mouse and scroll functionality.
|
|
Lifespan
|
over 5 millions actuation
|
|
Mutual capacitance sensing:
|
|
|
X/Y axis location detection resolution
|
40 Counts /mm
|
|
X/Y position report:
|
relative
|
|
Mouse tracking speed:
|
> 1.016 m/s
|
|
Supply voltage:
|
5V ± 0.25V
|
|
Rated current
|
17 mah
|
| GW. |
1.00KGs
|
| Dimensions: |
297.54mm x 192.03mm x 22.40mm (L x W x H)
|
| ELECTRICAL DATA : | |
| Supply Voltage: | +5V DC +/-5% |
| Current Rating: |
50mA (non-backlight) , MAX 250mA (with backlight on)
|
| Lifespan | > 5 years |
| Switch Contact Material: |
Industrial membrane key switch technology |
| Interface: | USB |
|
Cable length:
|
Standard 1.5 m, customized length available
|
| OS: |
All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) |
| RELIABILITY: | |
| RoHS Compliant, CE and FCC, ESD | |
| Protection Level: | IP68 |
| Key Lifespan | >5 million actuations |
| MTBF |
>20000H |
| MTTR | <30min |
| ENVIRONMENTAL ADAPTABILITY : | |
| Operating Temperature: | -20oC to +60oC |
| Storage Temperature: | -30oC to +65oC |
| Operating RH: | 100% |
| Atmospheric Pressure: | 60-106Kpa |
| Saline mist: | 96 hours, IEC 60512-6 |
| Damp heat test at +40oC: | 21 days, IEC 60512-6 |
| Dry heat test at + 85oC: | 10 days, IEC 60512-6 |
MAIN FEATURES:
Keyboard with industrial red adjustable backlighting included, while it makes this keyboard ideal for aviation or vehicle applications where night vision goggles are necessary.
Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquid, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
FN + Clean key-Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtime-User is notified of ‘lock down mode’ by brightly lit CLEAN KEY
Special durable-coating for excellent mechanical and chemical resistance With firm tactile key feel, key travel 1.0mm key travel.
Actuation Force: Square key: 0.6N+/-0.1N Rectangular key: 1.5N+/-0.1N
Integrated capacitive multi-touch touchpad for mouse and scroll functionality, fingerprint reader function optional.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
USB connection (compatible with USB 1.1, 2.0, and 3.x); 5VDC +/-10%, max 250 mA, plug directly into computer like keyboard operation, inclusive of waterproof CAP optional for USB connector
Enclosure: industrial silicone, Robust ABS Polycarbonate Case including VESA 75 and AMPS mounting provisions through threaded inserts.
Low-profile keys for easy cleaning
Key life: 5 millions
Actual Photos:

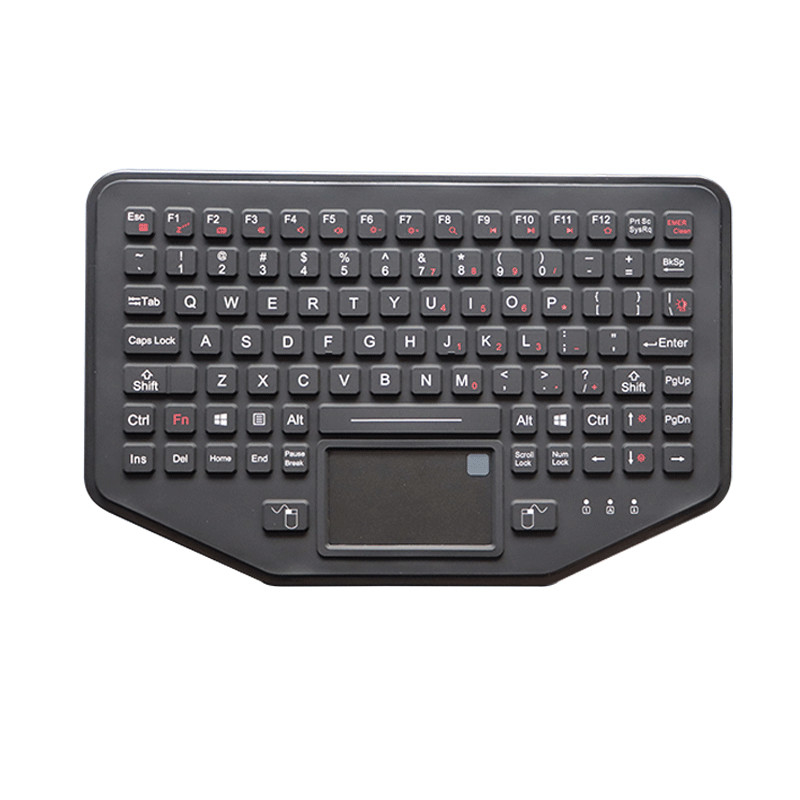

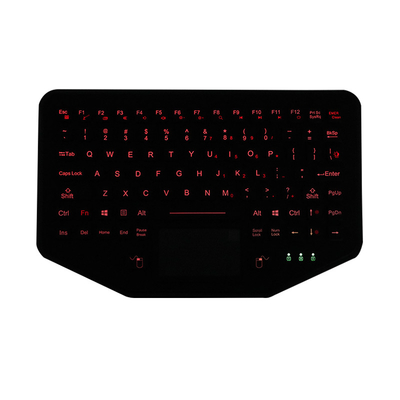

Keyboard with backlight

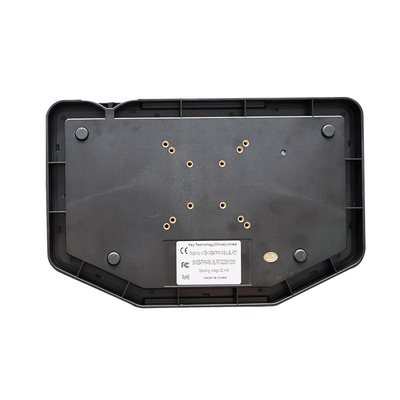

Back View
