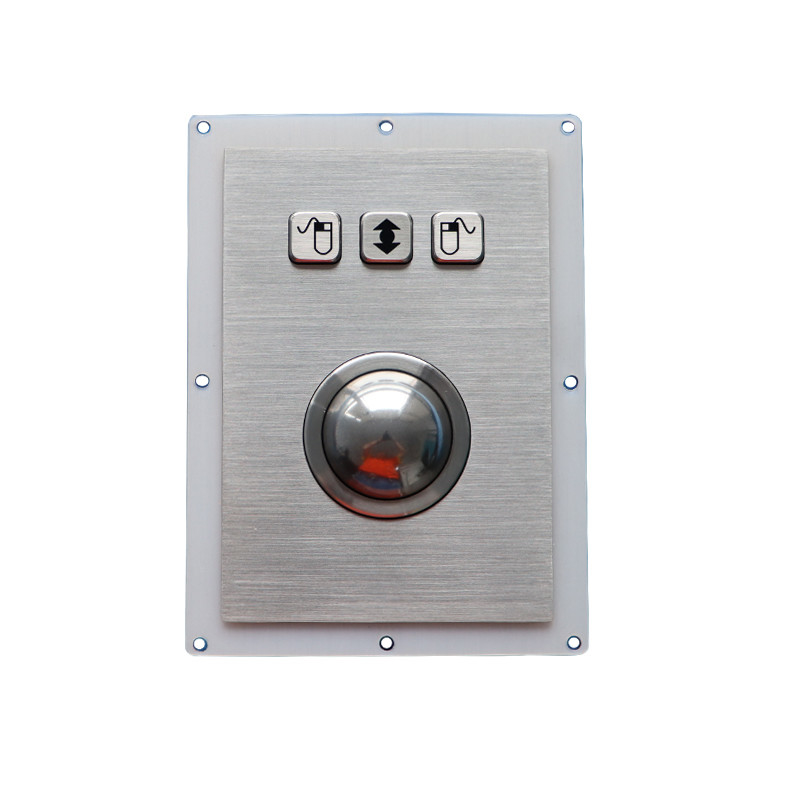

Product Details:
|
| Product Name: | Optical Trackball | Trackball Diameter: | 38.0 Mm |
|---|---|---|---|
| Interface: | USB Or PS/2 Interface | Trackball Material: | Stainless Steel |
| Key: | 3 Keys | ||
| High Light: | 38mm Optical Trackball Mouse,Metal Buttons Optical Trackball Mouse,IP67 Stainless Steel Optical Trackball |
||
TECHNICAL SPECIFICATION
| ITEM | SPECIFICATION | |
| Mechanical | Key | 3 keys, IP67 dynamic quality stainless steel button |
| Key top style | Protuberant Rectangular Keys | |
| Front Plate | Quality brushed stainless steel | |
| Key Travel | 2.0 mm | |
| Ball diameter | 38.1mm/1.50" (19mm, 25mm, 36mm 40mm also available) | |
| Key switch lifespan | More than 5 Mio actuations | |
| Track ball lifespan | ＞5 years | |
| Power Supply | +5V DC +/-5% | |
| Mounting Rack | Stainless steel | |
| Dimension |
Dimensions with 38mm track ball, Front plate (W x H): 87.0mm x 126.0mm |
|
| Interface | PS2, USB are available, Y type cable with ports of PS2 and USB | |
| Electrical | Power supply | 3.2N+/-0.1N |
| Protection level | IP67 | |
| EMC Standard | EN 55032:2015 , EN 55035:2017 | |
| Power consuming | ≤1.00W(dynamic) | |
| ≤0.2W(static) | ||
| Contact Material | Carbon on gold | |
|
Environmental
|
Operating temperature | -20ºC~+ 60º C |
| Storage temperature | - 30ºC~+ 70ºC | |
| Operating RH | 30～90% | |
| Atmospheric pressure | 60～106Kpa. | |
| Reliable | Certificates | RoHS compliant, CE and FCC certified, ESD |
| MTBF | >20000H | |
| MTTR | < 30min | |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). | |
| Packing Details | Each unit to a suitable brown box, suitable brown boxes to a standard export carton. | |
Main Features:
1. Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
2. All Metal Mechanicals provide for rugged, smooth, long lasting and no noisy operation.
3. Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast
4. Retaining one-pixel positioning accuracy when the ball is moved slowly.
5. Can be mounted horizontally, and vertically or any directions.
6. No metal bearings inside, operation is very smooth, and easy without any noise.
