Product Details:
|
| Material: | Metal Stainless Steel | Colour: | Brushed Stainless Steel |
|---|---|---|---|
| Trackball Version: | Mechanical Trackball | Mounting Way: | Movable Desktop Version |
| Dimension: | 107.0mm X155.0mm (front Panel) | Interface: | USB Or PS/2 Interface |
| High Light: | Vandal Proof Industrial Mechanical Trackball,38mm Industrial Mechanical Trackball,Washable Metal Trackball Mouse |
||

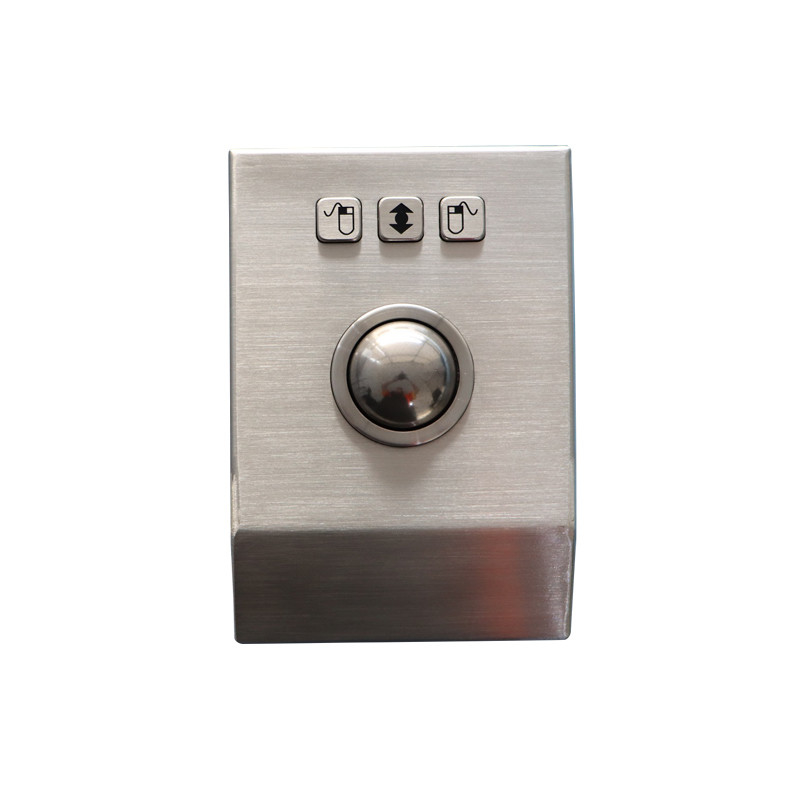

Washable 38mm Mechanical Trackball Vandal Proof Movable Stand Trackball Mouse
1. IP65 dynamic rated vandal proof Stainless Steel Stand alone inclined desk top trackball
2. IP65 dynamic mechanical trackball module with 400 DPI
3. Trackball module protected and shielded by stainless steel housing
4. Movable stand alone inclined desk top version or mountable stand alone inclined desk top versions with stainless steel housing.
5. 38mm diameter metal stainless steel trackball
|
ITEM |
SPECIFICATION |
|
|
Mechanical |
Key |
3 keys, quality brushed stainless steel |
|
Key top style |
Protuberant Rectangular Keys, |
|
|
Front Plate |
Quality brushed stainless steel |
|
|
Key Travel |
2.0mm |
|
|
Ball diameter |
38.1mm/1.50" (19mm, 25mm, 36mm 40mm also available) |
|
|
Key switch lifespan |
more than 5 Mil actuations |
|
|
Track ball lifespan |
> 10 Mio revolutions |
|
|

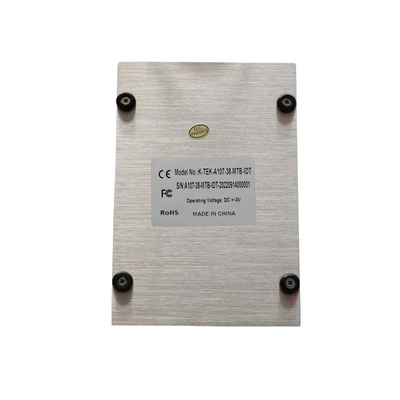

Back Metal Cover |
Rear side integrated electronics protected by a metal cover |
|
|
Actuation Force |
1.0N to 3.0N |
|
|
Mounting Rack |
Movable desk top solution |
|
|
Dimension |
38mm track ball, 107.0mm x155.0mm(front panel) |
|
|
Interface |
PS2, USB are available, Y type cable with ports of PS2 and USB |
|
|
Electrical |
Power supply |
5V DC+ 10%, keyboard interface |
|
Protection level |
IP65 (front panel) |
|
|
EMC Standard |
EN55022(B) |
|
|
Power consuming |
≤1.00W(dynamic) |
|
|
≤0.2W(static) |
||
|
Contact Material |
Gold/Carbon |
|
|
Environmental |
Operating temperature |
-20ºC~+ 60º C |
|
Storage temperature |
- 30ºC~+ 70ºC |
|
|
Operating RH |
30～90% |
|
|
Atmospheric pressure |
60～106Kpa. |
|
|
Reliable |
Certificates |
RoHS compliant, CE and FCC certified. ESD |
|
MTBF |
>20000H |
|
|
MTTR |
< 30min |
|
|
OS |
OS is under All windows, Linux, Unix, Mac OS9 / OSX |
|
|
Packing Details |
Each unit to a suitable brown box, suitable brown boxes to a standard export carton. |
|
