Product Details:
|
| Application: | Military | Material: | Silicone Rubber |
|---|---|---|---|
| Dimensions: | 418.0mm X 154.2mm(L X W) | Backlight: | Optional |
| Key: | 85 Keys (including 2 Mouse Buttons) | Qty: | 1 Pieces |
| Name: | Industrial Silicone Keyboard | ||
| High Light: | Ruggedized Tough Industrial Silicone Keyboard,85keys Industrial Silicone Keyboard,Ruggedized Tough Panel Mount Keypad |
||
Ruggedized Tough Industrial Silicone Keyboard With Sealed Touchpad
Industrial Silicone Keyboard
DESCRIPTION: 85 keys IP65 dynamic sealed and ruggedized silicone rubber keyboard with sealed & ruggedized tough touchpad,
12 FN keys (F1, F2...F11, F12) are on top line for easy operation, with carbon-on-gold key switch technology with long stroke (1.50mm±0.1mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + CLEAN combination key to lock/disable the keyboard for easy cleaning without needing to take away the keyboard from PC, with ruggedized stainless steel plate and surface covered with a black film, top panel mounted with threaded bolts, backlight optional. Military level, meet MIL-STD-810F with wide temperature, shock, salt mist, vibration, fungus, humidity etc.
INDUSTRIAL KEYBOARD WITH TOUCHPAD DIMENSIONS: 418.0mm x 154.2mm(L x W)
| MECHANICAL DATA | |
| Keys | 85 keys (including 2 mouse buttons) |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Key travel | 1.50mm±0.10mm |
| Actuation Force | 1.2N±0.2N (pressure point ) |
| Switch life | more than 5 million of operations |
| Touch pad | sealed and ruggedized tough touchpad |
| Touchpad cover | Composite |
| More than Lifetime 10 million strokes | |
| Mutual capacitance sensing | |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Output (self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5V ± 0.25V |
| Current rating (active mode) | < 10 mA |
| G.W. | 1.80KGs |
| RUBBER KEYBOARD ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mA when backlight is off, 300mA with backlight on |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-gold key switch technology |
| Interface | PS2, USB available |
| Cable length | Standard 1.5m, other customized length available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| MILITARY KEYBOARD RELIABILITY | |
| RoHS compliant, CE and FCC certified, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) | |
| Protection Level | IP65 dynamic (front panel) |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |

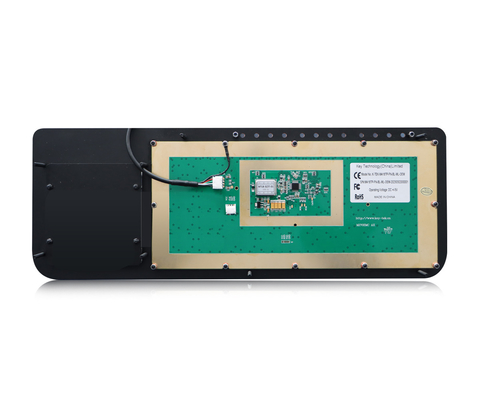

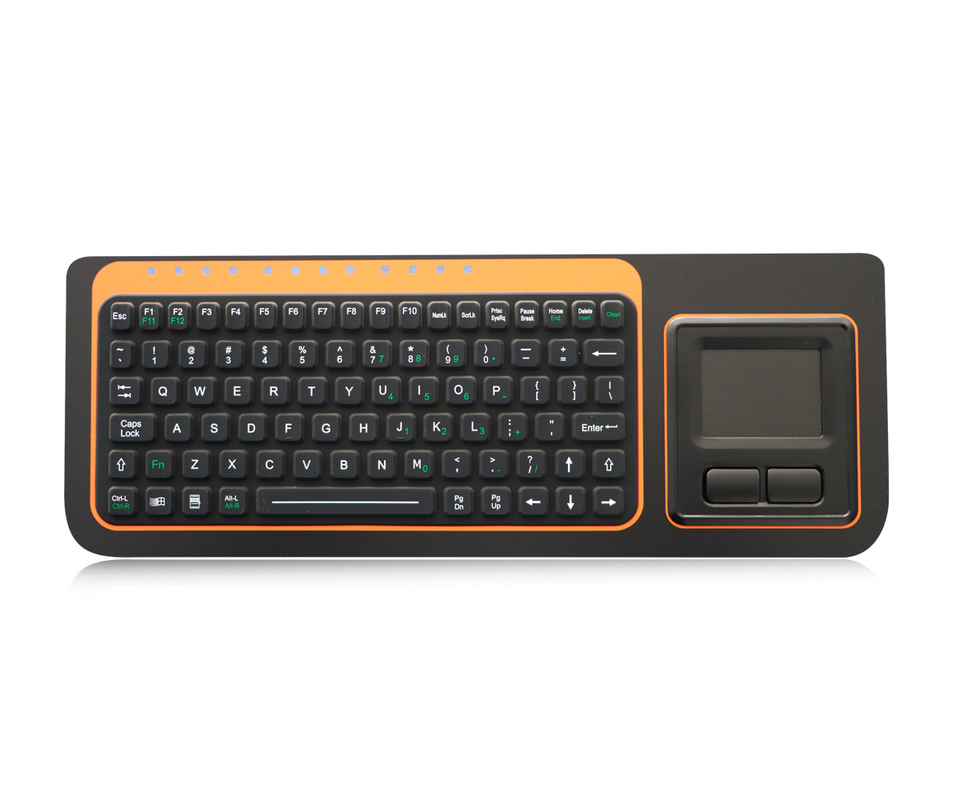

ACTUAL PHOTOS
