Product Details:
|
| Material: | Silicone, Stainless Steel | Keys: | 88 Keys (Including 2 Mouse Buttons) |
|---|---|---|---|
| Key Travel: | 1.40mm±0.10mm | Interface: | PS2, USB |
| Touchpad: | Composite | Dimensions: | 361.0mm X 145.0mm X 20.0mm (L X W X H) |
| Name: | Industrial Keyboard With Touchpad | ||
| High Light: | IP65 Industrial Keyboard With Touchpad,PS2 Industrial Keyboard With Touchpad,IP65 Wired Keyboard |
||

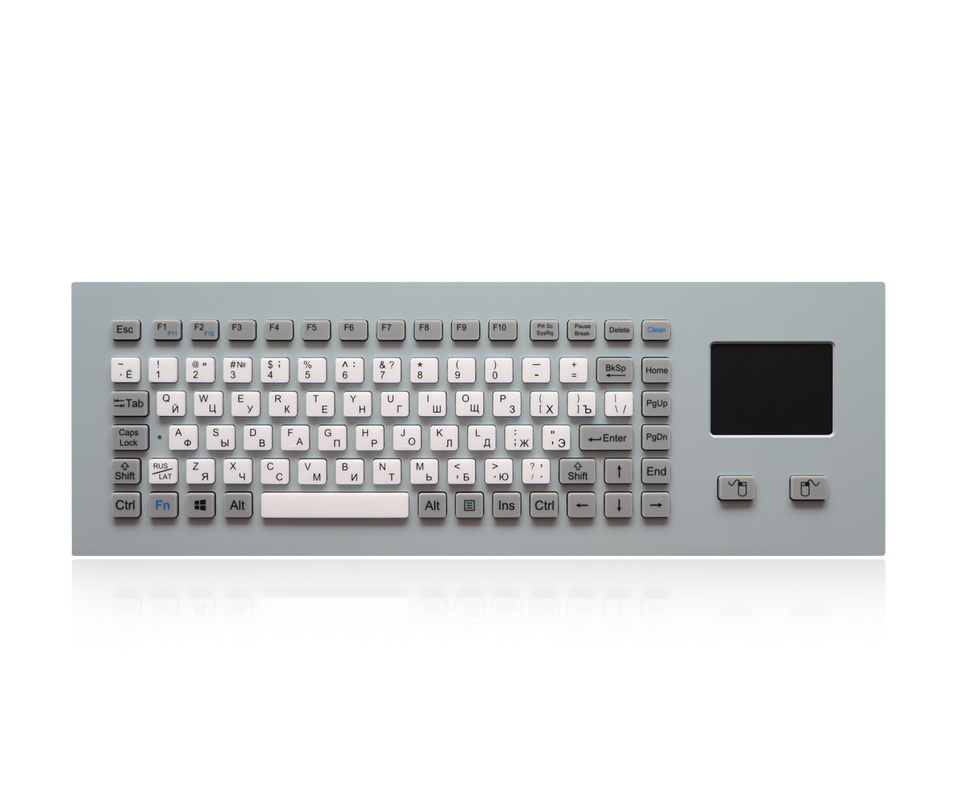

Silicone Keys Waterproof IP65 Wired Industrial Keyboard With Touchpad
IP65 Silicone Keys Industrial Keyboard Waterproof Wired Keyboard With Touchpad
DESCRIPTION: 88 keys compact format IP65 dynamic water proof vandal proof stainless steel industrial keyboard with silicone keys(white or grey color) for comfortable and quiet typing, with IP65 dynamic sealed & ruggedized tough capacitive touchpad for fast and accurate cursor position, and 12 function keys (F1, F2, ...F12) are on the top line for easy operation, sealed and ruggedized industrial PCB with carbon-on-gold key switch technology with long stroke(1.40mm±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, one complete silicone rubber along stainless steel plate for easy mounting & sealing tightly with cabinet. Top panel with threaded bolts for top panel mounted solution, High quality durable elegant grey spray-paint on the SUS304 front plate surface to withstand the corrosion from water/salt mist. 3 LEDs for CapsLock/Num Lock/Scroll Lock to indicate on/off, with brushed SUS304 stainless steel back plate and shielding boxes to protect electronics, FN + Clean key to lock/disable the keyboard for easy cleaning without taking away the keyboard from PC, which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc., MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) optional.
Dimensions: 405.0mm x 135.0mm (front panel)
| MECHANICAL DATA | |
| Keys | 88 keys (Including 2 mouse buttons) |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Key Size | 12.5mm x 14.0mm |
| Key travel | 1.40mm±0.10mm |
| Actuation Force | 1.6 N±0.2N (pressure point ) |
| Switch life | more than 5 million of operations |
| Touch pad | sealed and rugged tough capacitive touchpad (resistive touchpad optional) |
| Touchpad cover | Composite |
| More than Lifetime 10 million strokes | |
| Mutual capacitance sensing | |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Output (self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Front Plate: | 1.50mm thickness super quality brushed stainless steel with special elegant grey color |
| Back Plate: | 1.50mm thickness super quality brushed stainless steel |
| G.W. | 1.50KG |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology with gold PCB |
| Interface | PS2, USB available |
| Cable lengh | Standard 2.0m, customized length available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
|
RoHS Compliant, CE and FCC, ESD; MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) optional. |
|
| Protection Level | IP65 dynamic |
| Key Lifespan | >5 million actuation |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.
A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.
A: Yes, we could offer the sample of one quantity first before large quantity orders.
A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
If you have another question, pls feel free to contact us.
