Product Details:
|
| Touchpad Thickness: | 1.3 Mm PCB Thickness Inclusive Of Mylar Layer | Touchpad Lifespan: | > 10 Mio Times |
|---|---|---|---|
| Interface: | USB | Tracking Speed: | Maximum 1,016 M/sec |
| Protection Level: | IP65 | Name: | Touchpad Module |
| Highlight: | Humanize Designed USB Industrial Touchpad,ISO9001 Industrial Touchpad,Humanize Designed USB Touchpad Module |
||
Humanize Designed USB Industrial Touchpad Module With Buttons
industrial touchpad module
Description: K-TEK-HTP65-USB+Key board+Key cap is a high performance humanize designed touchpad module especially for Laptops, Notebooks and EPC products. Utilizing capacitive sensing technology to provide accurate cursor motion at X, Y directions through fingers. Function as complete computer mouse via USB interface. Plug-and-play. With multi-touch functionality included in difference with conventional mouse. USB interface, with 2 external mouse buttons.
DIMENSIONS: 65.0mm x 49.0 mm (L x W)
INDUSTRIAL TOUCHPAD TECHNICAL SPECIFICATION:
| MECHANICAL DATA | |
| Touch pad | 1.3mm thick PCB, containing polyester film |
| Touchpad cover | Composite |
| G.W. | 0.2KGs |
| Dimension | 65.0mm x 49.0 mm (L x W) |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 10mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | USB |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Saline mist | 96h, IEC60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| Humidity | 100% |
| RELIABILITY | |
| RoHS compliant, CE and FCC certified | |
| Protection Level | IP65 (front panel) |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Industrial, rugged laptop, notebook, PC, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |

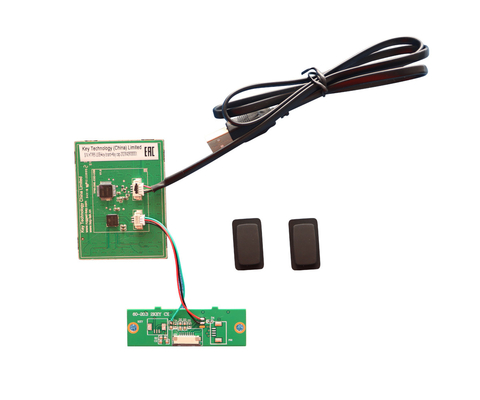

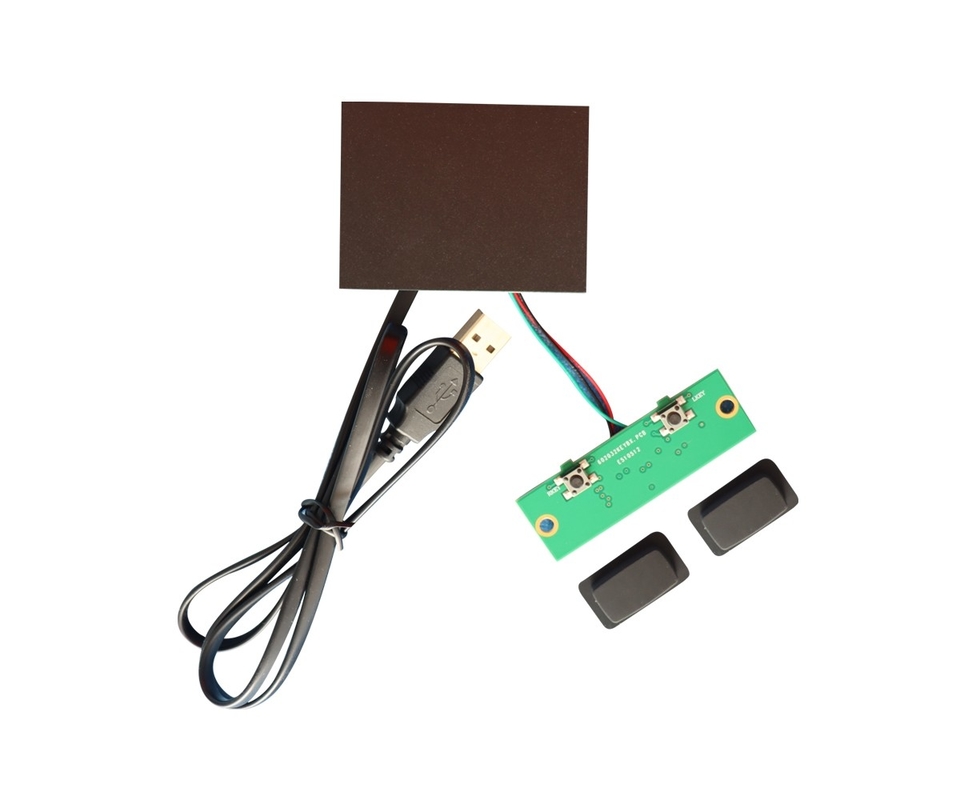

ACTUAL PHOTOS:
