Product Details:
|
| Material: | Silicone Rubber | Interface: | USB |
|---|---|---|---|
| Keys: | 90 Keys (including 3 Mouse Buttons) | Colour: | Black |
| Backlit: | Red | Name: | Military EMC Keyboard |
| High Light: | Backlight EMC Keyboard,ROHS EMC Keyboard,EMC Stainless Steel Industrial Keyboard |
||

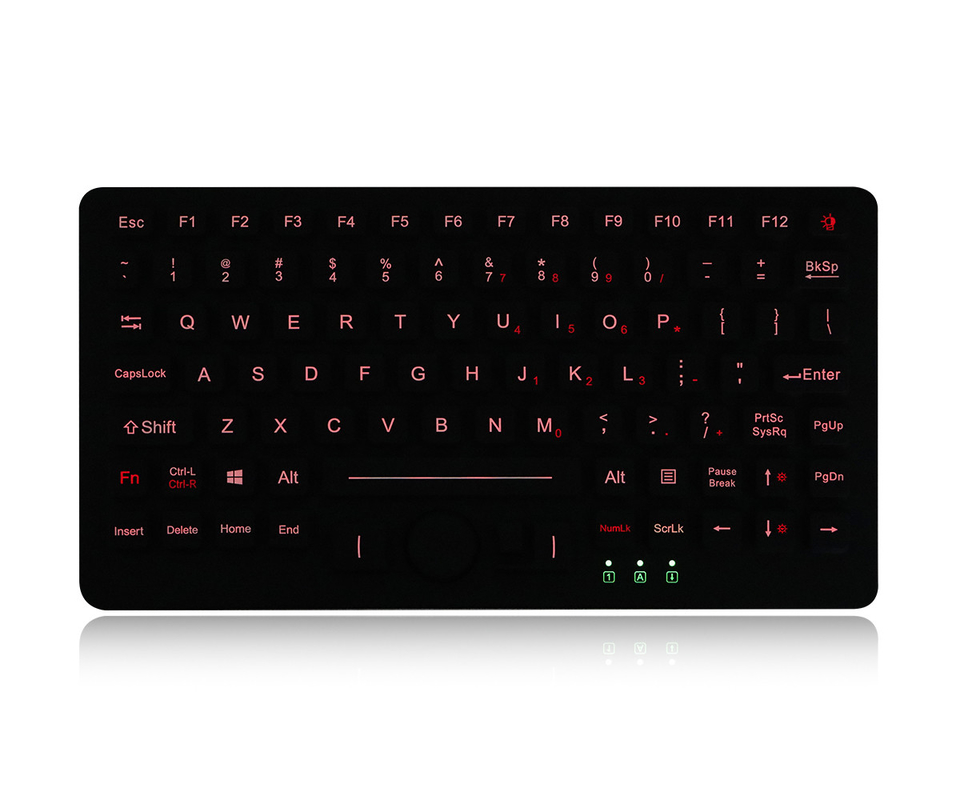

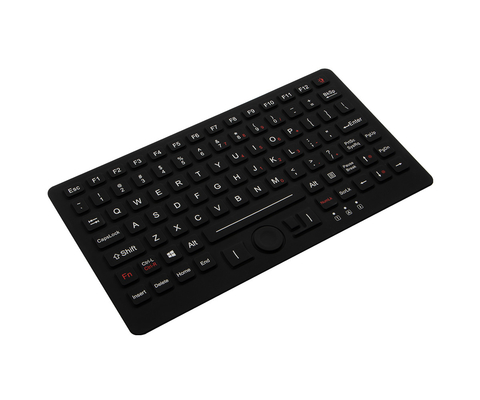

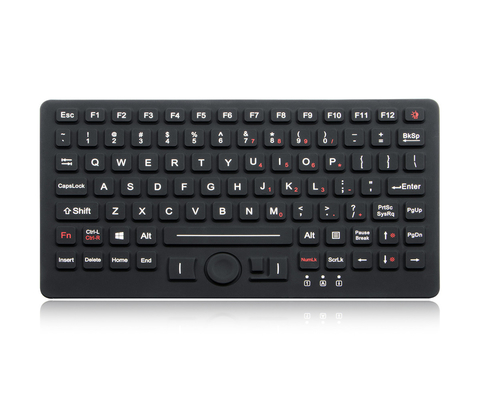

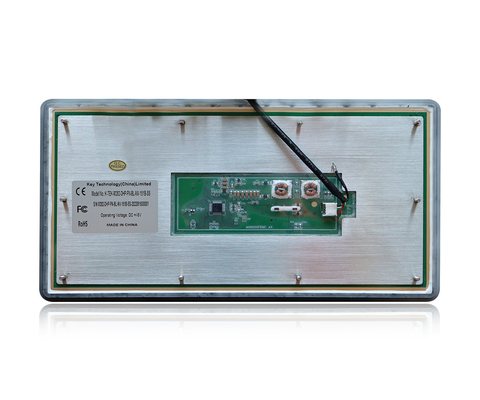

Military Level EMC Keyboard Stainless Steel Back Plate Rubber Backlight
Military Rugged Keyboard
DIMENSION: 282.4mm x 153.6mm (L x W)
| MECHANICAL DATA | |
| Key | 90 keys (including 3 mouse buttons) |
| Key top style | Protuberant rectangular keys with tactile feeling. |
| Key Size | 13.6.0mm x 13.6mm for normal keys |
| Key travel | 1.20mm±0.10mm |
| Actuation Force | 1.5N±0.2N (pressure point ) |
| Switch life | more than 5 million of operations. |
| G.W. | 1.50KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mA when backlight is off, 300mA with backlight on |
| Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc.: | |
| 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads |
| 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads |
| 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads |
| 4 | CS106 Conducted Susceptibility, Transients, Power Leads |
| 5 | CS112 Electrostatic Discharge Susceptibility |
| 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection |
| 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation |
| 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads |
| 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field |
| 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field |
| 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field |
| 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field |
| MIL-STD-810F (wide temperature, shock, vibration, humidity). | |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology with military PCB |
| Interface | USB |
| Cable length | Standard 1.5m, customized length available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -25℃ to +60℃ |
| Storage temperature | -40℃ to +70℃ |
| Saline mist | 96h, IEC60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| Humidity | 100% |
| Atmospheric pressure | 60-106Kpa |
| RELIABILITY | |
| RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity) | |
| Protection Level | IP65 dynamic (front panel) |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
