Product Details:
|
| Material: | Silicone Rubber | Color: | Black |
|---|---|---|---|
| Keys: | 108 Keys | Key Travel: | 1.5mm±0.1mm |
| Protection Level: | IP68 | Interface: | USB Or PS2 Optional |
| Backlight Color: | White | Name: | Industrial Silicone Keyboard |
| High Light: | 108 Keys Silicone Industrial Keyboard,IP68 Silicone Industrial Keyboard,IP68 Backlit Desktop Keyboard |
||

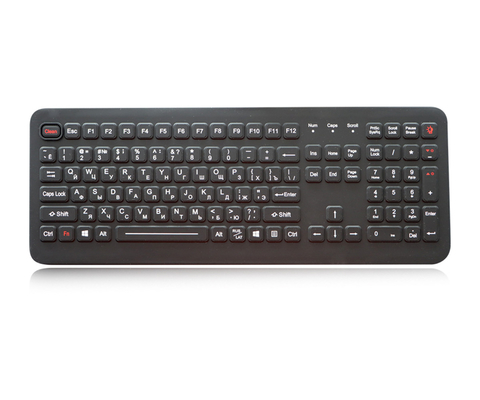

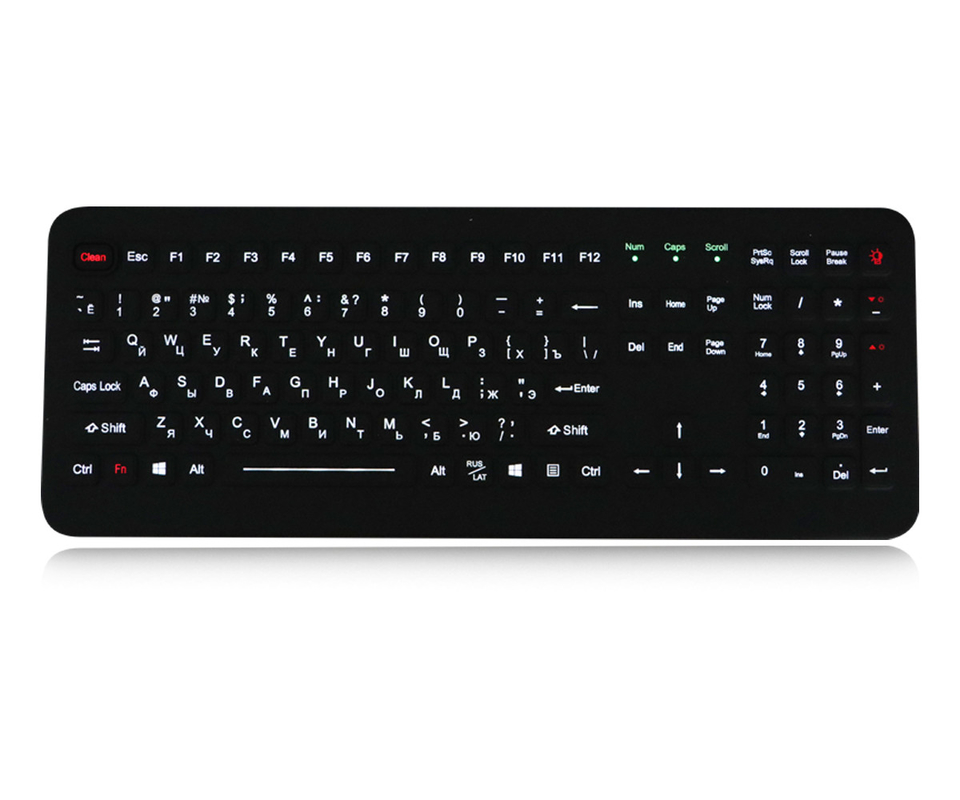

108 Keys Silicone Industrial Keyboard IP68 Waterproof Backlit Desktop
industrial silicone rubber keyboard
DESCRIPTION: 108 keys IP68 dynamic rated ruggedized industrial silicone rubber Hygienic keyboard, with integrated numeric keypad on right side, function keys on upper line, and integrated PCB electronics controller with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN+Clean key for easy cleaning via lock/disable the keyboard without needing to take away the keyboard from PC, movable standalone desk top version with robust polycarbonate case, with adjustable backlight included (Red/White optional), military level optional.
DIMENSIONS: 405.0mm x 155.0mm x 19.8mm (L x W x H)
| MECHANICAL DATA | |
| Keys | 108 keys |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Key Size | 12.0mm x 13.0mm for normal keys |
| Key travel | 1.50±0.10mm |
| Actuation Force | 1.2N±0.2N (pressure point ) |
| Switch life | more than 5 million of operations |
| G.W. | 1.50KGs |
| ELECTRICAL DATA | |
| Supply Voltage |
DC +5V±5% |
| Current Rating | 30mA when backlight is off, 300mA with backlight on |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-gold key switch technology |
| Interface | PS2, USB available |
| Cable length | Standard 2.0m, other customized length available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity)(OPTIONAL) | |
| Protection Level | IP68 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
