Product Details:
|
| Material: | Stainless Steel | Connection: | USB / PS2 |
|---|---|---|---|
| Application: | Indutrial | Backlight Color: | No |
| G.W.: | 2.80KGs | Name: | Industrial Keyboard |
| Keyword: | Stainless Steel Keyboard, Metal Keyboard | ||
| High Light: | Stainless Steel Keyboard With Hula Pointer,90 Keys Ruggedized Keyboard,Ruggedized Keyboard With Hula Pointer |
||

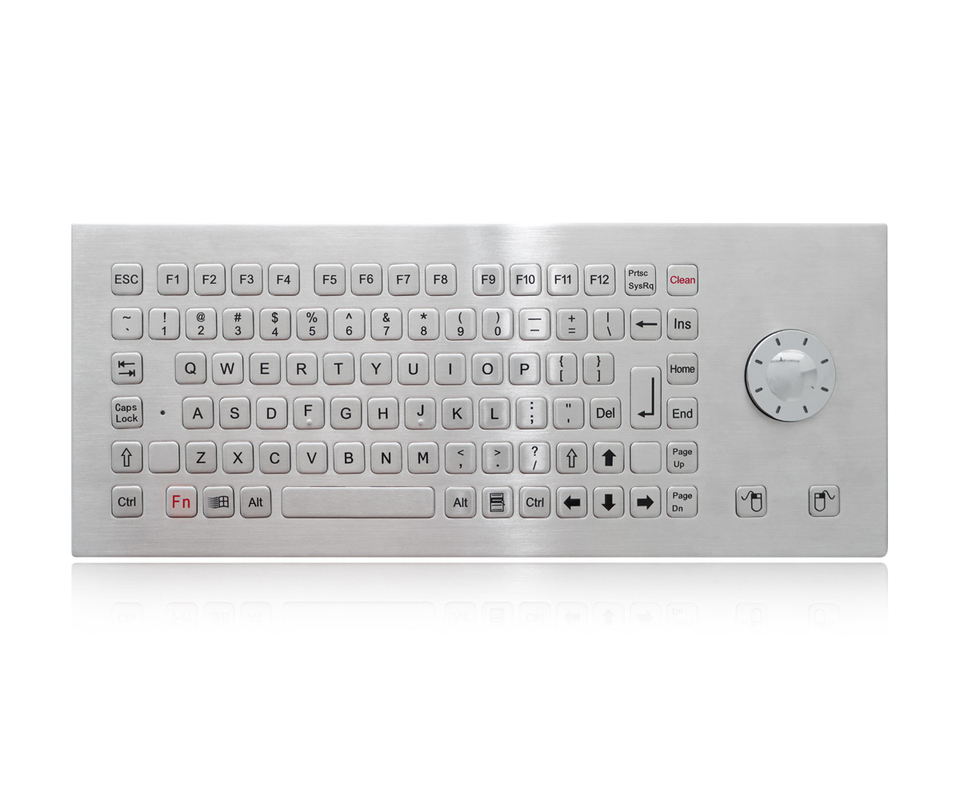

Industrial metal keyboard
DESCRIPTION: 90 keys compact format IP68 dynamic waterproof, oil proof, dust proof and explosive proof stainless steel industrial keyboard with sealed & ruggedized tough stainless steel hula pointer for fast and accurate cursor position, 2 mouse buttons designed for right & left clicking, functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation, industrial metal dome PCB with gold-on-gold key switch technology, all the keys are flat without raised keys for dust accumulation, and the surface is extremely easy for cleaning and washing, with 0.45mm short stroke with excellent tactile feeling for stable and accurate data input, movable stand alone DESK TOP VERSION, or optional mountable desktop with mounting holes on the bottoms for fixing. FN+Clean combination keys to lock/disable the whole keyboard for easy cleaning without disconnecting the keyboard from PC. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
DIMENSION: 380.0mm x 155.0mm x 21.5mm (L x W x H)
| MECHANICAL DATA | |
| Actuator/keys | 90 keys (including 2 mouse buttons) |
| Key top style | Non-protuberant rectangular keys, laser engraved & etched legends on keys are available |
| Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar |
| Key travel | 0.45±0.05mm |
| Actuation Force |
3.5N±0.2N for key 14.0mm x 14.0mm (pressure point ) 7.0N±0.4N for key 14.0mm x 28.0mm (pressure point) |
| G.W. | ≈3.0KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 50mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | Gold-on-Gold key switch technology PCB |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS Compliant, CE and FCC, ESD | |
| Protection Level | IP68 |
| Vandal resistant | IK09 |
| Key Lifespan | >1 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc. |
