Product Details:
|
| Resolution: | 400 DPI | Ball Diameter: | 50mm |
|---|---|---|---|
| Interface: | USB /PS2 | Protection Level: | IP65 |
| Power Supply: | +5V DC +/-5% | Trackball Material: | Black Harden Resin Ball |
| Dimension: | 72.6mm X 72.6mm X 34.5mm | Certificates: | RoHS Compliant, CE And FCC Certified |
| Operating Temperature: | -40ºC~+ 60º C | MTTR: | < 30min |
| High Light: | 400DPI Military Trackball Module,IP65 Military Trackball Module,Panel Mounted Military Trackball Module |
||
DESCRIPTION:

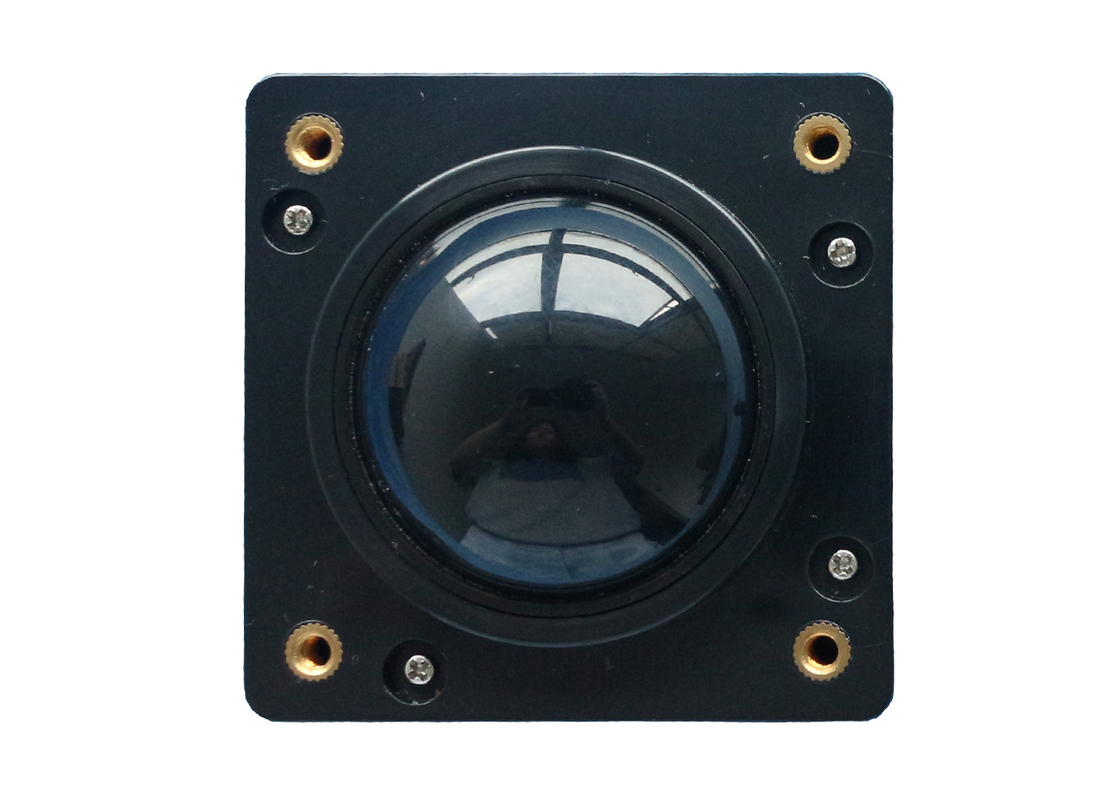

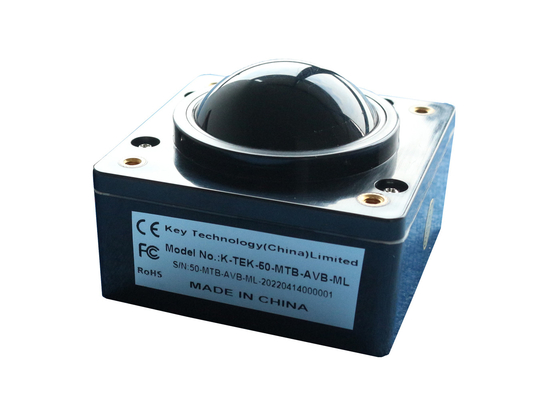

1: 50.0mm (2.0’') vandal proof IP65 military level mechanical trackball module
2: black harden resin ball with 400DPI resolutions
3: military grade with wide temperature of -40°C to +60°C
4: anti-vibration, USB/PS2 interface available
DIMENSIONS: 72.6mm x 72.6mm x 34.5mm
TECHNICAL SPECIFICATION
| ITEM | SPECIFICATION | |
| Mechanical Data | Ball diameter | 50mm/2.0’' |
| Track ball lifespan | > 5 years | |
| Dimension | 50.0 mm diameter for ball, 72.6mm x 72.6mm x 34.5mm | |
| Interface | USB/PS2 | |
| Weight | 0.209KGs | |
| Electrical | Power supply | +5V DC +/-5% |
| Protection level | IP65 (static) | |
| EMC Standard | EN 55032:2015, EN 55035:2017 | |
| Power consuming | ≤1.00W(dynamic) | |
| ≤0.2W(static) | ||
| Environmental | Operating temperature | -40ºC~+ 60º C |
| Storage temperature | -45ºC~+ 70ºC | |
| Operating RH | 30～90% | |
| Atmospheric pressure | 60～106Kpa. | |
| Reliable | Certificates | RoHS compliant, CE and FCC certified |
| MTBF | >20000h | |
| MTTR | < 30min | |
| OS |
All Windows, Linux, Unix, Mac OSX, Vxworks, Android |
|
| Packing Details | Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. | |
