Product Details:
|
| Material: | Silicone | Color: | Black |
|---|---|---|---|
| Point: | Hula | G.W: | 0.10KGs |
| Size: | 78.50mm X 35.16mm X 12.30mm (L X W X H) | Warranty: | 1 Year |
| Name: | Pointing Device Mouse | ||
| High Light: | Force Sensing Resistor Silicone Mouse,MIL Silicone Mouse,Force Sensing Resistor Waterproof Mouse |
||
Force Sensing Resistor Silicone Mouse With Waterproof Silicone Cover Meet

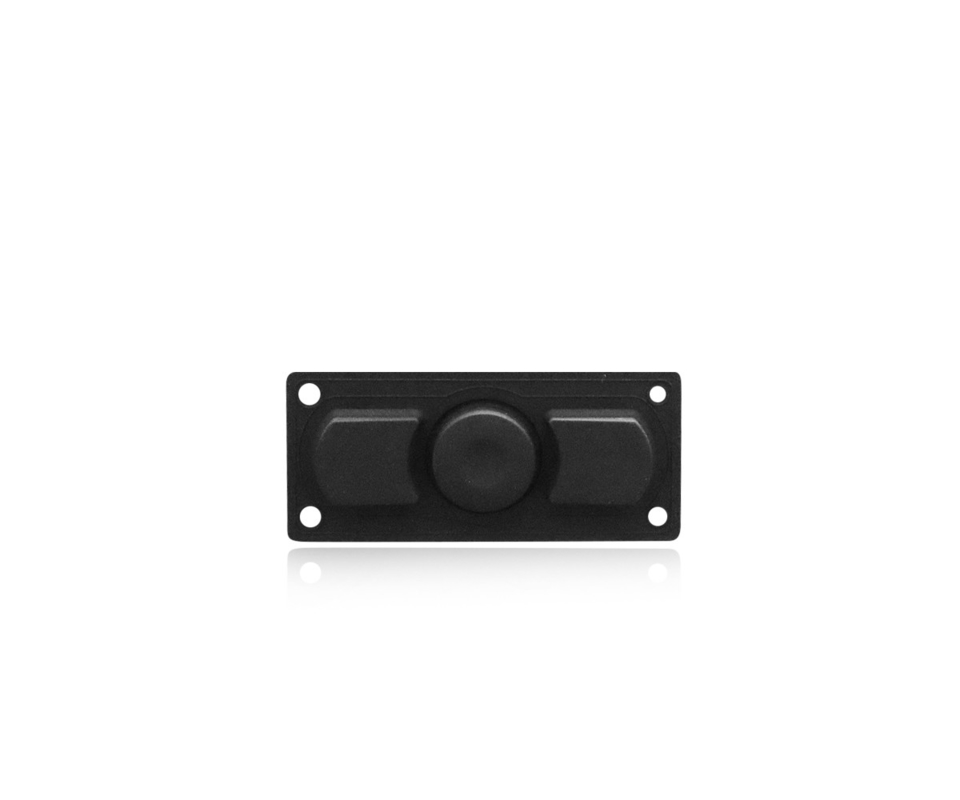

Industrial Silicone Hula Mouse with Point Button
DESCRIPTION: IP65 dynamic rated waterproof & rugged Force Sensing Resistor pointing device integrated in one-piece compact seamless silicone cover for fast and accurate cursor position, with 2 mouse buttons for left and right clicking, and with mounting holes along for easy mounting & sealing, which is good for much oil, water, sand etc application or gloves are needed when operation. USB interface/PS2 interface optional. Meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity).
Dimensions: 78.50mm X 35.16mm X 12.30mm (L x W x H)
| MECHANICAL DATA | |
| Keys | 2 keys + 1 Hula Point button |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Key travel | 1.50mm |
| Actuation Force | 1.5N±0.2N (pressure point) |
| Switch life | more than 5 million of operations |
| G.W. | 0.10KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 15mA |
| Power | 1.0W |
| Meet MIL-STD-461G with EMC (Electro Magnetic Compatibility) etc.: | |
| 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads |
| 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads |
| 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads |
| 4 | CS106 Conducted Susceptibility, Transients, Power Leads |
| 5 | CS112 Electrostatic Discharge Susceptibility |
| 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection |
| 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation |
| 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads |
| 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field |
| 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field |
| 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field |
| 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field |
| MIL-STD-810F (wide temperature, shock, vibration, humidity). | |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology PCB |
| Interface | PS2, USB available |
| Cable length | Standard 2.0m, customized length available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Operating RH | 100% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS, CE, FCC, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity). | |
| Protection Level | IP65 |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
Our product Certificate:
A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.
A: Generally it is 2-3 Weeks after payment is received. If larger quantity, delivery time would be 4-5 weeks.
A: Yes, we could offer the sample of one quantity first before large quantity orders.
A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
If you have another question, pls feel free to contact us.
