Product Details:
|
| Color: | Black / White | Interface: | USB |
|---|---|---|---|
| IP68: | Yes | Mouse Resolution: | 400-800-1200-1600DPI |
| Key Switch Technology: | Micro Switch + Plastic Mouse Buttons | Name: | USB Mouse |
| Keyword: | Medical Mouse, Optical Mouse, Silicone Mouse, Waterproof Mouse | Dimensions: | 110.0mm X 58.3mm X 37.4mm (L X W X H) |
| High Light: | 2.4GHz Wireless Waterproof Silicone Mouse,5 Keys Silicone Mouse,Waterproof Hygienic Optical Mouse |
||

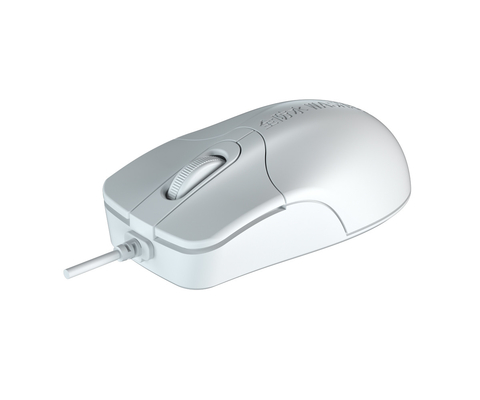

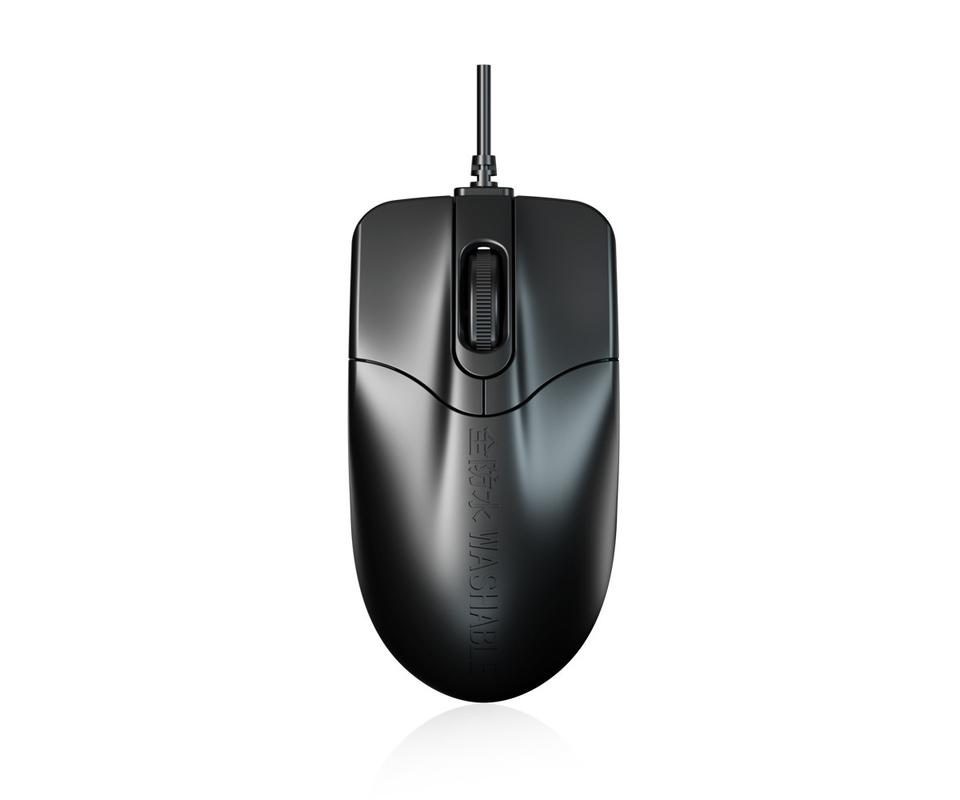

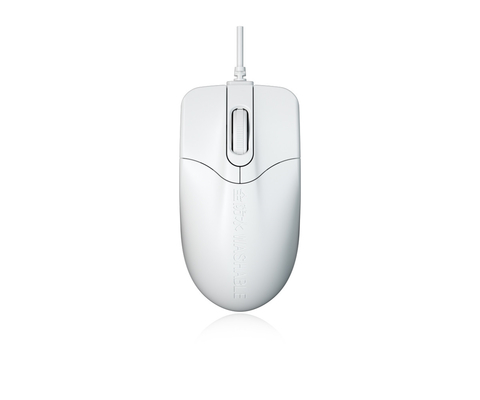

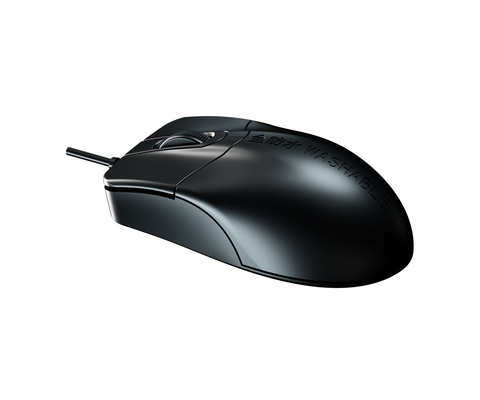

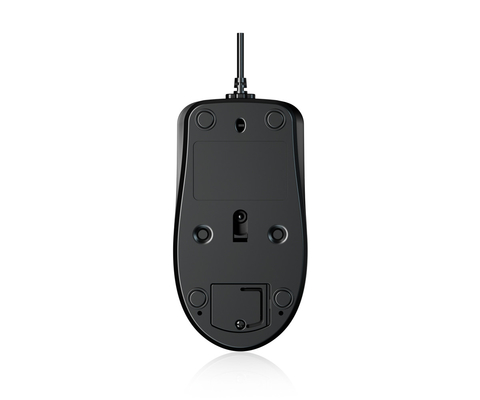

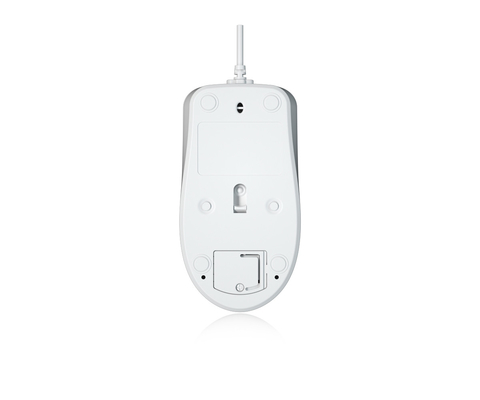

4 Keys Waterproof Medical Hygienic Optical Mouse
DESCRIPTION: IP68 dynamic rated sealed and rugged waterproof professional optical mouse, DPI can be adjusted and switched by mouse button, with extremely good tactile feeling for left and right mouse button, durable coating & antimicrobial surface to withstand most chemicals and liquids under harsh environments. The mouse is full sized and features which are designed for right & left clicking and scrolling up and down just like a conventional non-waterproof mouse. USB interface. Which meets MIL-STD-810F with high and low temperature, low pressure, humidity, vibration, shock, temperature shock, drop test etc.
| MECHANICAL DATA | |
| Actuator/keys | 4 keys (Left+right mouse key+Scrolling key+DPI adjustable key) |
| Key Switch Technology | Micro switch + plastic mouse buttons |
| Actuation Force | 0.55±0.15N |
| Key Gram Force | 50±10gf |
| Resolution | 400-800-1200-1600DPI |
| Actuation Pressure | 1.0N-2.0N |
| Rotary Encoder Lifespan | ≥0.8 millions scrolling |
| G.W. | 0.25KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | ≈80mA |
| EMC standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | USB |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +55℃ |
| Storage temperature | -45℃ to +60℃ |
| Operating RH | 95% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS Compliant, CE and FCC, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) | |
| Protection Level | IP68 |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION |
Industrial, Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station, GCS, medical and pharmaceutical etc. |
