Product Details:
|
| Layout: | QWERTY | Key Travel: | 1.50mm±0.10mm |
|---|---|---|---|
| Waterproof: | Yes | Operating Temperature: | -40℃ To +75℃ |
| Type: | Wired | Name: | Silicone Rubber Keyboard |
| Keys: | 89 Keys (including 2 Mouse Buttons) | Protection Level: | IP65 Dynamic (front Panel) |
| High Light: | Silicone Rubber Touchpad Keyboard,Rugged Silicone Industrial Keyboard,Silicone Industrial Keyboard With Backlight |
||

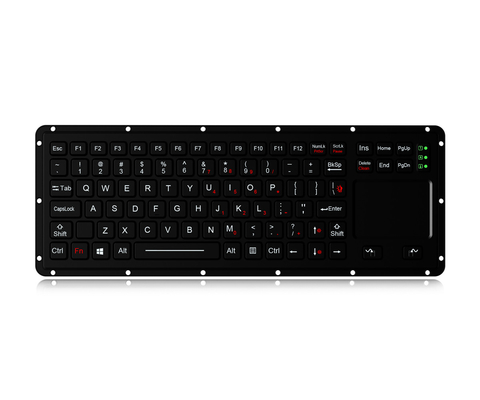

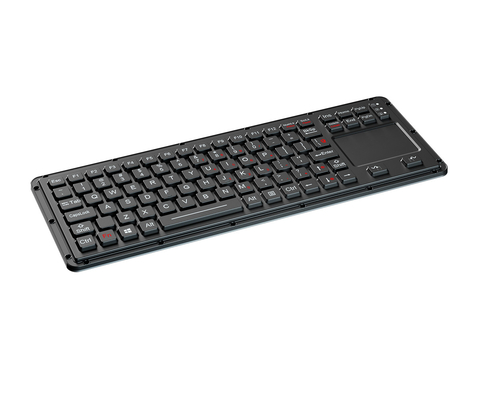

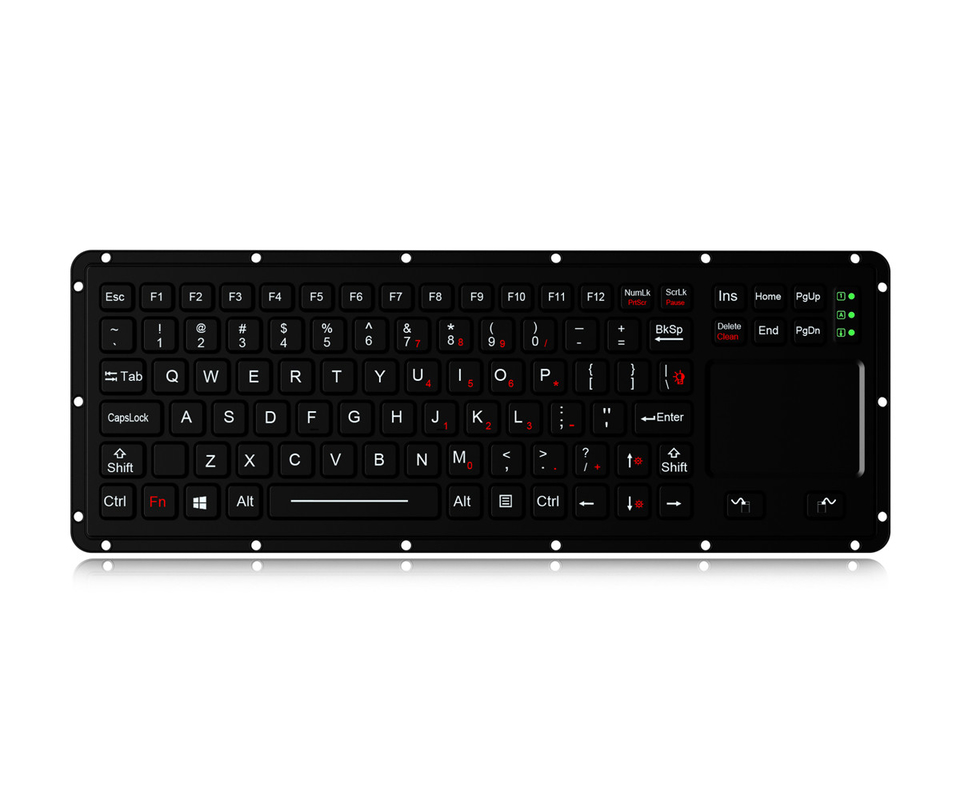

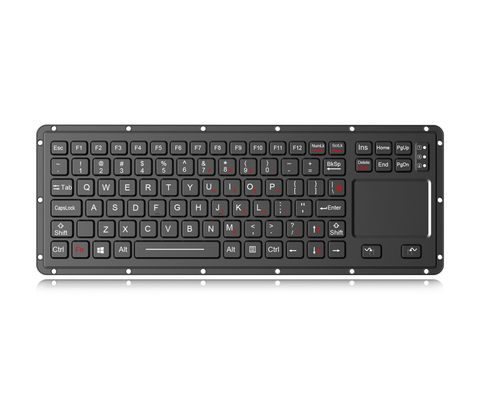

89 keys IP65 dynamic sealed & durable embedded military silicone rubber keyboard integrated with sealed tough touchpad for fast & accurate cursor position, with built-in military grade PCB module, 12 function keys on top line for easy operation, with carbon-on-gold key switch technology with key stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard from PC, panel mount with super thin ruggedized aluminum back plate with mounting holes, with a reinforced and rugged aluminum back plate for better shielding function and positioning of the rugged cable outlet, adjustable white backlight included. Built to meet MIL-STD-810F environmental adaptability (wide temperature, shock, salt mist, vibration, fungus, humidity, direct rain etc.), and MIL-STD-461G electromagnetic compatibility optional, which also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
Dimension: 315.0mm x 108.0mm (L x W)
| MECHANICAL DATA | |
| Keys | 89 keys (including 2 mouse buttons) |
| Key top style | Protuberant rectangular keys with tactile feeling |
| Key travel | 1.50mm±0.10mm |
| Actuation Force | 1.5N±0.2N |
| Switch life | more than 5 million of operations |
| Touch pad | sealed and ruggedized tough touchpad |
| Touchpad cover | Composite |
| Mutual capacitance sensing | |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Output (self-detectable depending on cable) | USB |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5VDC ± 0.25V |
| Current rating (active mode) | < 10 mA |
| N.W. | 0.40KGs |
| G.W. | 0.80KGs |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA when backlight is off, 300mA with backlight on |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Switch Contact Material | carbon-on-gold key switch technology |
| Interface | USB |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Operating RH | 3%~95% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY | |
| RoHS compliant, CE and FCC certified, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity, direct rain etc.) | |
| Protection Level | IP65 dynamic (front panel) |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
Product Name: Silicone Industrial Keyboard
Packaging: This keyboard will be packaged in a sturdy cardboard box with protective foam padding to ensure safe delivery. The box will be labeled with the product name, model number, and any necessary safety warnings.
Shipping: We offer worldwide shipping for this product. It will be shipped via a reputable courier service with tracking information provided to the customer. The keyboard will be securely packaged and shipped within 7-10 business days after payment is received. Shipping times may vary depending on the destination country.
