Antibacterial Washable Metal Industrial Keypad 4x4 Atm Machine Keypad

Antibacterial Washable Metal Industrial Keypad 4x4 Atm Machine Keypad
Antibacterial Washable Metal Industrial Keypad 4x4 Atm Machine Keypad
video play

Large Image :  Antibacterial Washable Metal Industrial Keypad 4x4 Atm Machine Keypad

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number: K-TEK-B68KP-DWP
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: To be quoted
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month
Detailed Product Description
Material: Stainless Steel Dimensions: 68.0mm × 90.0mm (front Panel)
Backlight: No Key Travel: 0.45mm
Washable: Yes Key: 12 Keys
Antibacterial: Yes G.W.: 0.60KGs
High Light:

Washable Metal Industrial Keypad

,

Antibacterial Metal Industrial Keypad

,

No Backlight Atm Machine Keypad

12 Keys Metal Industrial Keypad 4x4 Bank ATM Vending Machine Keypads


DESCRIPTION: 12 keys compact format IP67 dynamic water proof and vandal proof and Stainless Steel industrial keypad with industrial metal dome PCB electronics controller shielded & protected by stainless steel housing, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, with rear stainless steel plate with mounting holes and water-tight gasket for easy mounting and tightening to enclosure or  panel..Industrial Backlight (red/blue/white/green) optional. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion.

DIMENSIONS: 68.0mm × 90.0mm (front panel)

Operating temperature
-20oC to +60oC
Storage temperature
-30oC to +70oC
Operating RH
30-90%
Atmospheric pressure
60-106Kpa
Saline mist
96 hours, IEC 60512-6
Damp heat test at + 40oC
21 days, IEC 60512-6
Dry heat test at + 85oC
10 days, IEC 60512-6
certificate
RoHS Compliant, CE and FCC, ESD
Protection Level
IP67(front panel)

Vandal resistant IK09
Key Lifespan
> 5 million actuation
MTBF
> 20000H
MTTR
< 30min

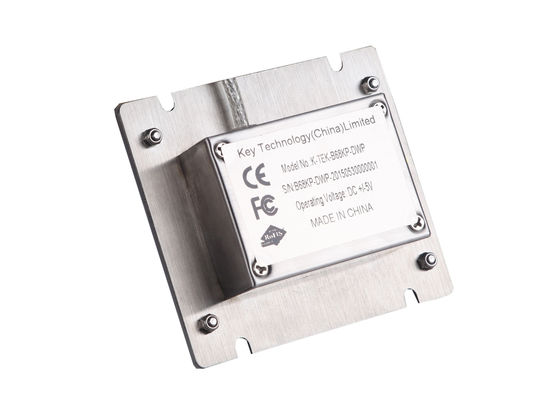

Antibacterial Washable Metal Industrial Keypad 4x4 Atm Machine Keypad 0

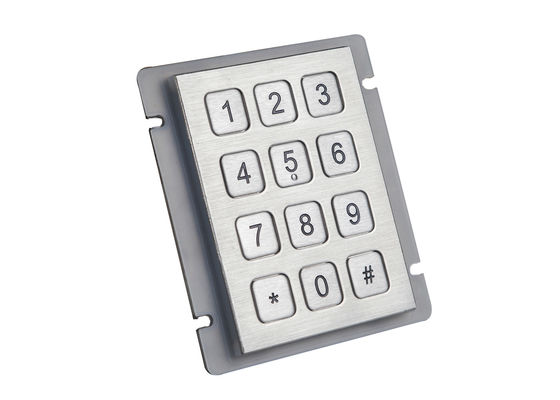

Antibacterial Washable Metal Industrial Keypad 4x4 Atm Machine Keypad 1

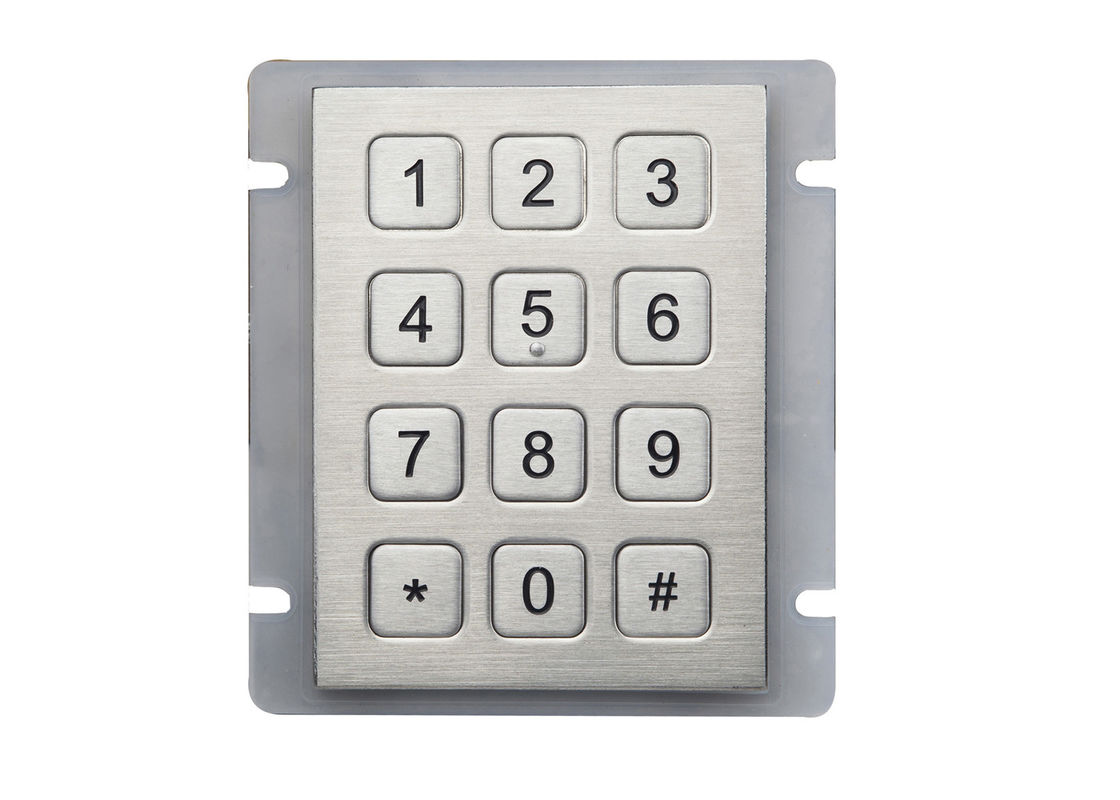

Antibacterial Washable Metal Industrial Keypad 4x4 Atm Machine Keypad 2

 APPLICATION:

This Keypad is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas,
ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

MAIN FEATURE
1:Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
2:Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
3:Waterproof execution according to IP67 protection from top panel, top stainless steel plate with flat keyboard surface for easy cleaning, threaded bolts & sealing gasket for easy tightly mounting to enclosure or panel.Head Office:B702,Building 1,Tianan Cyber Park,Huang Ge North Road,Longcheng Subdistrict,Long Gang District,ShenZhen,Guang Dong,P.R.China
4:An excellent tactile feel with short stroke switches and allow users to achieve stable and accurate data input, with firm tactile perception for comfortable operation
5:key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
6:Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
7:Ease of customizing with multiple languages, to accommodate foreign or custom variants.
8:Complete electronic modules including controller in close consultation with our customers are available.

ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 30mA
EMC Standard: EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Switch Contact Material: Gold-on-Gold key switch technology PCB.
Interface: PS2, USB, RS232, RS485 available
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
COMMUNICATION PARAMETER
PS2/USB:
Standard PS2/USB keyboard interface.
12 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,*, #. 3 x 4 scanning code
Any customized layout/codes are available upon customers’ requirements
RS232:
Standard RS232 serial interface.
Communication velocity: 9600bps.
Data format: N, 8, 1.
12 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,*, #. 3 x 4 scanning code, 3 x 4 scanning code.
Any customized layout/codes are available upon customers’ requirements

MECHANICAL DATA
Actuator/keys: 12 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key.
Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 14.0mm x 14.0mm for normal keys
Key travel: 0.45mm
Actuation Force: 3.2N+/-0.1N for key 14.0mm x 14.0mm (pressure point)
Switch life: more than 1 million of operations.
Front Plate: 1.5mm thickness super quality brushed stainless steel
Back Stainless steel housing: 1.0mm thickness super quality stainless steel
G.W.: 0.60KGs
Dimensions: 68.0mm x 90.0mm (L x W )
