APPLICATION
This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access
applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, and
railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM),
Internet public phones etc.
MAIN FEATURE
The full keyboard can be locked/disabled via FN + Clean combination keys for easy cleaning without needing to take the keyboard away from PC.
Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
Waterproof execution according to IP67 protection from top panel, rear aluminum plate with mounting holes easily & tightly mounting to enclosure or panel.
An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation
Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
Metal keys are protected against twisting and levering which cannot be dislodged from front, or defaced removing key covers.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
Complete electronic modules including controller in close consultation with our customers are available.
PS/2, USB connection plug and play with PC via PC existing OS driver, no needing of install separate driver.
MECHANICAL DATA

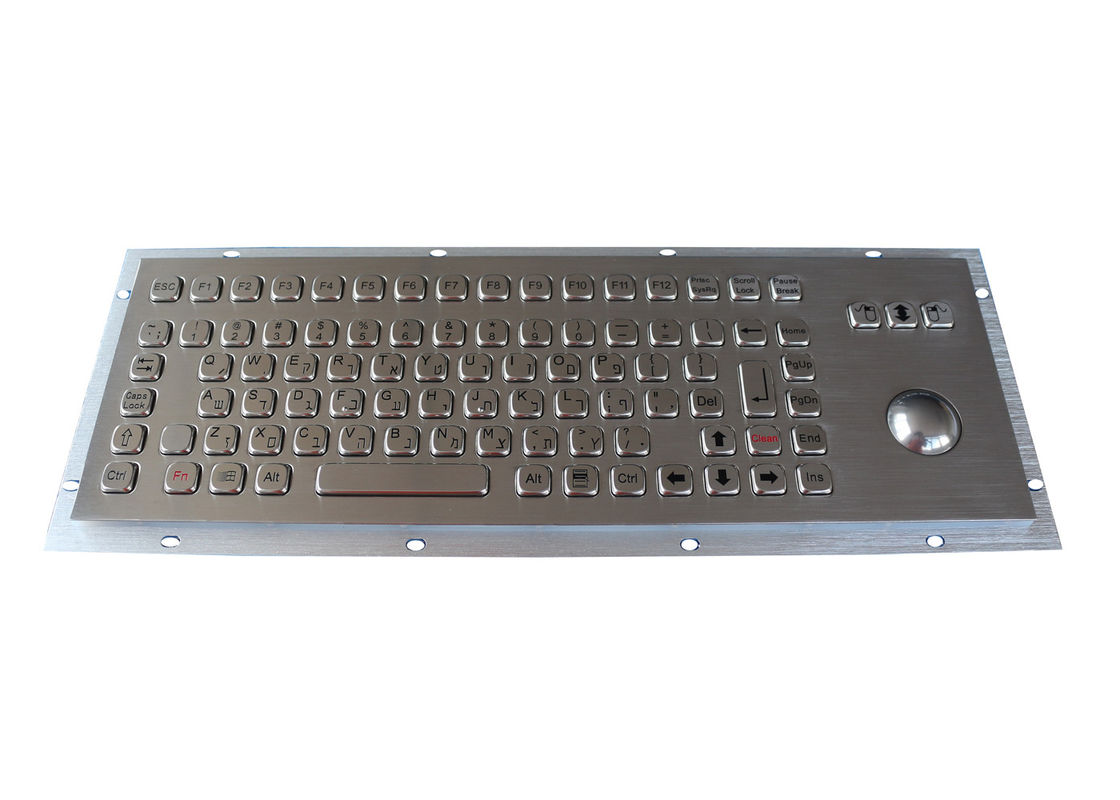

Actuator/keys:91 keys, super quality SUS304 brushed stainless steel
Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
Key travel: 2.0mm
Actuation Force: 1.2 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2.0 N+/-0.1N for key 14.0mm x28.0mm (pressure point)
Switch life: more than 5 million of operations.
Front Plate: 1.5mm thickness super quality brushed stainless steel

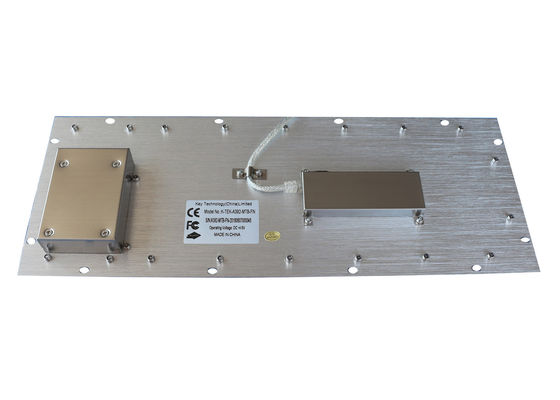

Back Plate:3.0mm thickness brushed & oxidized aluminum
Tracker ball: 38.0mm stainless steel optical trackball module with 800 DPI resolutions
G.W.:2.0KGs
Dimensions: 392.0mm x 135.0mm (front panel)
ELECTRICAL DATA
| Supply Voltage |
+5V DC +/-5% |
| Current Rating |
appr. 100mA |
| Lifespan |
> 5 years |
| EMC Standard |
EN 55032:2015, EN 55035:2017 |
| Switch Contact Materia |
Carbon-on-Gold key switch technology PCB |
| Interface |
PS2, USB available |
| OS |
All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| Operating temperature |
-20oC to +60oC |
| Storage temperature |
-30oC to +70oC |
| Operating RH |
30-90%Atmospheric pressure: 60-106Kpa. |
ENVIRONMENTAL ADAPTABILITY
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level: IP67
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
