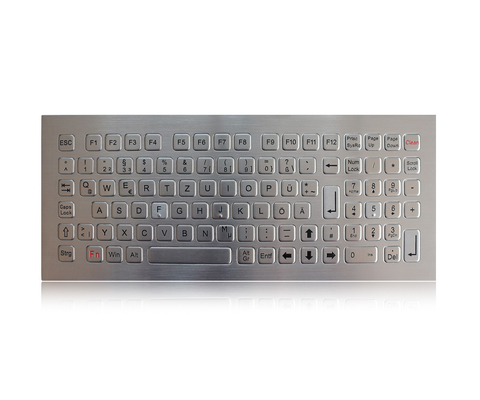

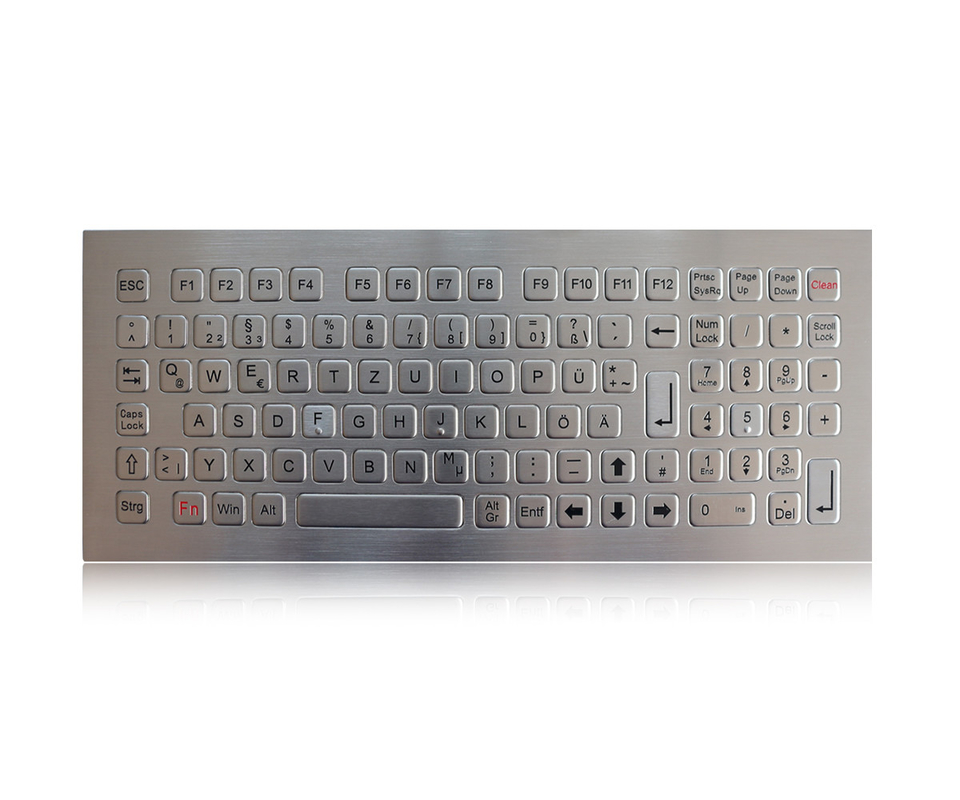

Vandal Proof IP65 Stainless Steel Keyboard SUS304 For Outdoor Kiosk

Vandal Proof IP65 Stainless Steel Keyboard SUS304 For Outdoor Kiosk
Vandal Proof IP65 Stainless Steel Keyboard SUS304 For Outdoor Kiosk Vandal Proof IP65 Stainless Steel Keyboard SUS304 For Outdoor Kiosk

Large Image :  Vandal Proof IP65 Stainless Steel Keyboard SUS304 For Outdoor Kiosk

Product Details:
Place of Origin: Shenzhen, China
Brand Name: IKB-MKB
Certification: CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number: K-TEK-B340KP-FN-DWP
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: To be quoted
Packaging Details: Each keyboard to one box, several boxes to one carton.
Delivery Time: ASAP Within 2 weeks upon payment confirmed
Payment Terms: Full payment in advance, Western Union, T/T, Paypal
Supply Ability: 3000psc/month

Vandal Proof IP65 Stainless Steel Keyboard SUS304 For Outdoor Kiosk

Description
Material: Stainless Steel Keys: 96 Keys
Key Travel: 0.45mm±0.05mm Interface: PS2, USB Available
Dimensions: 340.0mm X 145.0mm ( Front Panel) G.W: 1.40KGs
High Light:

Outdoor Kiosk Stainless Steel Keyboard

,

IP67 Stainless Steel Keyboard

,

SUS304 Vandal Proof Keyboard



Stainless Steel Keyboard SUS304 For Outdoor Kiosk



DESCRIPTION: 99 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard with fully sealed and ruggedized industrial metal dome PCB with gold-on-gold key switch technology with short stroke short stroke (0.45±0.05mm) with excellent tactile feeling for stable and accurate data input, with 12 function keys(F1, F2..F10, F11, F12) on the top panel for easy operation, with integrated numeric keypad, and stainless steel top plate with threaded bolts and water-tight gasket for easy & tightened sealing, with top panel mounting solution.Industrial Backlight (red/blue/white/green) optional. FN+Clean combination keys to lock/disable the whole keyboard for easy cleaning without error output. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.



DIMENSIONS: 340.0mm x 145.0mm ( Front panel)



Vandal Proof IP65 Stainless Steel Keyboard SUS304 For Outdoor Kiosk 0



MECHANICAL DATA
Actuator/keys 99 keys
Key top style Non-protuberant rectangular keys, laser engraved & etched legends on keys are available
Key Size 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar
Key travel 0.45±0.05mm
Actuation Force 3.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 7.0N±0.4N for key 14.0mm x 28.0mm (pressure point)
Front Plate 1.5mm thickness super quality brushed stainless steel
Back Plate 2.0mm thickness super quality brushed stainless steel
Switch life more than 1 million of operations
G.W. 2.00KGs
METAL KEYBOARD ELECTRICAL DATA
Supply Voltage +5V DC ± 5%
Current Rating 30mA
EMC Standard EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Switch Contact Material Gold-on-Gold key switch technology PCB
Interface PS2, USB available
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature -20℃ to +65℃
Storage temperature -30℃ to +75℃
Operating RH 30-90%
Atmospheric pressure 60-106Kpa
Saline mist 96 hours, IEC 60512-6
Damp heat test at +40℃ 21 days, IEC 60512-6
Dry heat test at +85℃ 10 days, IEC 60512-6
INDUSTRIAL KEYBOARD RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level IP65 dynamic (front panel)
Vandal resistant IK09
Key Lifespan >1 million actuations
MTBF >20000H
MTTR <30min
APPLICATIONS Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.
