Dot Matrix IP67 Dynamic Vandal Proof Backlit Keypad For Bank Kiosk

Large Image : Dot Matrix IP67 Dynamic Vandal Proof Backlit Keypad For Bank Kiosk

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	IKB-MKB
Certification:	CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
Model Number:	K-TEK-B124KP-BL-BT-DWP

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	To be quoted
Packaging Details:	Each keyboard to one box, several boxes to one carton.
Delivery Time:	ASAP Within 2 weeks upon payment confirmed
Payment Terms:	Full payment in advance, Western Union, T/T, Paypal
Supply Ability:	3000psc/month

Contact Now

Dot Matrix IP67 Dynamic Vandal Proof Backlit Keypad For Bank Kiosk

Description

Keys:	16 Keys	Material:	Metal Stainless Steel
Key Travel:	0.45 Mm	G.W.:	0.8KGs
Key Life:	More Than 1 Million Of Operations	Switching Material:	Gold-on-Gold
High Light:	Dynamic Vandal Proof Backlit Keypad , IP67 Vandal Proof Backlit Keypad , Dot Matrix Industrial Metal Keyboard

DESCRIPTION:

16 keys compact format IP67 dynamic water proof and vandal proof Stainless Steel industrial keypad with industrial electronics controller shielded and protected via stainless steel housing, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input. Stainless steel key caps etched out via special professional way and filled with transparent epoxy for backlight out. With industrial backlight included(Red/blue/white optional). Top stainless steel plate with black titanium electroplated & sealing silicon gasket for easy & tight sealing and mounting to enclosure or panel, with threaded bolts under top stainless steel plate for top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

DIMENSIONS: 124.0mm x 98.0mm (front panel)

ELECTRICAL DATA:

Supply Voltage	+5V DC +/-5%
Current Rating	appr. 20mA
EMC Standard	It is compliance with the council IEC 61000-4-2:2008；IEC 61000-4-3:2006+AI:2007+A2:2010；IEC 61000-4-4:2004
EMI	EN 55022: 2010
EMS	EN 55024:2010
Lifespan	> 5 years
Switch Contact Material	Gold-on-Gold key switch technology PCB
Interface	dot matrix
OS	All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)

RELIABILITY

RoHS Compliant, CE and FCC, ESD

Protection Level: IP67 (front panel)

Vandal resistant IK09

Key Lifespan > 1 million actuations

MTBF > 20000H

MTTR < 30min

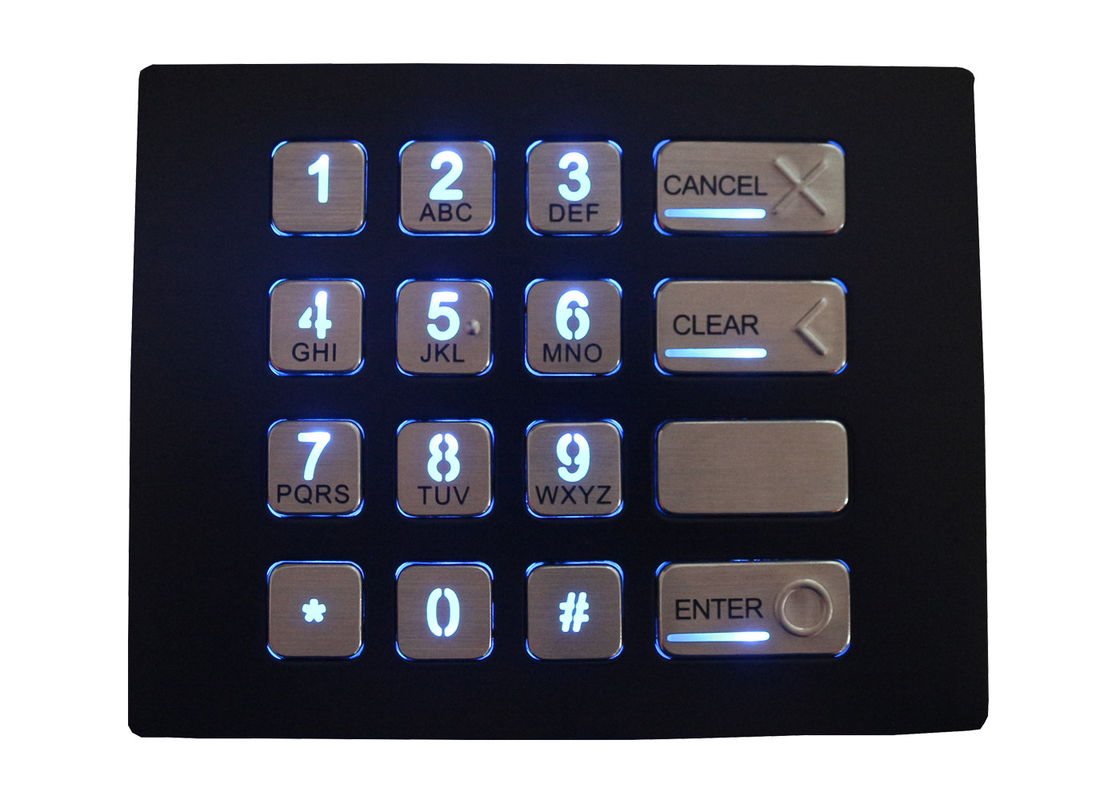

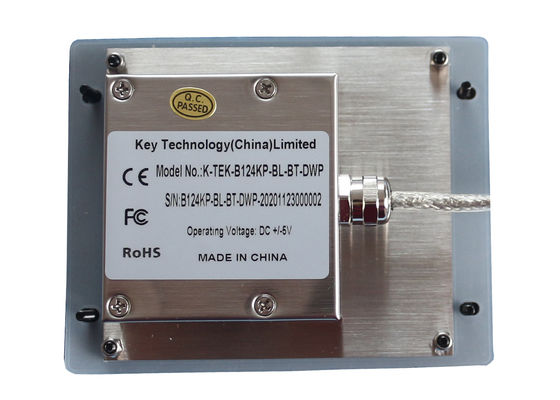

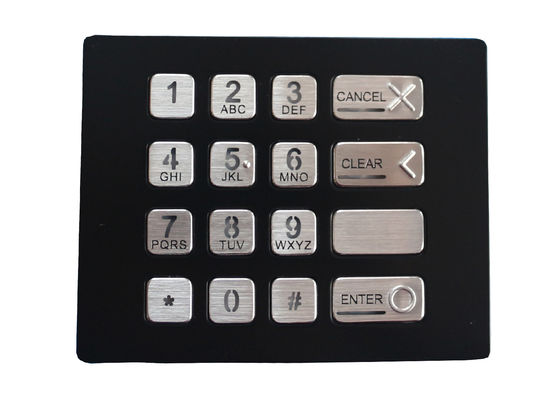

Actual photos:

Dot Matrix IP67 Dynamic Vandal Proof Backlit Keypad For Bank Kiosk 0

Dot Matrix IP67 Dynamic Vandal Proof Backlit Keypad For Bank Kiosk 2
